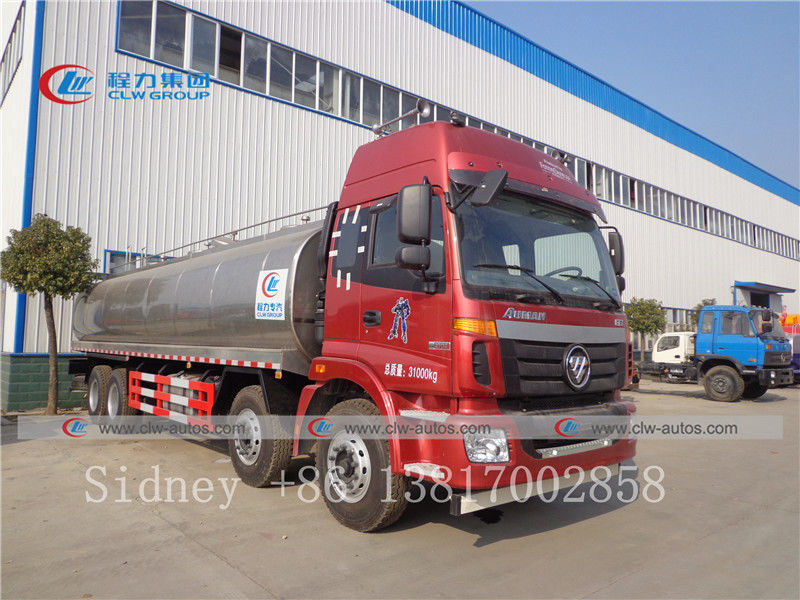

Foton Auman 8X4 30cbm Fresh Milk Transport Truck

تصویر بزرگ : Foton Auman 8X4 30cbm Fresh Milk Transport Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC BV SGS
شماره مدل:	CLW50G3

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	USD24,500-33,500
جزئیات بسته بندی:	کشتی برهنه، موم شده، رو-رو، کشتی فله
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ فوتون HOWO FAW ایسوزو و غیره	نوع درایو:	8X4، 12 چرخ
فرمان:	LHD، RHD	موتور:	دیزل، 310 اسب بخار
حجم مخزن:	24500 لیتر، 24.5 cbm، 30cbm، 30000 لیتر	ظرفیت:	20 تن 20 تن 30 تن 30 تن
ماده مخزن:	فولاد ضد زنگ 304-2B	لایه عایق:	فوم 80 میلی متری PU
مواد خارج از مخزن:	2 میلی متر 201	مواد مخزن داخلی:	4 میلی متر 304-2B
تغییر دمای متوسط:	کمتر یا برابر با 1 درجه در 24 ساعت	سوراخ:	DN500mm با لاستیک درجه مواد غذایی
لوگو:	لوگوی شرکت یا هر تبلیغی
برجسته کردن:	8X4 Milk Transport Truck,30cbm Milk Transport Truck,Foton Auman Milk Tanker Truck , 30cbm Milk Transport Truck , Foton Auman Milk Tanker Truck

Foton Auman 8X4 20, 000liters to 30, 000liters 30cbm Fresh Milk Tank Transport Truck Milk Tanker Trucks

Function:
Milk delivery truck( also called milk tank truck, milk transport truck, milk truck, stainless steel milk tanker, road milk tanker, bulk milk collection tanker, milk tanker) is a truck that transfer milk from farm to dairy factory.
We adopt stainless steel or aluminum alloy for the tanker body; tank interior and outside are polished completely. Additional cold keeping layer could be applied to keep milk from deterioration.
Milk tank truck can be devided into many compartments to transport different types of drinkable liquid, milk, ewe's milk...Every compartments are equipped with CIP cleaning function.
Description:
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.

Specifications:

Product Name	Foton auman 8×4 24500 liters milk tank truck
Cab	Single sleeper cab, two doors, rated passengers 2 or 3, with an A/C
Volume(L/m3)	24500L
Chassis	Brand	Foton
	Chassis model	BJ1312
	Drive type	8*4
	Tire	11.00 R20 with 1 spare tire
	Tire No.	12+1(spare)
	Braking System	air brake
	Transmission	Manual , 9 forward and 1 reverse
Engine	Model	CLW9DK310Q4
	Engine brand	Shanghai diesel engine co., LTD
	fuel type	diesel
	Horse Power(kw/hp)	228kw/310hp
	Displacement(ml)	8820ml
	Emission standard	Euro 2/3/4
Dimension & weight	Overall dimension (LWH/mm)	11875x2500x3720mm
	Axles No.	4
	Curb Weight(kg)	15270
	Max speed(km/h)	90
performance parameter	Transport medium	fresh ewe's milk, fresh cow milk, beer, juice, cold drinks, cooking oil, liquid syrup and other fresh food products
	Tank material	the inner material is 3-4 mm thickness 304-2B edible stainless steel plate, the middle insulation layer is 50-80mm thickness polyurethane foam, the external material is 2mm thickness 304 stainless steel plate. The semi-trailer manhole polyurethane foam is 60 mm thickness.
	unattached warehouse	One or more
	Standard configuration	1. Each warehouse has separated discharge outlet, feeding mouth and PIC cleaning device. 2. PIC cleaning device include cleaning rod (or cleaning ball),Cleaning tube (Φ 38 mm), four or more rotary cleaning nozzles. 3. According to the volume of tank it has different default warehouse number. Of course warehouse number can be set according to your requirements.

Reference Photos:

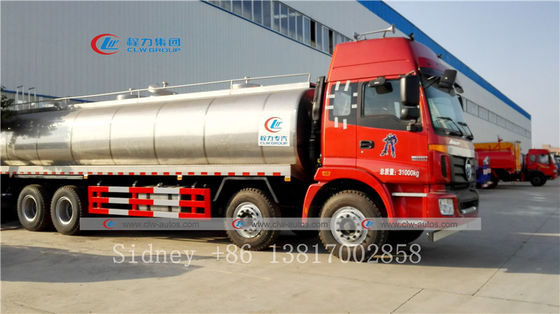

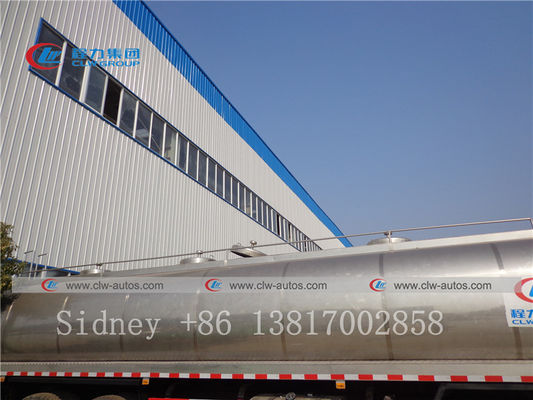

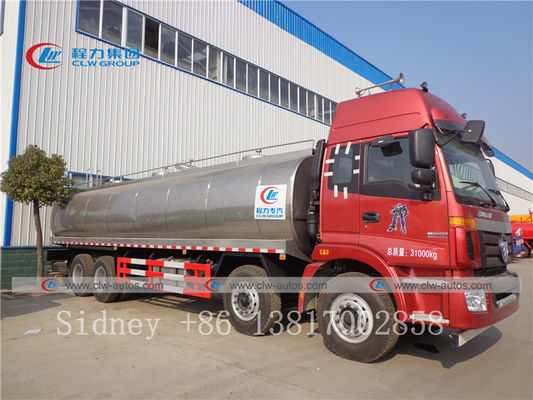

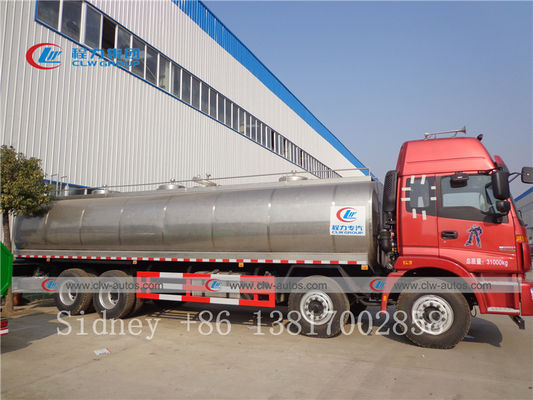

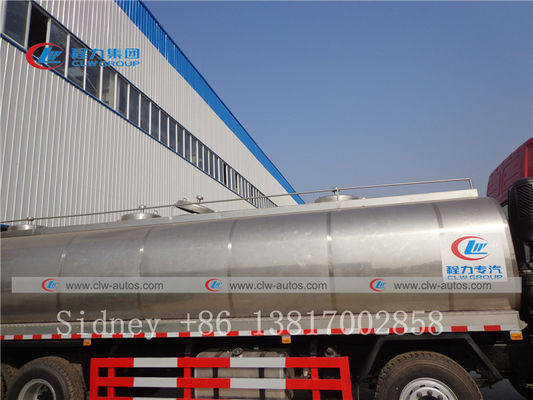

Foton Auman 8X4 30cbm Fresh Milk Transport Truck 0

Parts photos:

Work shop:

Our Service:

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ:

Q1: What kinds of milk delivery truck I can order from your company?
A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer our.

Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?
A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
