FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

تصویر بزرگ : FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC SGS BV
شماره مدل:	CLW515GF

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده در حساب
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	DONGFENG، ISUZU، FAW، HOWO، JAC، JMC	ظرفیت بکسل:	۴ تن، ۴ تن، ۶ تن، ۷ تن، ۸ تن، ۶ تن، ۷ تن، ۸ تن، ۶ تن، ۷ تن، ۸ تن
رنگ:	سفید، زرد، آبی به عنوان سفارشی	فرمان:	LHD، RHD، درایو سمت راست، درایو چپ
موتور:	170 اسب بخار، 185 اسب بخار، 160 اسب بخار، 210 اسب بخار	نوع ویرانگر:	بالابر چرخ، یکپارچه، تخت مسطح، آسانسور تخت تخت
برجسته کردن:	4X2 Recovery Tow Truck,FAW Recovery Tow Truck,FAW Wrecker Tow Truck , FAW Recovery Tow Truck , FAW Wrecker Tow Truck

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

Description

1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.

Specification

General Technical Parameters
Overall Dimension			5995x2300x2360(mm)
Gross Vehicle Weight			4495kg
Curb Weight			3795kg
Chassis Specification
Chassis Parameters	Chassis Brand		FAW
	Cabin		Single, Left/right Hand Driving
	Engine	Model	WP2.3Q110E50, 4 Cylinders
		Power	80KW/110HP
		Emission Standard	EURO 5
		Displacement	2.290L
		Fuel Type	Diesel
	Gearbox		5 Forward & 1 Reverse Gear
	Front and Rear Axle Load		3T/6T
	Wheel Base		3300(mm)
	Overhang( Front/Rear)		1015/2450(mm)
	Angle(Approach/departure)		24/9(°)
	Brake System		Air Brake
	Steering Gear		Power Assistant
	Tire		7.00R16, 6 Pieces with 1 Spare Tire
	Maximum Speed		100(km/h)
Superstructure
Flatbed	Dimensions		4200x2300 (mm)
	Max. Loading Weight		4000(kg)
	Operating Stroke		2700 (mm)
	Min. Angle of Slope		8(°)
	Platform Height from the Ground		1070(mm)
Winch	Quantity		1pc
	Winch Rating Pulling Capacity		4000 (kg)
	Length of Steel Cable		25 (m)
Hoisting Organ	Rating Under-Pulling Capacity		6000 (kg)
	Rating Under-Hoisting Capacity		2000 (kg)
	Fully Extended Max Under-Hoisting Capacity		1600 (kg)
	Max Under-Hoist Useful Length		1640 (mm)
Remarks	1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars

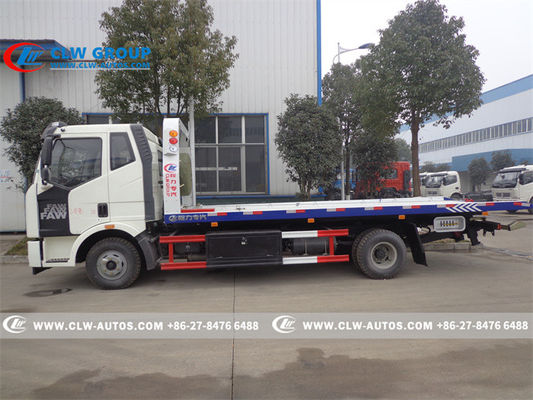

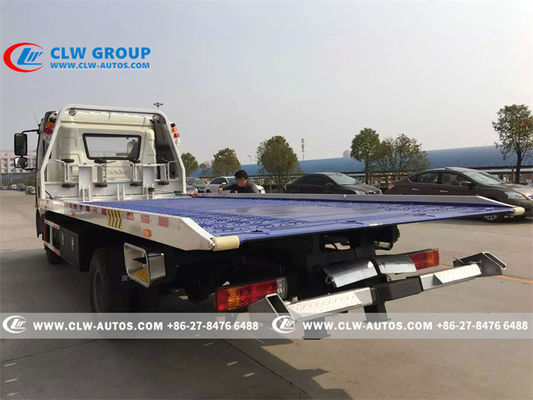

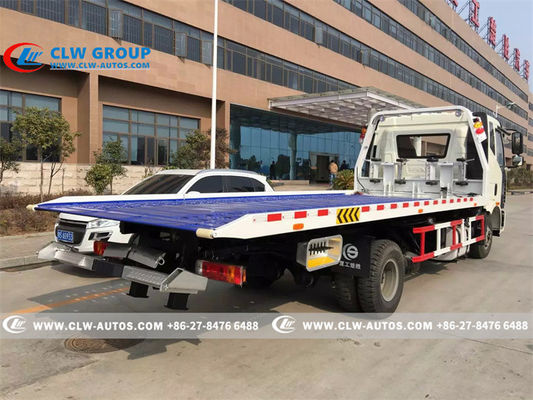

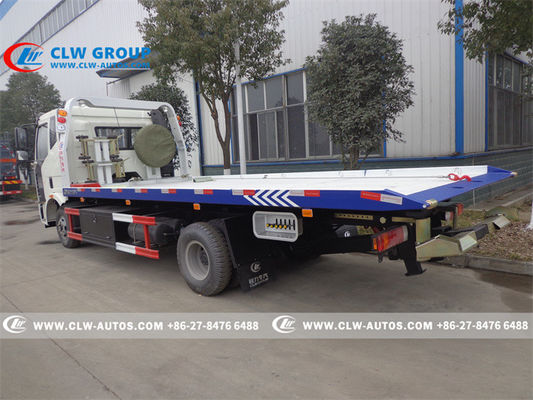

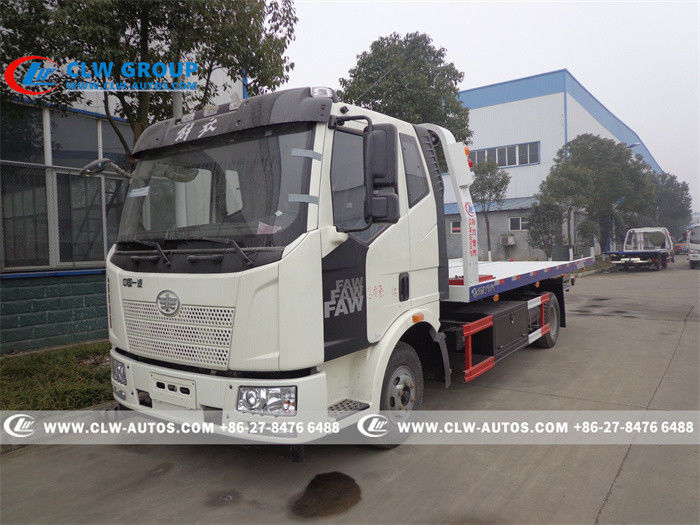

Reference photos

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 0

Structure

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Certificates

Factory overview

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 7

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of emergency towing truck I can order from your company?

A: There are various sizes of emergency towing truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied emergency towing truck to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
