Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck

تصویر بزرگ : Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC SGS BV
شماره مدل:	CLW5071FF

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده در حساب
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	DONGFENG، ISUZU، FAW، HOWO، JAC، JMC	ظرفیت بکسل:	3 تن، 4 تن، 5 تن، 5 تن، 3 تن، 4 تن، 5 تن،
رنگ:	سفید، زرد، آبی به عنوان سفارشی	فرمان:	LHD، RHD، درایو سمت راست، درایو چپ
موتور:	120 اسب بخار	نوع ویرانگر:	یک بکسل-دو-یک-بکسل-یک
برجسته کردن:	4X2 Flatbed Wrecker Truck,140HP Flatbed Wrecker Truck,Dongfeng Tianjin Flatbed Recovery Truck , 140HP Flatbed Wrecker Truck , Dongfeng Tianjin Flatbed Recovery Truck

Dongfeng Tianjin 140HP 5-7tons Flatbed Wrecker Truck 4X2 Towing and Recovery Truck

Product Description

1) 5-7Tons Wrecker Truck for Towing Broken Cars or Equipments.

2) Dongfeng Brand Chassis for Euro 2 / Euro 3 / Euro 4 / Euro 5 Emission

3) Spare parts of 5-7tons wrecker tow truck:

Italy brand multi-way valve and balance valve;
Gernamy Roxroth technology hydraulic cylinder and joint;
International Brand Sealing elements;
Strengthed Checked platform.

Specification

Classification	Item		Unit	Parameter
Vehicle	Vehicle model			Dongfeng flatbed wrecker truck
	Overall dimensions		mm	7680,8680×2480×2700
	Tablet Size			6400×2480
	GVW		kg	10000
	Curb weight			6680
	Traction system			4×2
	Transmission			6-speed with over drive
	Max speed		km/h	90
Chassis	Chassis model			DFH1100B
	Number of springs			8/9+7
	Wheel base		mm	4,500
	Tire specification			8.25R16
	Number of tires			6+1 spare
	F/R track base		mm	1800/1800
Engine	Engine model			EQH140-52
	Manufacturer			Dongfeng Commercial Vehicle CO.,LTD
	Engine horse power		hp	140
	Displacement		ml	4752
	Emission standard			Euro 2-5
Lift function
Rated lift quality		6000 kg		Corbel telescopic stroke	1200 mm
Max effective length		1300 mm		Max tractor speed	40 km/h
Tablet Agency
Tablet Size(LxW)		6400×2480mm		Min inclination angle	10°
working stroke		2700 mm		Max load mass	5000 kg
Winch parameters
Number		1		Rated traction mass	5000 kg
Rope length		25 m		Strand speed	8 m / min

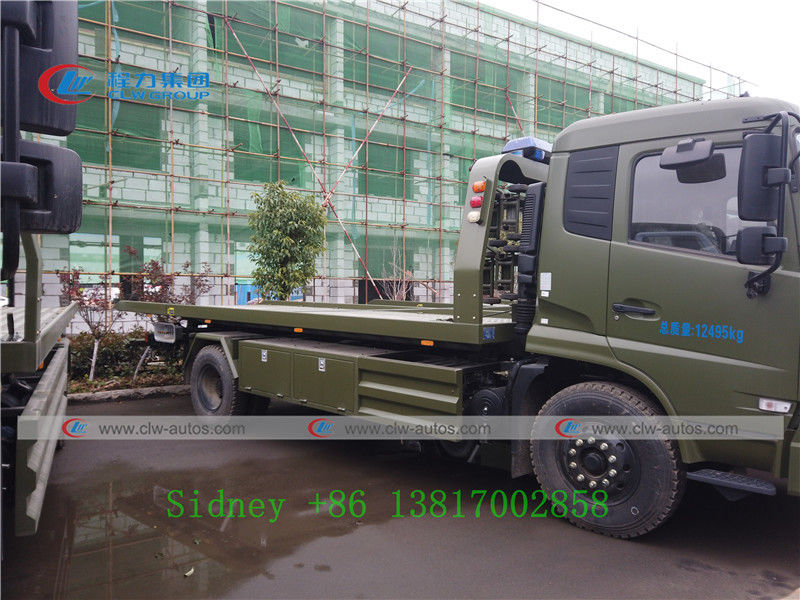

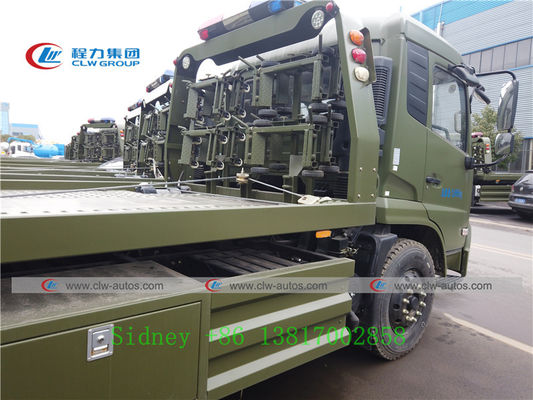

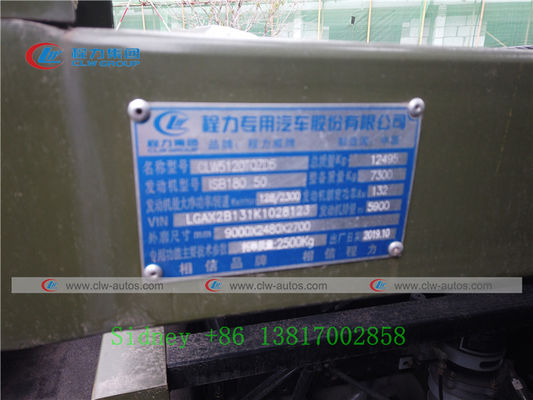

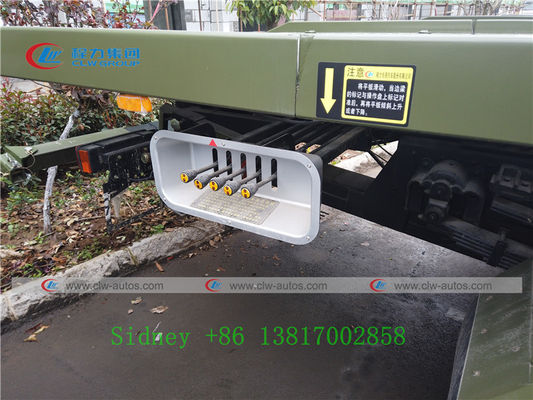

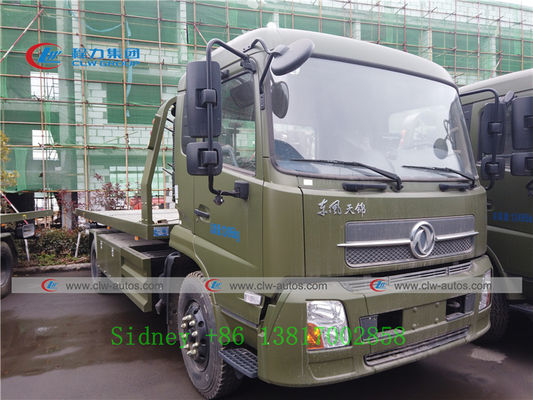

Reference photos

Structure drawing

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Factory overview

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of wrecker trucks I can order from your company?

A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
