Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck

Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck
Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck

تصویر بزرگ :  Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: CCC BV SGS
شماره مدل: CLW5049SK3

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: USD14,500-23,500
جزئیات بسته بندی: کشتی برهنه، موم شده، رو-رو، کشتی فله
زمان تحویل: 30 روز پس از دریافت سپرده
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
برند شاسی: دانگ فنگ فوتون HOWO FAW ایسوزو و غیره نوع درایو: 4X2، 6 چرخ، 6 چرخ
فرمان: LHD، RHD موتور: دیزل 120 اسب بخار
حجم مخزن: 6000 لیتر، 6 سی بی متر، 8 سی بی متر، 8000 لیتر ظرفیت: 6 تن 6 تن 8 تن 8 تن
ماده مخزن: فولاد ضد زنگ Q304-2B لایه عایق: فوم 80 میلی متری PU
مواد خارج از مخزن: 2 میلی متر Q304L مواد مخزن داخلی: 4 میلی متر 304-2B
تغییر دمای متوسط: کمتر یا برابر با 1 درجه در 24 ساعت سوراخ: DN500mm با لاستیک درجه مواد غذایی
لوگو: لوگوی شرکت یا هر تبلیغی
برجسته کردن:

Stainless Steel Tank Milk Delivery Truck,8m3 Milk Delivery Truck,Dongfeng Milk Tanker Truck

,

8m3 Milk Delivery Truck

,

Dongfeng Milk Tanker Truck

Dongfeng 6-8m3 stainless steel tank Milk Delivery Truck Milk Tanker Truck milk transport truck

Function:

Milk delivery truck( also called milk tank truck, milk transport truck, milk truck, stainless steel milk tanker, road milk tanker, bulk milk collection tanker, milk tanker) is a truck that transfer milk from farm to dairy factory.

We adopt stainless steel or aluminum alloy for the tanker body; tank interior and outside are polished completely. Additional cold keeping layer could be applied to keep milk from deterioration.

Milk tank truck can be devided into many compartments to transport different types of drinkable liquid, milk, ewe's milk...Every compartments are equipped with CIP cleaning function.



Description:
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.



Milk Tanker Truck Parameters
General Chassis Brand Dongfeng
Approx. Dimension 6700×2200×2600mm
GVW 6800 Kg
Curb weight 4350 kg
Cab Cab Capacity 2 people allowed
Chassis Drive Type 4x2, left hand drive/
right hand drive
Fuel Type Diesel
Power 95kw/130 HP
Displacement 4760ml
Emission Standard Euro III or EURO IV or Euro V
Wheelbase/No.of axle 3800mm / 2
Tyre Specfication 7.50-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Tanker Body Capacity 6000-8000liters
Material 1.The inner is made of 4mm 304 2B Stainless Steel
2.the middle layer of the tank is made of 80mm thick polyurethane
3. The outer layer of the tank is made of stainless steel.
The temperature Medium temperature change ≤1°C during 24 hours.
Automatic cleaning system Automatic cleaning system is adopted in the tank, and the cleaning device rotates 360degress to ensure no residual milk.
Valve and pipeline All valves and pipeline are made of stainless steel

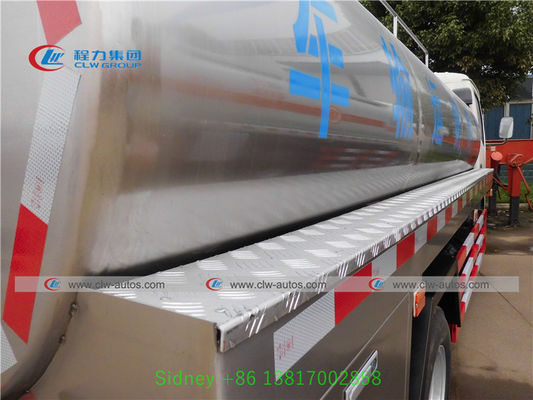

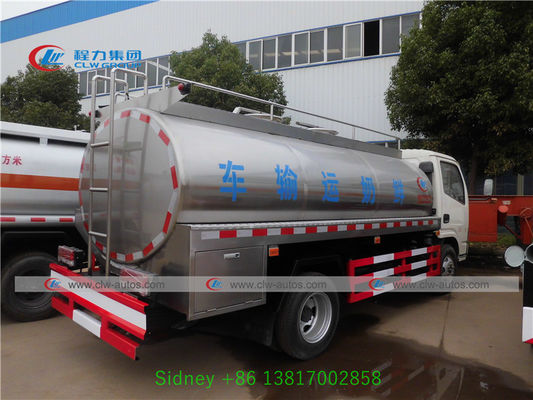

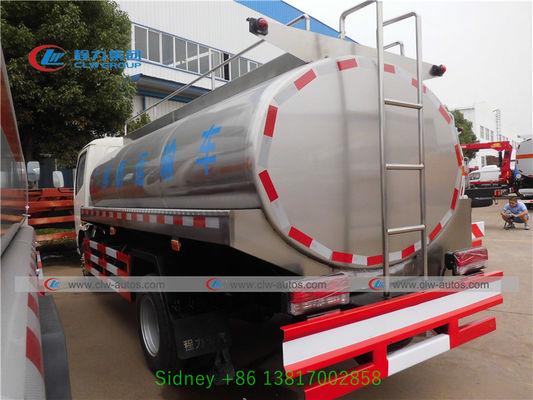

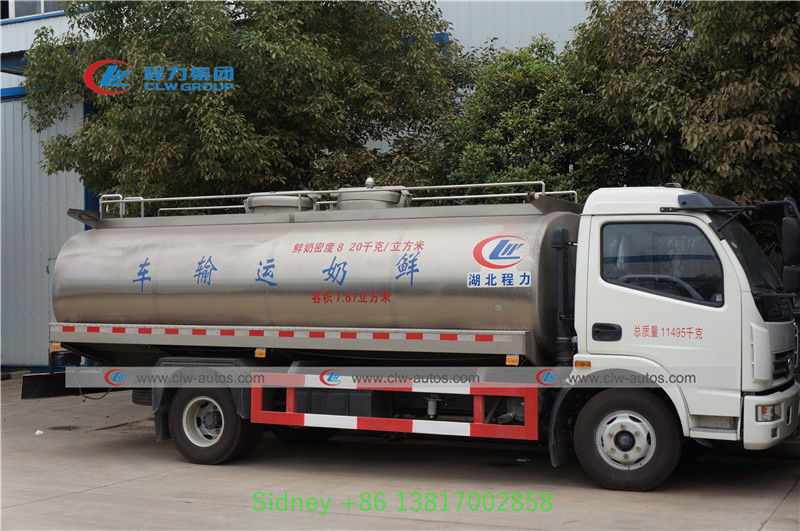

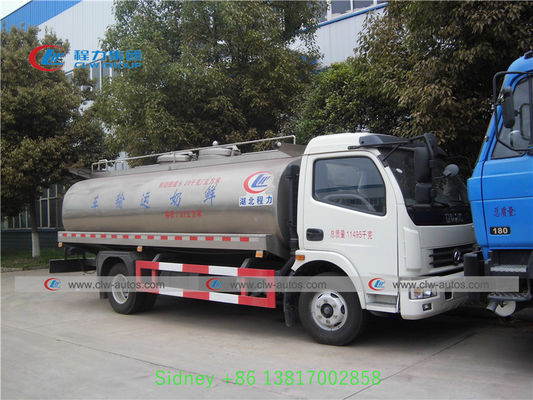

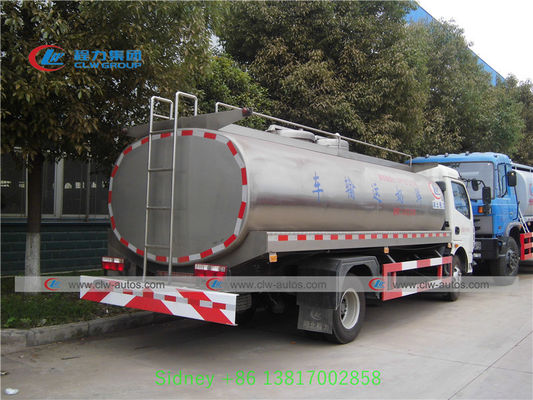

Reference Pictures of milk delivery truck



Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck 0Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck 1Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck 2Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck 3Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck 4Dongfeng 4x2 6m3 8m3 Stainless Steel Tank Milk Delivery Truck 5





Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment





FAQ



Q1: What kinds of milk delivery truck I can order from your company?

A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.



Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?

A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.



Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
