Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road

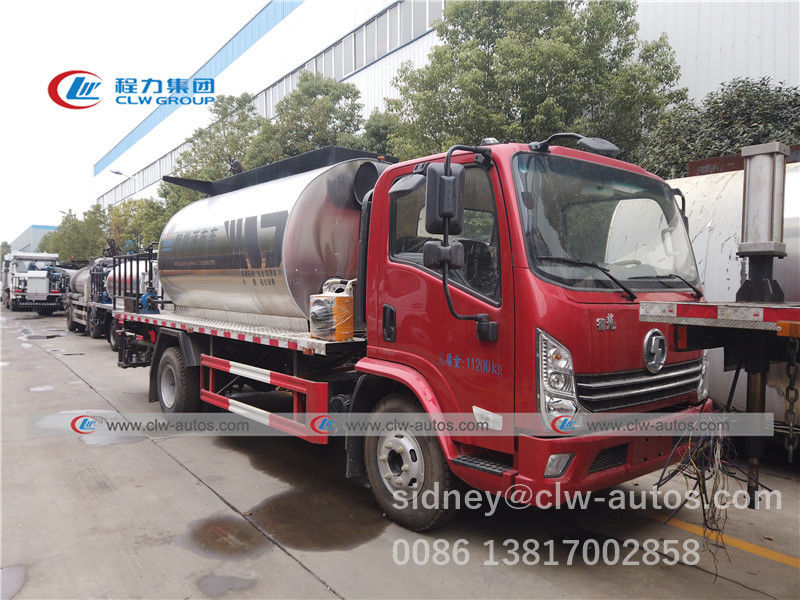

تصویر بزرگ : Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC BV SGS ISO
شماره مدل:	CLW5074SX2

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	کشتی برهنه، موم شده، رو-رو، کشتی فله
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

اندازه کلی:	599522002400mm	تایپ کنید:	کامیون
ظرفیت:	5 تن، 5 تن، 5 تن، 6 تن، 6 تن، 6 تن	ماده مخزن:	فولاد ضد زنگ Q304
لایه عایق:	سه لایه	عرض سمپاش:	4500 میلی متر
حجم پاشش آسفالت:	0.25~3.5L/m2	سرعت کار:	1.5 تا 7 کیلومتر در ساعت
تعداد نازل های پاشش:	36	حجم مخزن:	5 سی بی متر، 5000 لیتر، 6 سی بی متر، 6000 لیتر
برجسته کردن:	6T Bitumen Spreader Truck,5800L Bitumen Spreader Truck,Shacman 4x2 Asphalt Distributor Sprayer Truck , 5800L Bitumen Spreader Truck , Shacman 4x2 Asphalt Distributor Sprayer Truck

Shacman 4x2 5800Liters Bitumen spreader truck Road Construction Machine Asphalt Distributor Truck for sale

Product Description

1) Spraying asphalt and bitument:heated asphalt, hot modified asphalt, cutback asphalt, emulsified asphalt

2) System of 5-10tons bitumen distributor truck

manual/automatic control of spraying volume and working width,control of single spraying nozzle
control in cabin or rear working platform
automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
Heating system(10~15℃/h) to improve heating efficiency

3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

4) Italy burner for automatic fire and temperature control

Specifications of asphalt sprayer Truck

Product Name	Asphalt spreader truck
Volume of Tank	5.8CBM/5.8m3
Overall Dimension	599522002400mm
Tank Size	Oval shape,320019501500mm(lengthlong axisshort axis)
Thickness of Insulation Layer	100mm insulation layer in middle of tank body
Gross Weight	7360kg
Curb Weight	4320kg
Payload	4000kg
Wheelbase	3300mm
Fuel Type	Diesel
Engine	CY4100,70KW/95HP,4 cylinder in line,3771ml,turbocharged intercooled,water cooling
Transmission	5 front gears and 1 rear gear
Brake	Automatically air cut-off brake
Axle & Tire	2 axle, 6* 7.00-16 Linglong brand tires
Max speed	90km/h

Bitumen Spray System Options (Please select which type you need when inquiry)
Type	Common Type	Standard Type	Smart Type
Model of asphalt pump	QGB270(300L/min)	QGB680(680L/min)	QGB680(680L/min)
Origin of asphalt pump	China made	China made	China made
Suitable Tank Volume	6CBM	6CBM	6CBM
Medium	Dilute/Emulsify asphalt	Hot/Dilute/Emulsify asphalt	Hot/Dilute/Emulsify asphalt
Hydraulic System	Shanxi YUCI	Shanxi YUCI	Shanxi YUCI
Proportional Valve	-	-	Taiwan EFBG-03-160-HF
Reversing Valve	-	-	√
Relief Valve	-	-	√
Model of Hydraulic Pump	CBQ550-L	CBQ550-L	CBQ550-L
Model of Hydraulic Motor	05-110-BD31	05-110-BD31	05-110-BD31
Radiator	RISHENG brand	RISHENG brand	RISHENG brand
Control System	Manaul	Rear work platform	German Siemens CLW-39-01
Control Type	1-control-1	1-control-1	Computer smart control, 1-control-1
Operation Person Number	2 persons	2 persons	1 persons
Asphalt Nozzle Number	11	30~39	30~39
Heating Type	Heat conducting oil automatically heating
Conducting Oil	Hebei,China
Burner	Italy import G10
Power of Engine	6KW
Spraying Capacity	0.8L/min	0.2~3L/min	0.2~3L/min
Spraying Error	/	±	±2%
Spraying Width	4.5m	4.5	4.5~6m

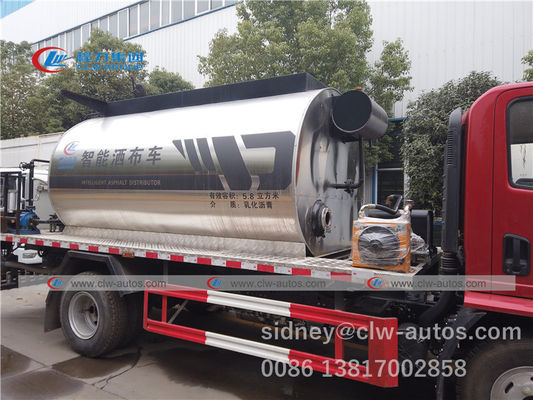

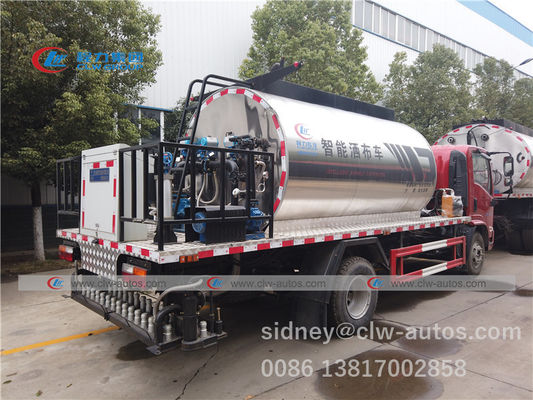

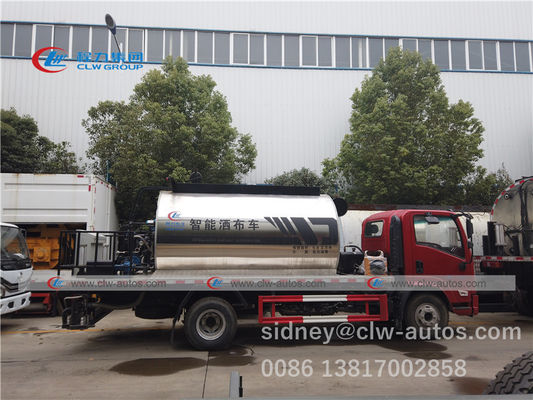

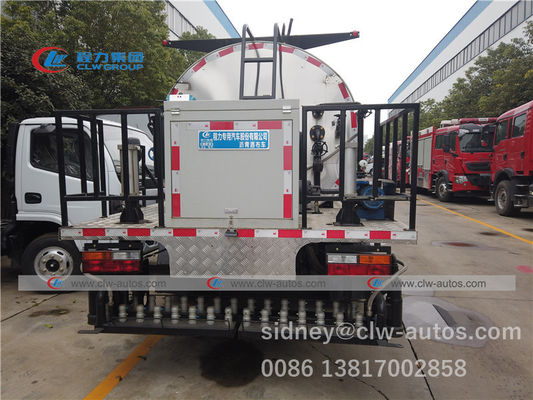

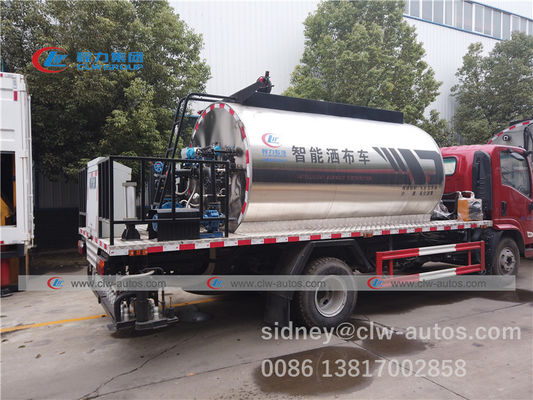

Reference Pictures of asphalt sprayer Truck

Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road 0

Key parts of asphalt sprayer Truck

Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road 4

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of asphalt sprayer Truck I can order from your company?

A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.

Q2: What is your production standard of asphalt sprayer Truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

A: Our asphalt sprayer Truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
