5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump

تصویر بزرگ : 5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	ISO, CCC
شماره مدل:	CLW5255WYXWC

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	35520 usd/unit~59660 usd/unit
جزئیات بسته بندی:	بسته برهنه با کشتی فله ارسال می شود
زمان تحویل:	ظرف 30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، D/P، T/T، Western Union، MoneyGram، D/A
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند کامیون:	دانگ فنگ، شاکمن، سینوتروک هوو، CAMC، فاو، کامیون پمپ خلاء ISUZU	مدل رانندگی:	کامیون پمپ خلاء LHD، RHD
موتور:	موتور دیزلی 266 اسب بخار، 290 اسب بخار، 336 اسب بخار، کامیون پمپ خلاء 371 اسب بخار	مواد:	کامیون پمپ خلاء فولاد کربن Q235
اندازه تانکر:	کامیون پمپ خلاء 16cbm 18cbm 20cbm	ظرفیت بارگیری:	کامیون پمپ خلاء 16 تنی 18 تنی 20 تنی
ضخامت تانکر:	کامیون پمپ خلاء 5 یا 6 میلی متری	پمپ خلا:	پمپ چینی، BP، Jurop، کامیون پمپ خلاء مونو کایزر
عمق مکش:	7 متر	فاصله مکش:	کامیون پمپ خلاء 50 تا 100 متر
متوسط:	کامیون پمپ خلاء فاضلاب / لجن / مکش سپتیک
برجسته کردن:	Moro Kaiser Pump Sewer Cleaning Truck,336HP Sewer Cleaning Truck,5000 Gallons Vacuum Cleaner Truck , 336HP Sewer Cleaning Truck , 5000 Gallons Vacuum Cleaner Truck

5000 Gallons 20m3 Howo 336hp Vac Sewer Cleaner Vacuum Pump Truck With Moro Kaiser Pump
Description-- Vacuum Pump Truck(also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Vacuum Pump Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

-- Vacuum Pump Truck Truck tanker material optional for carbon steel or stainless steel 304;-- Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro PM110W imported brand;-- Suction speed less than 10min and and discharge speed less than 8 min;-- horizontal suction distance: within 80 meters;-- Vertical suction depth:within 9 meters;-- Large horsepower 290hp,336hp or 371hp howo truck chassis;

Reference picture

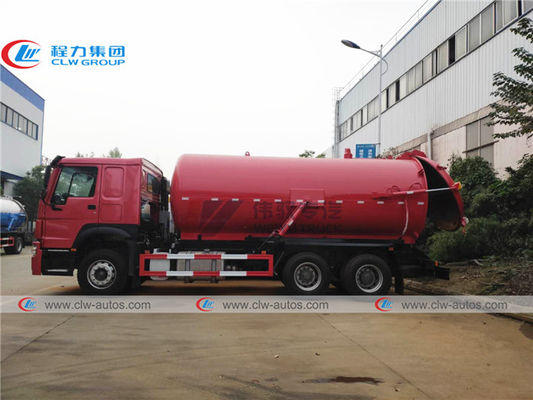

side view of howo 20000L Vacuum Pump Truck

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 0

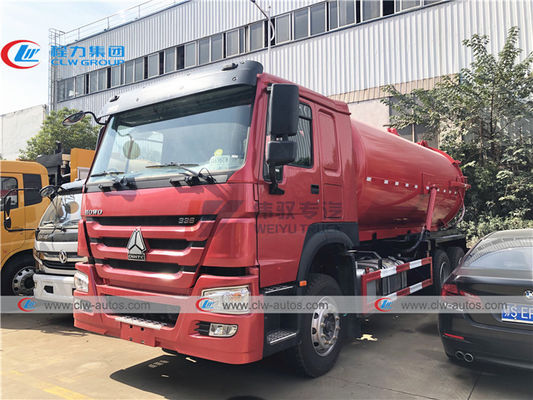

front side view of howo 20000L Vacuum Pump Truck

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 1

Italy Moro Kaiser PM110W vacuum pump of howo 20000L Vacuum Pump Truck

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 2

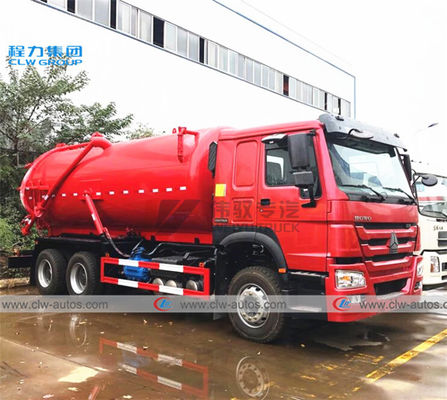

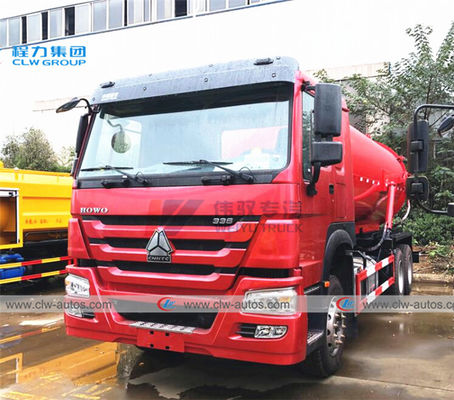

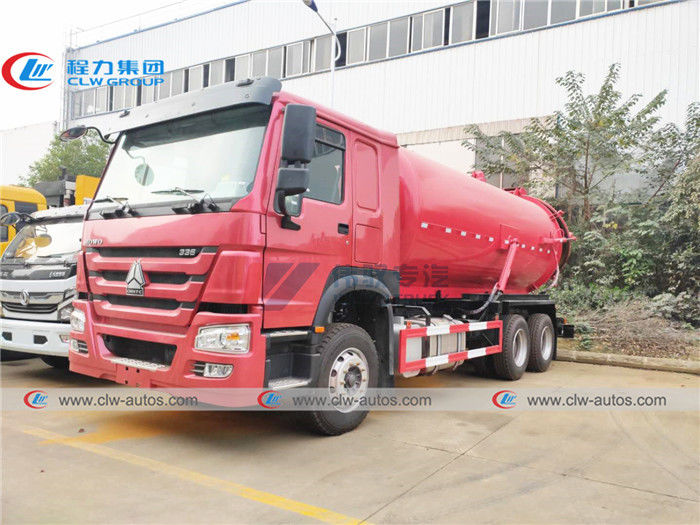

Other design of howo 20000L Vacuum Pump Truck

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 3

optional for Chinese vacuum pump of howo 20000L Vacuum Pump Truck

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 4

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 5

Specification of howo 20000L Vacuum Pump Truck

Product Information
Product		Sewage suction truck
Brand Name		SINOTRUK-HOWO
Chassis Model		ZZ1257N4647
Place of Origin		Suizhou, China
Color		Any color will be available
Product Specifications
Engine Power		249kw/336hp
Overall dimension(LWH)		1035024963800
Effective volume		18m3/20m3
Wheelbase		4600+1350mm
Front overhang		1500mm
Rear overhang		2900mm
Tread		2022/1830mm
Max speed		90/102km/h
Vehicle gross weight		25000kg
Front axle		HF7
Rear axle		ST16
Transmission		10 speeds forward and 2 reverse
Tire		295/80R22.5, 10+ 1 spare
Cabin		HW76, one sleeper with AC
Diameter of suction tube		Φ100mm
Suction depth		6m
Vacuum pump		Jurop pump/Mono Keiser/BP/Chinese pump SK-12
Absorb pipe		4” 6meter black pipe
Tank	Material	Carbon steel Q235-B
	Thickness	Shell cover:8mm, Tank body:6mm
	Water tank	20L

structure of howo 20000L Vacuum Pump Truck

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 6

Vacuum sewer pump in stock

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 7

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 8

Related product

howo 266hp 10000L Vacuum Pump Truck

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 9

right hand drive 10000L Vacuum Pump Truck for kenya

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 10

shacman F3000 20000L Vacuum Pump Truck

5000 Gallons Howo 336HP sewer cleaning truck With Moro Kaiser Pump 11

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
