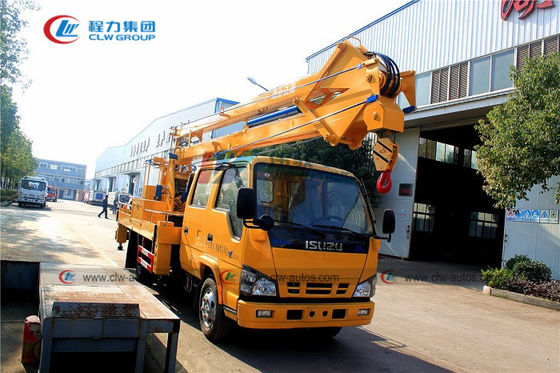

ISUZU 4X2 Hydraulic Foldable Knuckle Boom Truck For High Altitude Operation

همه محصولات

کامیون تانکر گاز مایع (109)

مخزن ذخیره گاز LPG (155)

کامیون تحویل سوخت (153)

کامیون فشرده سازی زباله (172)

کامیون های دفع زباله (93)

کامیون پاک کننده جاده (66)

کامیون مکنده خلاء (145)

کامیون آبی (102)

کامیون باکس یخچال دار (91)

کامیون بیلبورد LED (36)

ماشين کشنده (78)

کامیون بلند کننده هوایی (40)

جرثقیل تلسکوپی سوار بر کامیون (82)

کامیون آتش نشانی (67)

کامیون‌های میکسر بتن آماده (24)

کامپران سنگین (28)

تانک ها، کامیون ها و تریلرها (174)

کامیون کشنده (21)

بهترین محصولات

Isuzu 98HP Straight Boom Aerial Work Platform Truck

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها

چت IM آنلاین در حال حاضر

ISUZU 4X2 Hydraulic Foldable Knuckle Boom Truck For High Altitude Operation

تصویر بزرگ : ISUZU 4X2 Hydraulic Foldable Knuckle Boom Truck For High Altitude Operation

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, SGS, BV
شماره مدل:	CLW5070BPG

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	Dongfeng، Howo، JMC، ISUZU و غیره	ارتفاع عملیات:	18 متر، 20 متر، 22 متر
ظرفیت سطل:	200 کیلوگرم	نوع بازوی کار:	نوع H
حداکثر ارتفاع عملیات:	20 متر	حداکثر برد عملیاتی:	8-9 متر
مارک موتور:	کامینز، یوچای، چائوچای و غیره	Logo and Painting:	As per customer's requirements
زمان تحویل:	30-35 روز کاری	گارانتی:	1 سال
برجسته کردن:	Foldable Knuckle Boom Truck,Hydraulic Knuckle Boom Truck,ISUZU High Altitude Operation Truck , Hydraulic Knuckle Boom Truck , ISUZU High Altitude Operation Truck

ISUZU 4X2 12m14m16m18m20m22m hydraulic Foldable Knuckle Boom Truck Aerial Work Platform High Altitude Operation Truck

Product Description
1. Imported electro-hydraulic ration control valve, step less speed regulation
2. Ground & basket electro-hydraulic control.
3. Little folding beam, outreach widely
4. Large load capacity of platform
5. Telescopic lifting beam, higher lifting height from 12m to 22m.
6. Rotate degree 360 degree. ( left or right)
7. Function of position restriction, alarm in dangerous working status, high security performance
8. Large span of triggers, higher stability, triggers can be operated simultaneously or respectively
9. Urgent power.
10. Inter-lock performance, safe and reliable operation.
Product Advantage
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design

Product Specification

Parameter	Overall dimension (Lengthwidthhigh)	(mm)	9500250031500
	Total Mass	(kg)	8500
	Kerb Mass	(kg)	8050
	Wheel base	(mm)	4175
	Front/rear tract base	(mm)	1385/1425
	Approach/rear angle		27/11
	Max speed	(km/h)	95
	Fuel type		diesel
Engine	Engine type		ISUZU
Engine	Displacement standard		EURO 4
Chassis	Chassis type		isuzu
	Drive system		4x2
	Tire type		8.25-16
	Number of tire		6
	Front/rear axle loading(kg)		1015/2025
	passengers		2+3
	Cabin		Single, with 2 passengers allowed, with Air conditioner
Special parameter	Working platform rating loading	(kg)	200
	Working Height	(m)	22
	Max working radius	(m)	9.67
	Boom type		three section knuckle arm
	Max hook height	(m)	9.9
	Loading of hook	(kg)	800-1000
	Max rotation angle	(°)	360

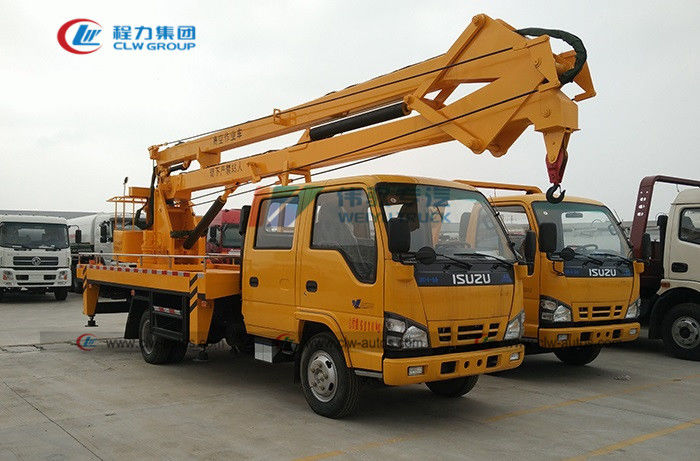

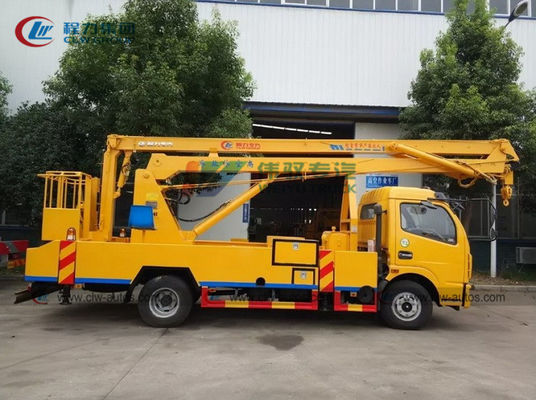

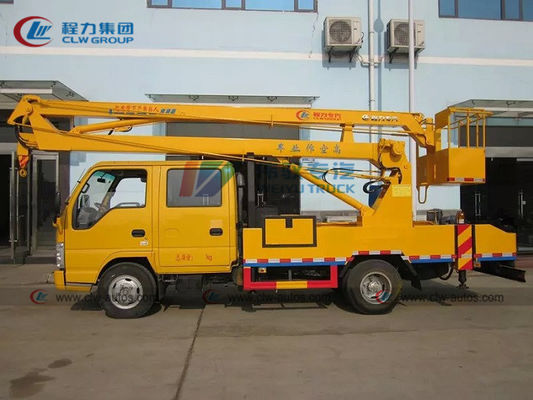

Reference Photos
ISUZU 4X2 Hydraulic Foldable Knuckle Boom Truck For High Altitude Operation 0

Main Structure

Main Details

Working Scene

Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of aerial platform truck I can order from your company?
A: We can supply various sizes and types of aerial platform truck with different operation heights and chassis brands. We will recommend you the suitable product.

Q2: Have you supplied aerial platform truck to any overseas companies?
A: Yes, with needs of overseas companies or government project, we offered aerial platform truck to more than 50 countries and regions, and most of them are African, Southeast Asian, and South American countries.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
