China HOWO 18m3-20cbm Compactor Refuse Transport Trucks 6*4 Compressed Garbage Waste Collection Dustcart Truck
Product Description
The howo rear loader garbage compactor truck (also called howo garbage compressed truck,howo garbage compactor truck,sinotruk compactor garbage truck,howo waste recycling truck,garbage collect truck,howo skip loader garbage truck,howo waste truck) is composed of a sealed garbage box, a hydraulic system and an operating system. The compressed garbage truck box is sealed and it's self-compression and self-dumping.And hydraulic control systems are Siemens PLC electric control and manual control. The lower part of the compression box is equipped with a sewage collection box to compress the sewage in the garbage and the liquid sewage can flow into it and unload it. Garbage can be discharged, reducing secondary pollution. It adopts domestic well-known brand hydraulic cylinders, Guangdong Tianhe hydraulic oil pipes, Zhongmei Duolu valve, and Hebei national oil pump. The compressed garbage truck is with the advantages of high pressure, good sealing, convenient operation and safety.
The howo rear loader garbage compactor trucks are suitable for waste management companies which using for city garbage collection & transport: the loaded garbage can be compressed and crushed to increase the density and reduce the volume, which greatly improves the efficiency of garbage collection and transportation.Our garbage truck has the characteristics of reliable quality, low failure rate, convenient maintenance and low operating cost
--The thickness of the dustbin is 5 mm, the thickness of the bottom plate is 6 mm
--The effective volume is 16~20 cubic meters.
--The arc-shaped or square box is available.
Product Advantages
1--garbage truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of rear loader garbage compactor truck : option for 3-20m3 compressed garbage truck
6--Steering wheel of rear loader garbage compactor truck : both left and right hand drive,meet the needs of different countries
7--Emission standard of rear loader garbage compactor truck : option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 compressed garbage truck
8--Truck chassis of rear loader garbage compactor truck : option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...
Product Specification
| General Technical Parameters |
| Overall Dimension |
8350*2490*3250(mm) |
| Gross Vehicle Weight |
15800(Kg) |
| Curb Weight |
9850(Kg) |
| Chassis Specification |
| Chassis Brand |
Dongfeng |
| Drive model |
4*2 |
| Cabin |
Single Row, LHD, with air condition, audio system, and USB, etc. |
| Number of Passengers |
2 |
| Engine |
Model |
Cummins 180HP, 4-stroke direct injection, 4-cylinder in-line, intercooled supercharging, withABS. |
| Power |
132KW/180HP |
| Emission standard |
EURO 3 |
| Displacement |
4557(ml) |
| Fuel type |
Diesel |
| Gearbox |
6Forwards & 1Reverse, manual operation, with power steering. |
| Brake System |
Oil break |
| Wheel Base |
4700mm |
| Front/Rear Axle Loading |
8000/9000(Kg) |
| Approach/Departure Angle |
24/12° |
| Tire |
9.00R20, 6pc with 1 spare tire |
| Max Driving Speed |
98(km/h) |

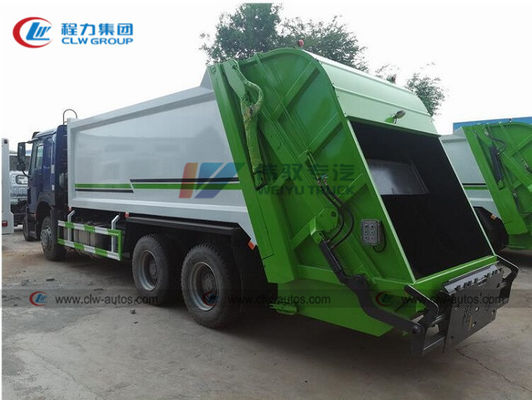

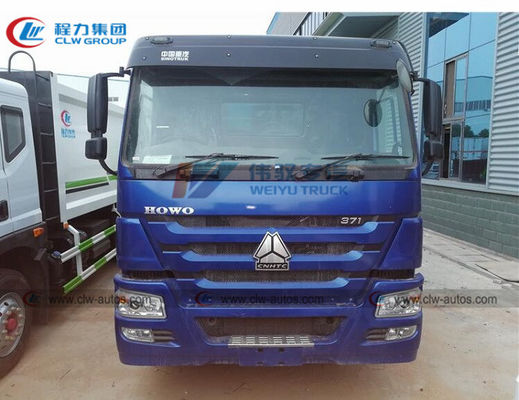

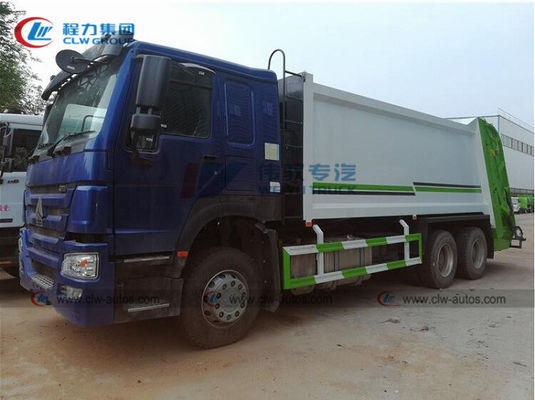

Reference Photos
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of compactor garbage truck I can order from your company?
A: We can supply different size compactor garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of compactor garbage truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for compactor garbage truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
