Dongfeng Left Hand Driving 8 Tons Garbage Compactor Truck

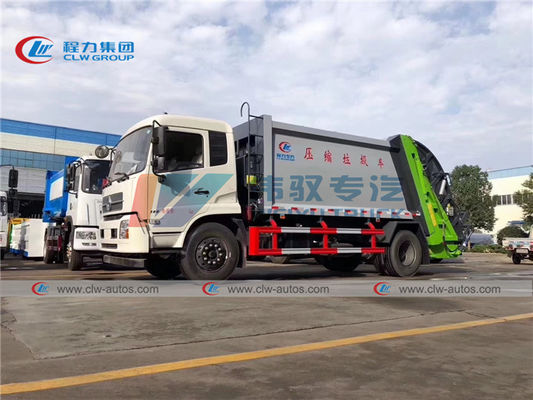

تصویر بزرگ : Dongfeng Left Hand Driving 8 Tons Garbage Compactor Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,
Model Number:	CLW9150cq

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه، رو-رو، کشتی فله
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، T/T، D/P، D/A، Western Union،، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Brand:	ISUZU,Dongfeng,FOTON, HOWO, JAC, JMC, SHACMAN,FAW	Material:	Carbon Steel Garbage Tank
ضخامت:	سمت 4 میلی متر و پایین 4 میلی متر	پایه چرخ:	5000 میلی متر
پمپ هیدرولیک:	برند معروف چینی	Control system:	Siemens brand operate system.
گارانتی:	1 سال	لوگو:	طبق درخواست مشتری
برجسته کردن:	8 Tons Garbage Compactor Truck,Dongfeng Garbage Compactor Truck,lhd refuse compactor truck , Dongfeng Garbage Compactor Truck , lhd refuse compactor truck

Dongfeng 8tons Compactor Garbage Truck Refuse Garbage Compactor Truck

Product Description

Compressed Garbage Truck change the dirty appearance of the city and eliminate the secondary pollution
High compression ratio and large load, maximum crushing pressure is 12 tons, loading capacity is 2 times largeer than usual garbage truck.
Easy Full Automatic Operation: computer control system for loading and unloading operations.
One Person Operation: Reducing sanitation working, greatly improves the working environment.
Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.

ISUZU FTR 10Tons 12Tons Compactor garbage Truck for Waste Management

ISUZU 12CBM compactor garbage truck Waste Management Truck
Overall Dimension	8350×2500×3000 mm	Gross Vehicle Weight	16000 kg
Curb Weight	9300 kg	Loading Weight	6700 kg
Wheel Base	4700 mm	Front / Rear Axle	4500 kg / 9000kg
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine	Cummins
Engine horsepower	180HP, EURO III
Max Driving Speed	90 km/h
Gear Box	6 Forward Gear, 1 Reverse Gear,
Tire	9.00R20(6 pieces with one spare)
Garbage Bin	Capacity	12cbm or 14CBM
	Material	4mm Carbon Steel for Garbage Bin Body
	Design	Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4
Control System	One control Panel on the back, One Control system in back of Cabin
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request

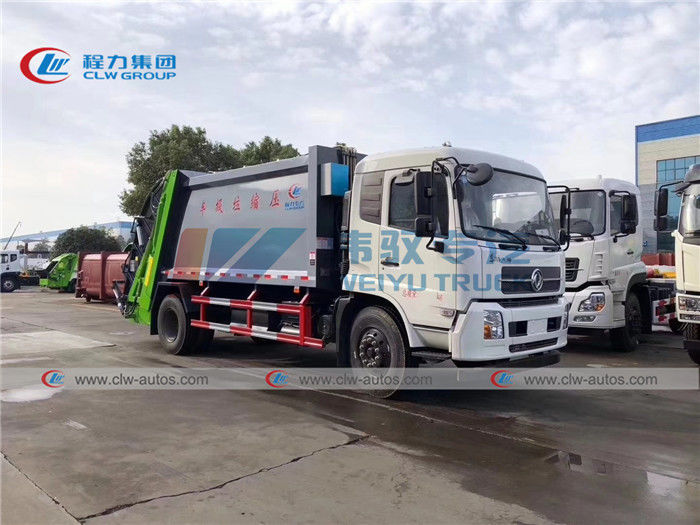

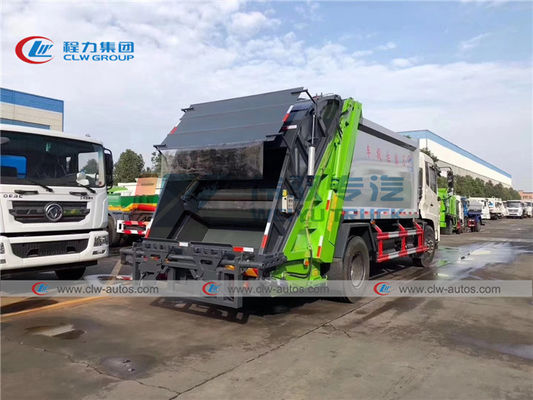

Dongfeng Left Hand Driving 8 Tons Garbage Compactor Truck 0

Dongfeng Left Hand Driving 8 Tons Garbage Compactor Truck 1

Dongfeng Left Hand Driving 8 Tons Garbage Compactor Truck 2

Compactor Garbage Truck Diagram

Dongfeng Left Hand Driving 8 Tons Garbage Compactor Truck 3

Compactor Carbage Truck Production Process

Dongfeng Left Hand Driving 8 Tons Garbage Compactor Truck 4

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
