Dongfeng 4x2 Mobile 15cbm Aviation Refueling Truck

تصویر بزرگ : Dongfeng 4x2 Mobile 15cbm Aviation Refueling Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
Model Number:	CLW5096JYC

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه، رو-رو، کشتی فله
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Chassis Brand:	Howo, Dongfeng, Isuzu, Foton, JAC, etc.	Gearbox:	8 Forward & 2 Reverse Gear
Tanker Volume:	15m3, 16m3, 17m3, 18m3, 19m3, 20m3, etc.	ماده مخزن:	فولاد کربن ، استیل ضد زنگ یا آلیاژ آلومینیوم
Tank Shape:	Square Round, Round	Transport Oil Type:	Diesel, Petrol, Gasoline, Oil, etc.
پمپ روغن:	برند معروف چینی	پخش کننده روغن:	برند معروف چینی
Hose Reel with Filling Gun:	15 Meter (Length Can Be Longer as Per Request)	Oil Vapor Recovery System:	Optional
زمان تحویل:	35 روز	رنگ:	سفارشی
گارانتی:	1 سال
برجسته کردن:	15cbm Aviation Refueling Truck,Dongfeng Aviation Refueling Truck,4x2 mobile refueling truck , Dongfeng Aviation Refueling Truck , 4x2 mobile refueling truck

Dongfeng Mobile 15cbm Helicopter Fuel Aviation Kerosene Refueling Truck

Product Description
1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.
2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Our helicopter refueling truck have most competitive price.

Product Specification

Condition	New condition/Left hand drive/4x2
Chassis	Brand		Dongfeng
	Curb weight(kg)		7805 kg
	Loading weight(kg)		7000/8000/9000 kg
	Wheelbase(mm)		4200/4500/4700/5000 mm
	Front/Rear axle loading weight(kg)		4000/7000 kg
	Front/Rear overhang(mm)		1430/2370 mm
	Approach/Departure angle(°)		18/12
	Max. driving speed(km/h)		80 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6pcs with one spare tire
		Specifications	9.00-20
Transmission	Manual type, 8 Forwards and 2 reverses
Steering	Power steering, hydraulic steering with power assistance
Cab	It can accommodate three people, With Air conditioner
Engine	Brand		Dongfeng Cummins
	Model		B190 33
	Fuel type		Diesel
	Displacement(ml)		5900 ml
	Power(kw)		140 kw
	Horsepower(HP)		190 HP
	Cylinder number		4 pcs
	Emission standard		Euro 3
Upper & Equipment
Fuel tank	Capacity(cbm)		10.0 cbm/12 cbm
	Tank material		Aluminium alloy
	Thickness(mm)		5.0mm
	Compartment quantity(pcs)		1 pcs
	Filling medium		Aviation kerosene
Fuel pump	Quantity(pcs)		1 pcs
	Model		China local brand
Notes	1, Aluminium alloy safety valve 1 pc 2, Mechanical type Ladder 3, Filter system 4, Control system
Remarks	Customized LOGO design as per customer needs!

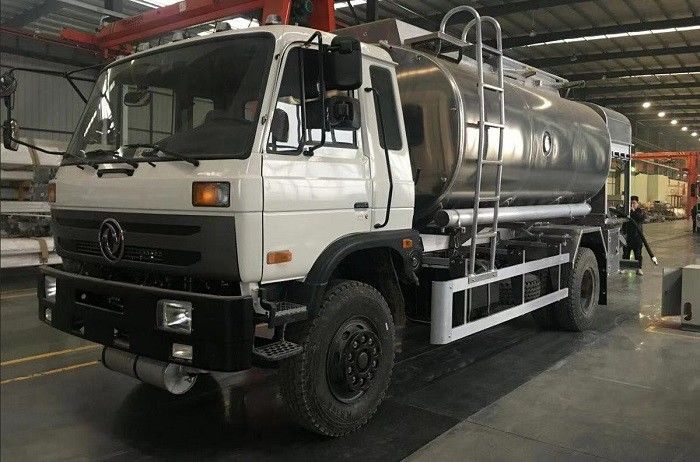

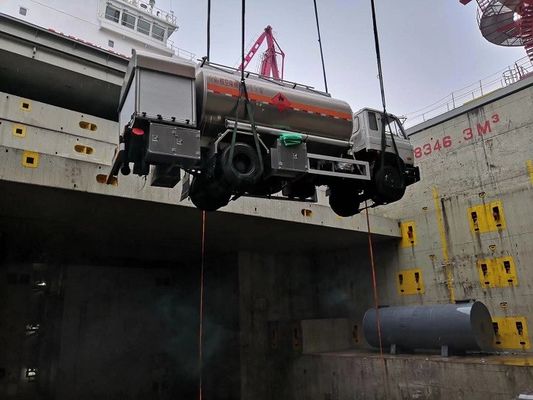

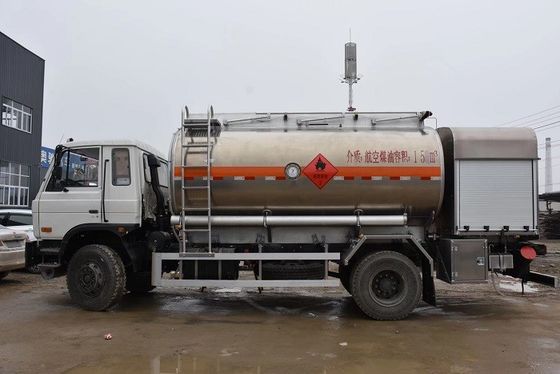

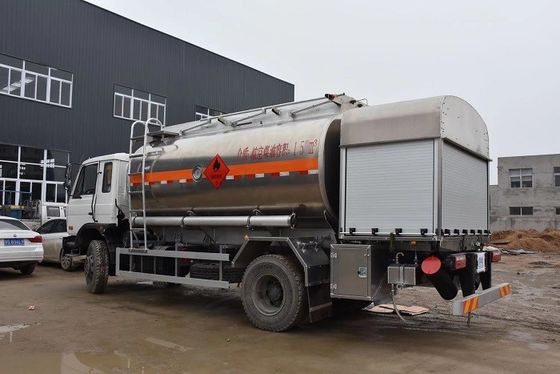

Reference Photos

Dongfeng 4x2 Mobile 15cbm Aviation Refueling Truck 0

Dongfeng 4x2 Mobile 15cbm Aviation Refueling Truck 1

Dongfeng 4x2 Mobile 15cbm Aviation Refueling Truck 2

Dongfeng 4x2 Mobile 15cbm Aviation Refueling Truck 3

Dongfeng 4x2 Mobile 15cbm Aviation Refueling Truck 4

Other Kinds of Fuel Dispenser Trucks

Dongfeng 4x2 Mobile 15cbm Aviation Refueling Truck 5

Dongfeng 4x2 Mobile 15cbm Aviation Refueling Truck 6

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of Helicopter refueling truck I can order from your company?

A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of Helicopter Refueling Truck products?

A: China GB local standard.

Q3: Can we adopts International brand fuel pump for helicopter refueling truck?

A: Sure, we already cooperated with many international brand supplier.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
