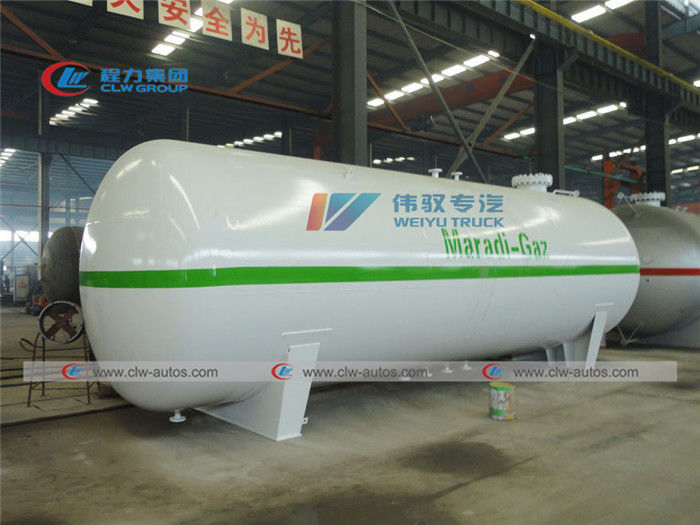

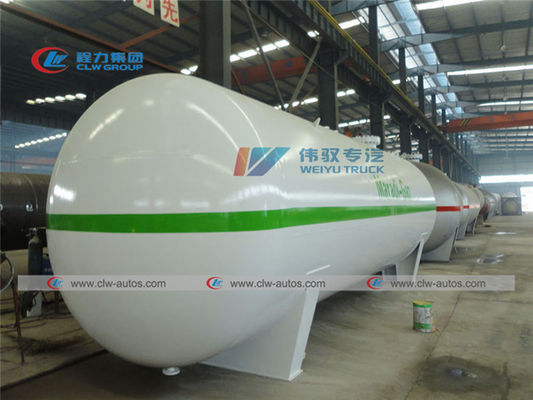

40,000Liters LPG Storage Tank 20tons Gas Filling Station For Niger
Product Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2.Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4.Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.
5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
6.Maintenance-free operation with simple calibration and proof testing.
7.20 years guarantee against manufacturing defects.
| 40,000Liters LPG Storage Tank Dimension |
| Volume of Tank | 40,000Liters |
| Filling Weight | 15960 kg |
| Tank Weight | 9380kg |
| Thickness of Shell (mm) | 12 mm |
| Thickness of End plate (mm) | 14 mm |
| Tank Diameter (mm) | 2400 mm |
| External Dimensions (mm) (length x width x height) | 9270 x 2428X3018 mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.77 MPa / 17.7Bar |
| Corrosion Allowance | 1 mm |
| Medium Density | 500 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
| Main parts of LPG Tank |
| Item | Specification | Quantity |
| Discharge Pipe | DN80 | 1 |
| Inflow Pipe | DN80 | 1 |
| Gas phase balance pipes | DN50 | 2 |
| Drain Hole | DN50 | 1 |
| Manhole | DN450 | 1 |
| Air-out Pipe | DN50 | 1 |
| Safety Valve Pipe | DN80 | 2 |
Safety Accessories (Included in the quotation):
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. |

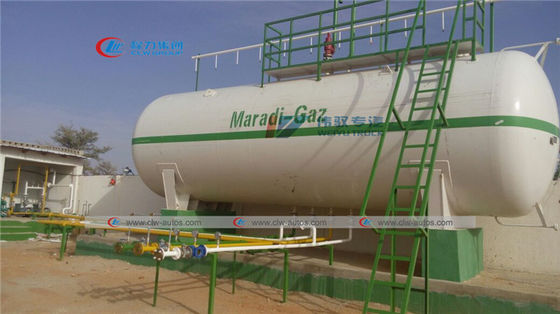

Gas filling station design in Niger

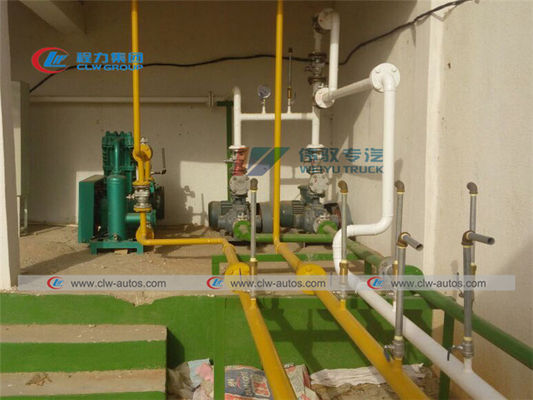

Filling house for cylinders
Loading for shipment
Key words: 40,000Liters LPG storage tank, LPG Tank, Gas Filling station
