120HP Dongfeng 6cbm Sewer Cleaning Truck With 6000L Tank

تصویر بزرگ : 120HP Dongfeng 6cbm Sewer Cleaning Truck With 6000L Tank

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
Model Number:	CLW5078xe

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه، رو-رو، کشتی فله
زمان تحویل:	30-35 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Brand:	Dongfeng,JAC,FOTON,HOWO,Shacman	سوخت:	دیزل
پایه:	3300 میلی متر	ماده مخزن:	فولاد کربن،
ضخامت:	4 میلی متر	Waste tank size:	6,000liters,6cbm, 6m3
تخلیه:	بالابر هیدرولیک بدنه مخزن	پمپ خلا:	نام تجاری معروف چین / برند ایتالیایی
لوله مکش فاضلاب:	8 متر	زمان مکش:	کمتر از 5 دقیقه
گارانتی:	یک سال	رنگ:	آرم سفارشی
زمان تحویل:	30 روز
برجسته کردن:	6cbm Sewer Cleaning Truck,Dongfeng Sewer Cleaning Truck,120HP sewer vacuum truck , Dongfeng Sewer Cleaning Truck , 120HP sewer vacuum truck

Dongfeng 6cbm Sewage Suction Truck Sewer Cleaning Truck

Product Description

1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

Cabin	Driving type 4x2, single row
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	6800×2300×2850
	Wheel base (mm)	3800
	Wheel track (front/rear) (mm)	1960/1860
	Approach/Departure angle(°)	28/32
Weight in KGS	Tare Weight	5340
	payload	6025
	Front axles loading capacity	2700
	Rear axles loading capacity	5000
Max. driving speed(km/h)		95
Engine	Brand	Chaochai
	Horse Power(HP)	120HP
	Emission standard	Euro III
Gearbox	5 forwards & 1 reverse
Brake	Air brake
Tire	5.25-16, 6 tires with one spare
Sewage Tank
Tank volume	6000Liters
Tank material	6mm carbon steel
Vacuum Pump	Chinese Vacuum Pump or Italy Vacuum Pump
Sewage suction pipe	8M
Main Performance	Suction time ≤ 5min, effective suction range ≥ 8
Other equipment	Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve
Painting	Customized painting color and logo as required.

Sewage suction truck diagram

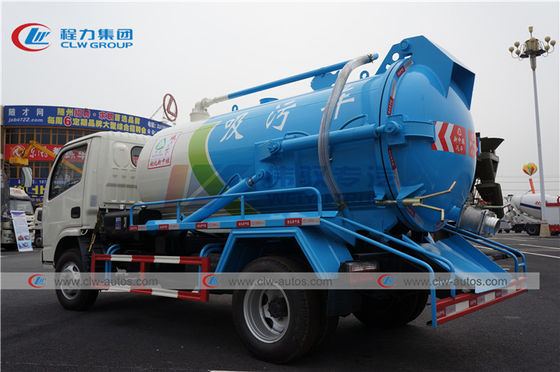

120HP Dongfeng 6cbm Sewer Cleaning Truck With 6000L Tank 0

Discharge

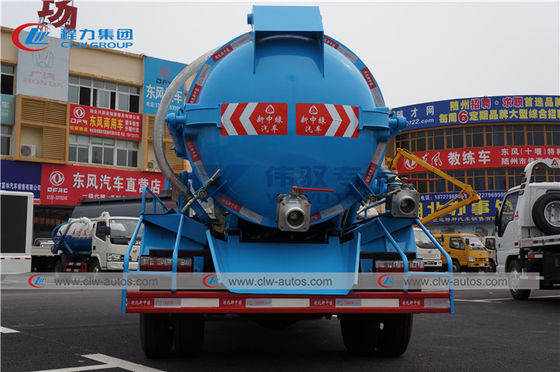

120HP Dongfeng 6cbm Sewer Cleaning Truck With 6000L Tank 2

Working Show

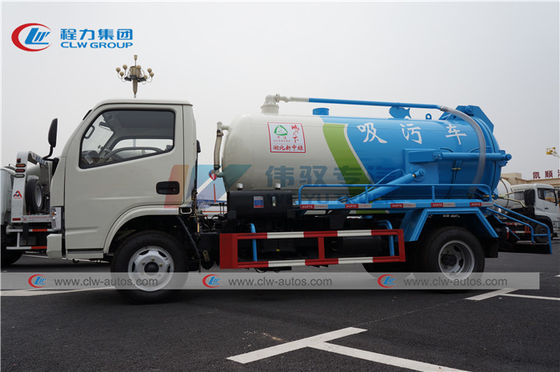

120HP Dongfeng 6cbm Sewer Cleaning Truck With 6000L Tank 3

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What size Sewage Suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?

A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
