21 Meter JMC Straight Arm Telescopic Aerial Platform Truck

تصویر بزرگ : 21 Meter JMC Straight Arm Telescopic Aerial Platform Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, SGS, BV
شماره مدل:	CLW5070BPG

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

تایپ کنید:	کامیون بالابر هوایی نوع تلسکوپی	ظرفیت سطل:	200 کیلوگرم
اندازه سطل:	1000x700x1250mm	نوع بازوی کار:	نوع H
حداکثر ارتفاع عملیات:	18 متر تا 22 متر	حداکثر برد عملیاتی:	8 متر ~ 9 متر
برند شاسی:	دانگ فنگ، ISUZU و غیره	مارک موتور:	ISUZU، کامینز
گارانتی:	1 سال
برجسته کردن:	Telescopic Aerial Platform Truck,JMC Aerial Platform Truck,21M Aerial Lift Truck , JMC Aerial Platform Truck , 21M Aerial Lift Truck

21Meters JMC Straight Arm Telescopic Aerial Platform Truck for Streets light Bridge Maintenace

Product Description

21Meters JMC Straight Arm Telescopic Aerial Platform Truck for Streets light Bridge Maintenace

Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
Full Computer Control System with Danger Waring System.
LCD Screen in Both the Bucket and Truck to Display the Working Status.
Rectangular Shape Arms to Increase the Arm Strength.
V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

Product Show

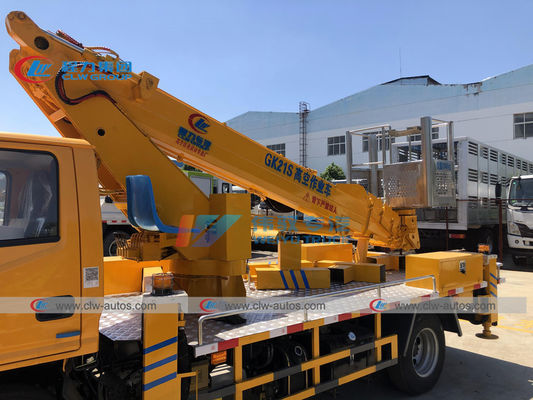

21 Meter JMC Straight Arm Telescopic Aerial Platform Truck 0

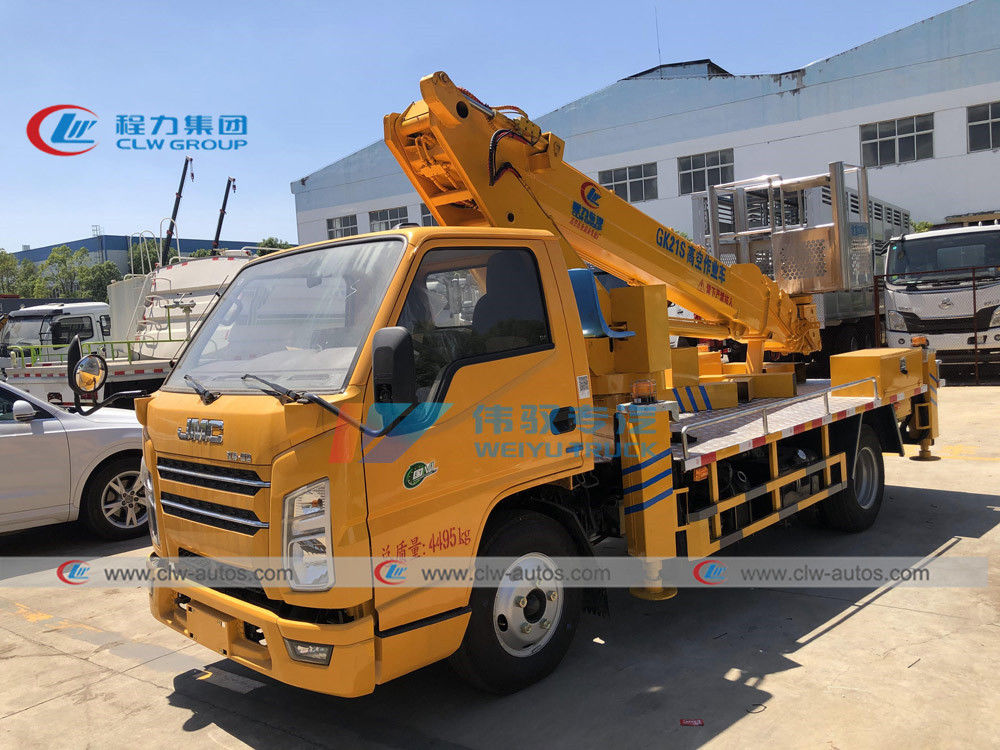

21 Meter JMC Straight Arm Telescopic Aerial Platform Truck 1

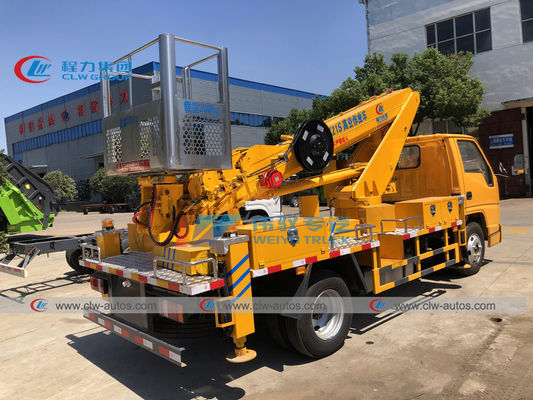

21 Meter JMC Straight Arm Telescopic Aerial Platform Truck 2

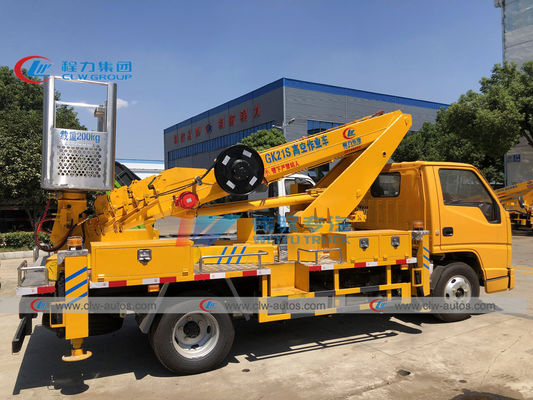

21 Meter JMC Straight Arm Telescopic Aerial Platform Truck 3

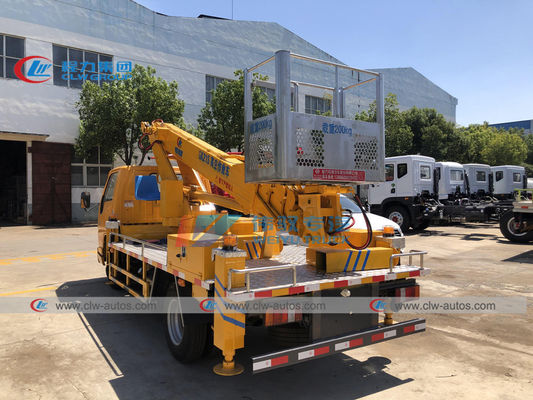

21 Meter JMC Straight Arm Telescopic Aerial Platform Truck 4

Product Details

ISUZU Aerial Platform Truck
Overall dimensions	8450×2050×3100 mm
Wheel base	3800 mm
F/R track base	1015/2280mm
Approach/departure angle	24/10°
Front / Rear Axle	2Ton / 4.8Ton
Cabin	ISUZU 600P cabin, Double Row, Left Hand Driving, with A/C, Radio
Engine	4KHF-TCG40, Diesel type, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling, Euro IV
Displacement/ HP	2999ml / 120hp
Gearbox	ISUZU 5 foward &1 reverse
Steering Gear	Hydraulic Power Steering
Max speed	90 km/h
Tire specification	7.00-16, 6 Pieces
Traction system	4x2

Superstructure main technical Parameters
Max operation height		21m(= Working bucket’s Max height above ground+ Industry unified standard human height 1.7m)
Boom	Working booms type	Three folded arms
Boom	Boom’s max lift angle	65°
Hydraulic system	Hydraulic pump	Gear pump
	Hydraulic system pressure	≤16Mpa
	Hydraulic tank volume	80L
Working bucket	Max height above ground	18.3(m)
	Max operation range	8.7(m)
	Operation range at min operation height	3.07(m)
	Operation range at max operation height	11.5(m)
	Working bucket slewing angle	360°
	Rated load	200kg
outrigger	Outrigger Type	H type
	Numbers of outrigger	4
	Horizontal span	2930(mm)
	Longitudinal span	4500(mm)
Hook	Max lift weight	800(kg)
Hook	Max lift height	8.5(m)
Operation	Control method	Manual control
	Outrigger control	Horizontal / vertical individually adjustable
	Operating position	Working bucket, on the truck or under the truck

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
