50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery

تصویر بزرگ : 50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,BV,SGS
شماره مدل:	CLW5071

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	20 ~ 25 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	1000 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Material:	Aluminum Alloy 5083 5454	Material Thickness:	5mm ~ 6mm
Purpose:	Different Type Oil	Tank Shape:	Square Round, Oval, Round
پرتو اصلی:	T700	محور:	فووا ، bpw
Tire:	12R22.5 Tubless Tire	برند تایر:	سکه دوبل، مثلث، آیولوس و غیره
بازار طراحی:	بازار آفریقا یا آسیا	Safety Valve:	Pnumetic Control Emergency Valve
راه های بارگیری:	در حال بارگذاری پایین	راه تخلیه:	تخلیه پایین
برجسته کردن:	50CBM Aluminum Fuel Tank Trailer,Aluminum 5083 Fuel Tank Trailer,aluminum 5454 oil tanker truck , Aluminum 5083 Fuel Tank Trailer , aluminum 5454 oil tanker truck

50CBM Aluminum Fuel Tank Trailer Light Weight for long distance delivery

Product Description

Rust Resist Tank Design, good for eatible oil delivery, such as palm oil, soybean oil, other type of oil.
Tank Material: Aluminum 5083 5454,
All Aluminum Pipe line with the aluminum valve.
Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding

Trailer advantages description

More than 20 years professional design and production experience.
Choose Regular manufacturers purchase materials,like Q235 baoshan.
Use Domestic first-class production equipment.
Famouse brand trailer parts used,like bpw/fuwa axle
Triangle/double star/double coin and so on tires,API VALVES.
Strict quality control system ensure that each semi trailer is qualified.

Specifications of Palm Oil Tank Transport Trailer 50CBM Aluminum Fuel Tank Trailer

Tank Body
Shape	Optional ( Round or Square)
Dimension	13500mm2490mm3800mm ( Exact size depends on the final design)
Tare weight	About 8000kg ~ 12000kg
Total Volume(m3)	50m³
Tanker Body Material	5mm or 6mm Aluminum
End Plate	5mm or 6mm Aluminum
Manhole Cover	Cabon steel or API manhole cover, ∮500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Compartments	5
Discharging Pipe	4”rubber hose, 2 pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Weldding design , connected by bolts and nuts Q345 carbon steel material
Axle	3 axles,FUWA brand
Landing Gear	CHINA BRAND 28T
King Pin	JOST 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /air suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 /without
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber(TKL brand); one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO or 40HQ Containers

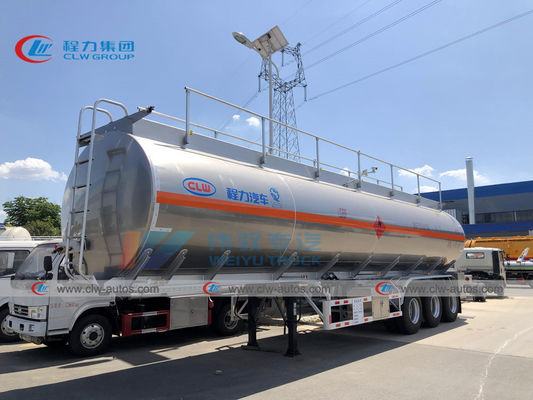

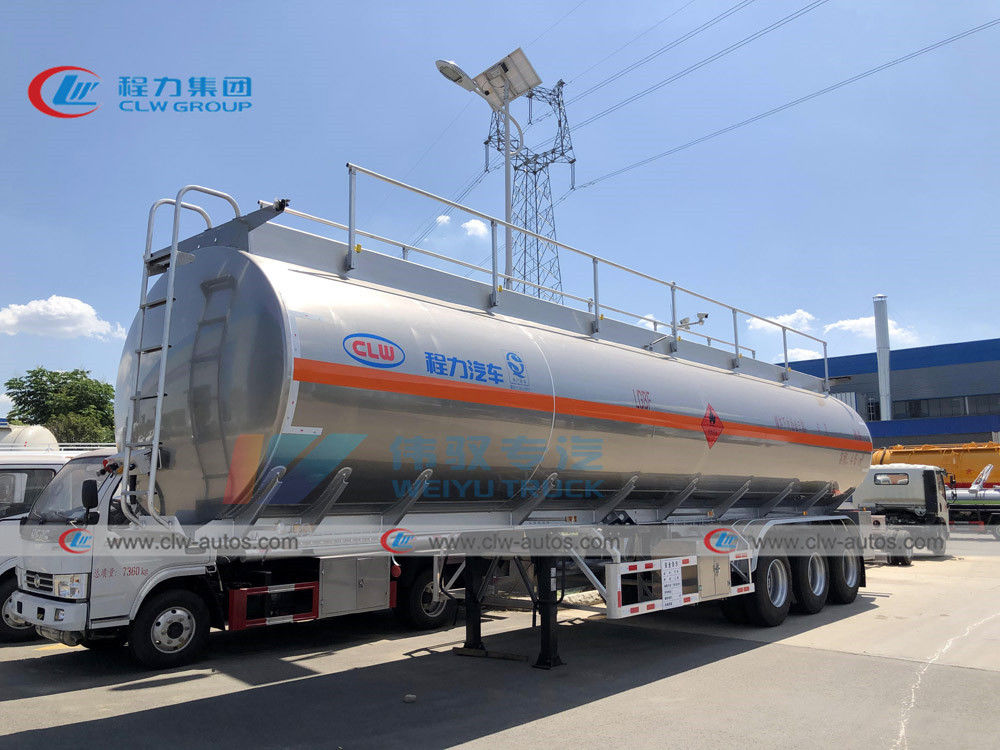

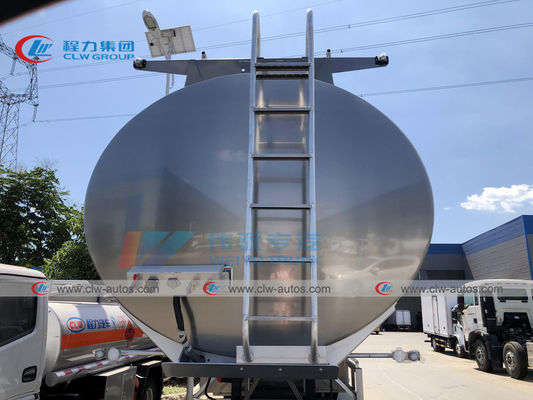

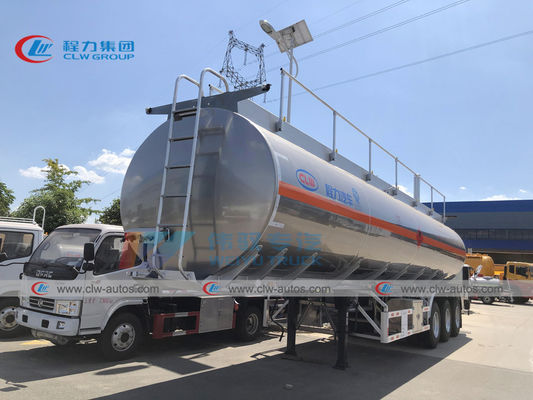

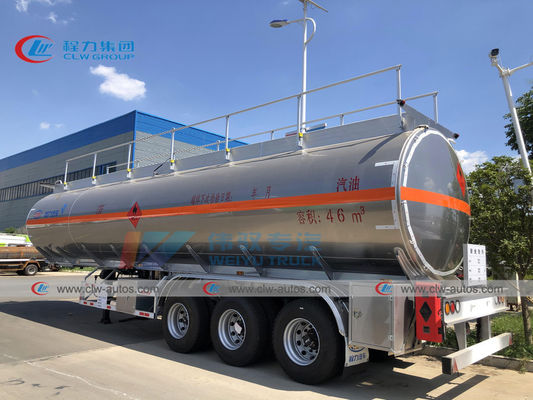

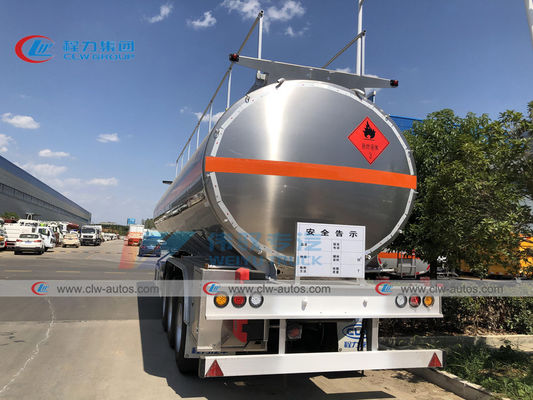

50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery 0

50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
