--LPG Storage tank (also called lpg tank, lpg gas tank,lpg gas storage tank,lpg storage tank,gas storage tank,cooking gas tank,lpg plant tank,filling station tank,lpg storage tank for sale in nigeria,propane tank,propane station tank) is a professional product for storing LPG or propane gas,belonging to special equipment and vessels and require special material,third-class pressure vessel with Q345R material.Q345R is one of ASME standard material.
-- LPG Storage tank can be divided into various types as follows,
★Above ground bullet LPG tank and underground bLPG Storage tank;
★According to tank size,there are 5,000liters to 200,000liters LPG Storage tank for option;
★Vertical bullet LPG tank and horizontal LPG Storage tank.
--The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
--non-destructive testing and magnetic particle inspection test for each LPG Storage tank;
--Design pressure of LPG Storage tank: 1.77Mpa;
--hydraulic testing pressure:2.21 Mpa;
--Corrosion allowance: 1mm;
-Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.

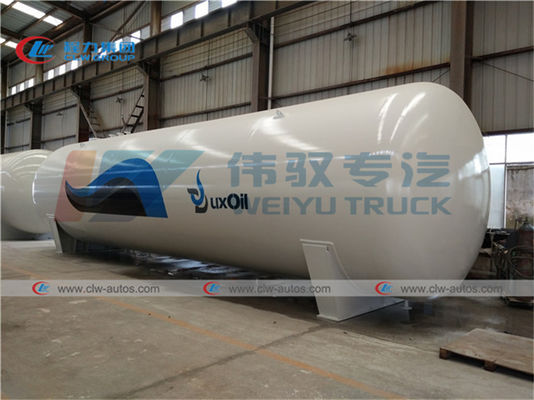

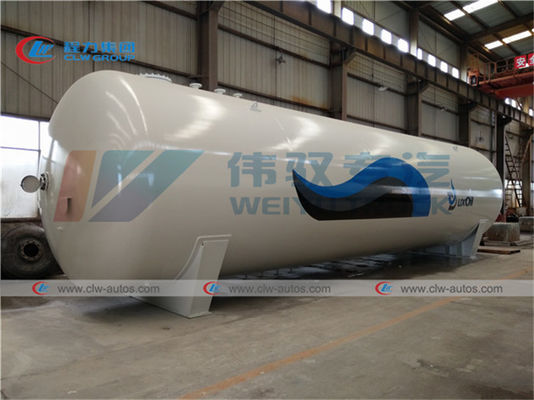

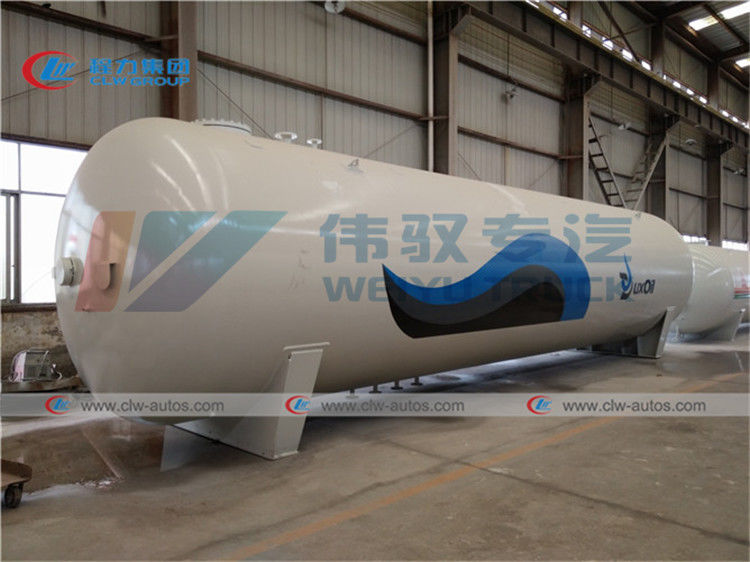

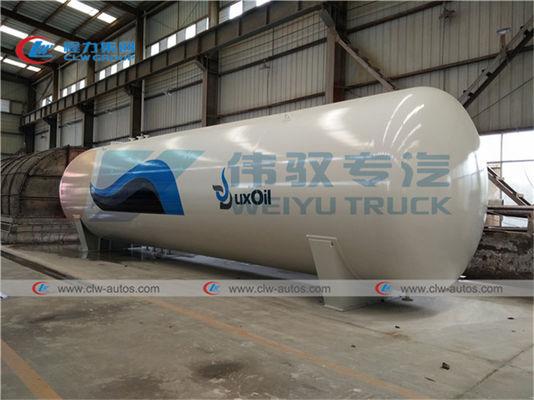

Parameter of 40Tons 80cbm LPG Storage Tank
ITEM
PARAMETER
ITEM
PARAMETER
Volume
80cbm
Thickness of Shell
16mm
Tank Material
Q345R
Thickness of End plate
18mm
Overall Size
11166*3132*3722mm
Tank Net Weight
17000kg
Tank Diameter
3100mm
Loading Capacity
31920kg
Design Pressure
1.77Mpa
Gas Density
420kg/M3
Hydraulic Test Pressure
2.22Mpa
Corrosion Allowance
1mm
Design Temperature
-20℃~50℃
Heat Treatment
Bulk
Vapor Outlet
DN50
Gas Outlet
DN50
Life time
15 years
Accessories
Model
Item
Qty
Junction surface
J41N-2.5-50
Stop Valve DN50
6
RF
J41N-2.5-25
Stop Valve DN25
2
RF
J41N-2.5-100
Stop Valve DN100
1
RF
J24W-320-DN6
J24W Needle Valve M20*1.5
1
HG21584-95
Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5
1
RF
A42F-25-100
Safety Valve DN100
1
RF
Y-100T
Pressure Gauge M20*1.5 1.5degree 0~4Mpa
1
WTQ-280
Thermometer M33*2 2.5 degree
1
-40℃~60℃
FAQ
★How can I get a sample of propane tank to check your quality?
Answer:Due to the propane tank size,sample can not be sent to your country.But we have supplied a lot of propane tanks to customers in many countries,you can go and check our tanks if you are nearby,Or welcome to visit our factory in china and check the quality by yourself.
★How long can I expect to get the propane tank?
Answer:20~30 working days after receiving deposit at account.
★What's your payment term?
Answer:40% deposit by T/T and balance by T/T before shipment.We also accept 100% irrevocable LC at sight.
★When can I get the price of propane tank?
Answer:we will contact you as soon as receiving your inquiry by email or message in 24 hours.
★Does your propane tank have warranty service? How long is the warranty period?
