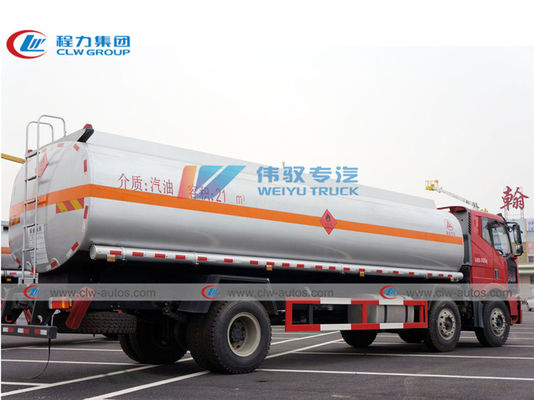

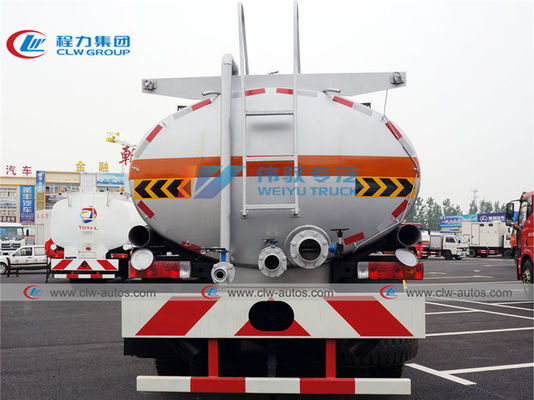

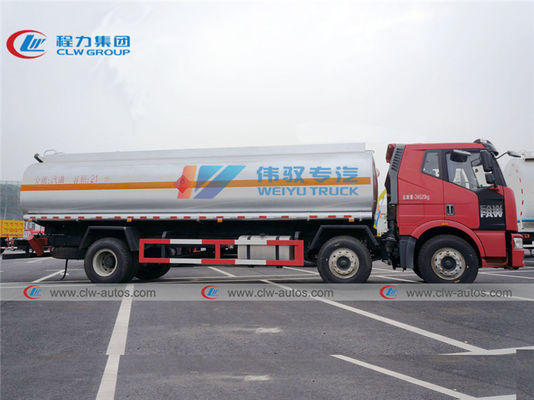

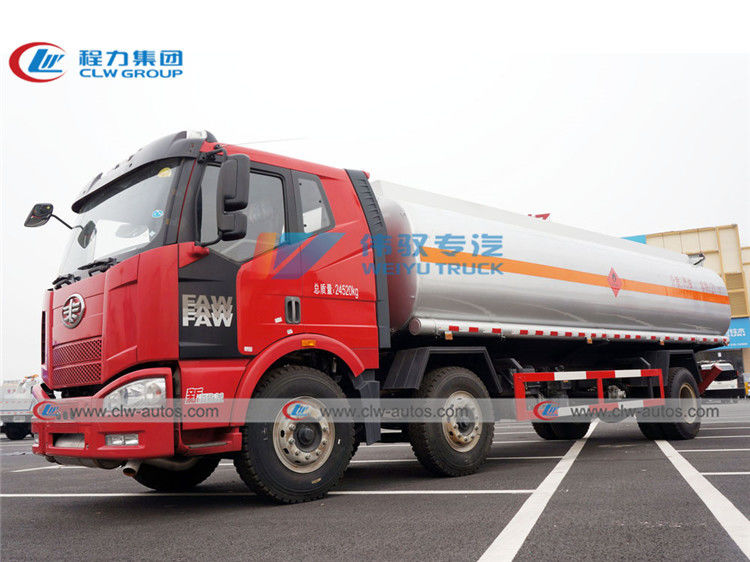

20m3 20T FAW J5 Oil Transport Truck With Censtar Tokheim Fuel Dispenser

تصویر بزرگ : 20m3 20T FAW J5 Oil Transport Truck With Censtar Tokheim Fuel Dispenser

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,BV,SGS
شماره مدل:	clw5070

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	20 ~ 25 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	1000 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد:	Q235b ، Q345b	ضخامت مواد:	4 تا 5 میلی متر
Tank Capacity:	25000Liters, 6600Gal	وزن بارگیری:	20 متری تن
برند کامیون:	فاو	لاستیک:	11R22.5، 12R22.5
کابین:	چپ دستی	Engine:	Xichai or Weichai
جعبه دنده:	10 جلو و 2 عقب
برجسته کردن:	FAW J5 Oil Transport Truck,20T Oil Transport Truck,20m3 fuel oil delivery truck , 20T Oil Transport Truck , 20m3 fuel oil delivery truck

20m3 20ton FAW J5 Oil Transport Truck with Censtar Tokheim Fuel Dispenser

Product Description

Sinotruk Chassis with Large Horse Power Engine of 371HP

High Quality chassis good for many different kinds of road condition.
Good Quality Tank with different capacity for choice: 10,000 liter to 16,000Liters

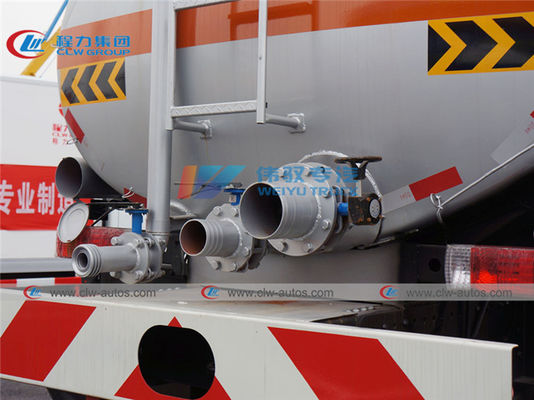

API Manhole, Emergency cut-off Valve,
Optional Bottom Discharge, Vapor Recovery system.

Oil Dispenser Truck:

Mobile Oil Station Supplying to Trucks & Cars
Pump, Dispenser, Filling Guns All in Only Unit
PTO Drive High Efficiency Oil Pump
Good Quality Oil Dispenser Powered by Truck Electricity

Tanker Capacity:

3,000 liters to 40,000 liters Per Customer Request.

Specifications of 10Ton Fuel Delivery Tank Truck in Dongfeng Kingrun 14m3 Oil Dispenser Tanker Truck

24,000L Sinotruk Howo 6x4 Oil Tank Truck
Item No.	Parameters
Overall Dimension	10200x2500x3600 mm
Gross Vehicle Weight	25000 kg
Curb weight	10870 kg
Loading Weight	14000 kg
Wheel Base	4600+1350 mm
Front/Rear Tread	2022 / 1830 mm
Front Axle	HF9, 1x9000 kg
Rear Axle	HC16, Heavy Reduction Drive Axle, STR Hub-reduction with Differential Locks between Wheels and Axles, Ratio 5.73
Engine	Sintruck Engine WD615.87, 6-cylinder in line, 4-stroke, Water-cooled, Turbo-charged & inter-cooled, Direct Injection
Engine horsepower	290 HP Euro II
Displacement	9.726 L(Diesel)
Full loading Fuel Consumption Rate	Maximum 193 g/kW.h
Max Driving Speed	90 km/h
Gear Box	HW15710, 10 Forward Gear & 2 Reverse Gear, High and Low Shifting
Cabin	HW76 Cabin, 2 Passenger Allowed with 1 sleeper, Left Hand Driving, With Air Conditioner,
Tire	11.00-20, 10 pieces with one spare tire
Tank Capacity	20,000 Liters
Tank Material	Q235 High Tension Steel, 6mm Thick Carbon Steel, With 6 Separated Compartment, Customized Tank Color, Can also Paint Customer's Logo or Advertisement on Tank.
Other Equipment	6 Ball Valves in each compartment for gravity discharging. 6 Emergency Cut Off valve.

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
