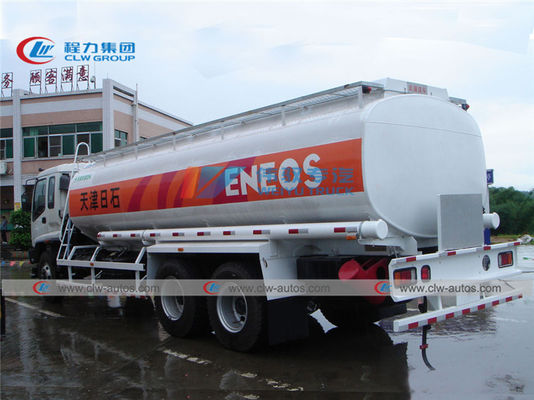

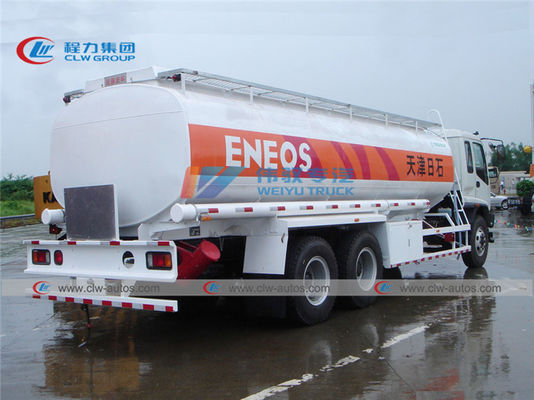

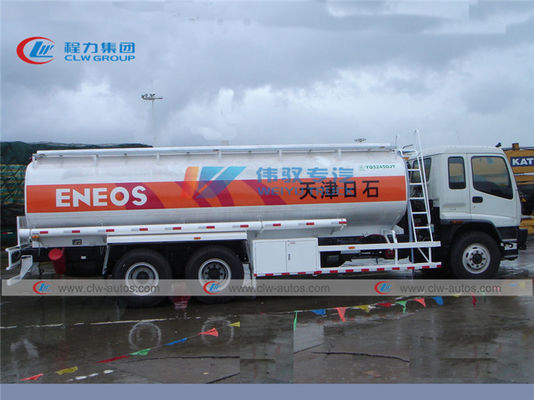

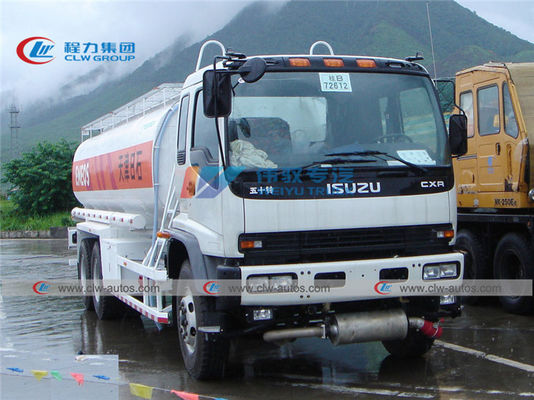

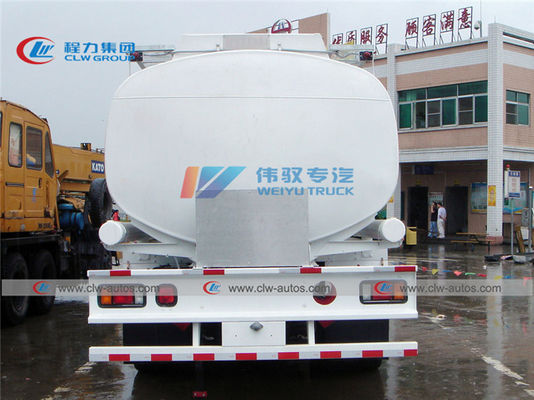

20000L 60000 Gallon ISUZU Diesel Tanker Trucks For Fuel Station Refilling

تصویر بزرگ : 20000L 60000 Gallon ISUZU Diesel Tanker Trucks For Fuel Station Refilling

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,BV,SGS
شماره مدل:	clw5070

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	35400USD/unit~51500 USD/unit
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	20 ~ 25 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	1000 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Material:	Q235B, Q345	Material Thickness:	5mm ~ 6mm
ظرفیت مخزن:	20000 لیتر	وزن بارگیری:	20ton
برند کامیون:	ایزوزو	Tire:	11.00R22.5
کابین:	LHD یا RHD، با A/C	موتور:	ایزوزو
Gearbox:	9 Forward & 2 Reverse	محور جلو:	7ton
محور عقب:	16 تن
برجسته کردن:	20CBM ISUZU Diesel Tanker Trucks,60000 Gallon Diesel Tanker Trucks,20000L Fuel Delivery Truck , 60000 Gallon Diesel Tanker Trucks , 20000L Fuel Delivery Truck

20000L 60000Gallon ISUZU Oil Diesel Transport Truck for Fuel Station Refilling

Product Description
Brand: ISUZU Diesel Engine, ISUZU Gearbox, 7Ton Front Axle & 16Ton Rear Axle

Good Quality Tank with different capacity for choice: 20,000 liter to 26,000Liters
API Manhole, Emergency cut-off Valve,
Optional Bottom Discharge, Vapor Recovery system.

Oil Dispenser Truck:

Mobile Oil Station Supplying to Trucks & Cars
Pump, Dispenser, Filling Guns All in Only Unit
PTO Drive High Efficiency Oil Pump
Good Quality Oil Dispenser Powered by Truck Electricity

Tanker Capacity:

20,000 liters to 25,000 liters Per Customer Request.

Specifications of 10000L Isuzu Fuel Delivery Tank Truck with Censtar Tokheim Oil Dispensing System

Vehicle Description
Overall dimensions	1020025003430mm
GVW	25000kg
Curb weight	10500kg
Chassis brand	ISUZU FVZ

Tanker Description
Tank capacity	20-35cbm
Tanker material	Carbon steel
Thickness	Tanker body	5mm
	End cover	65mm
Tanker shape	Square
Tanker compartment	4 compartment (optional: several compartment)
Standard configuration	4 set manhole Equipped with double discharge valve and valve box. Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. Electrostatic conducting tape and double fireextinguishers.
Optional	Tanker material: aluminum alloy; stainless steel Chinese standard configuration is available, or other world famous fuel configuration. The whole set of European configurations for each compartment: European type manhole,over flow probe system, vapor recovery system, bottom valve, API adaptors. Emergency bottom valve and foldable aluminum handrail. Others: fuel pump, refueling dispenser, flow meter,dipstick, etc.

Chassis Description
Chassis model	QL11409MFR
Cab	One and half row, with A/C
Wheelbase	4350+1300mm
Tire specification	11.00R22.5
Tire quantity	6+1 units
Engine	Engine model	6HK1-TCSG40
	Emission level	Euro 4
	Displacement/output	7780ml/206kw
	Horse power	280hp
Gear box	Model	FAST MLD
Gear box	Number of gears	9 forward gears& 1 reverse
Brake system	Full air brake
Axle	Front	6.3T
Axle	Rear	13T
Fuel tanker	Type	Stainless steel tanker, with lockable cap
Fuel tanker	Capacity	400L

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
