Hotsale Dongfeng 10,000liters 10m3 Tanker Truck 10tons Liquid Garbage Sewage Vacuum Suction Truck
Product Description
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Product Specification
| Overall dimensions |
8000*2490*3800mm |
| GVW |
15800kg |
| Chassis brand |
China Dongfeng |
| Traction type |
4*2 |
| Chassis model |
Dongfeng |
| Cab |
one and a half row, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. |
| Traction type |
Right-hand drive |
| Drive type |
4*2 |
| Wheelbase |
4500mm |
| Tire specification |
10.00R20 |
| Tire quantity |
6+1 units |
| Engine |
Engine model |
CUMMINS 190HP |
| Emission level |
Euro 2or3 |
| Displacement/output |
5900ml/140kw |
| Horse power |
190hp |
| Gear box |
Model |
Dongfeng |
| Number of gears |
6 forward gears& 1 reverse, synchronized |
| Suspension |
Front |
8/8- Leaf spring with shock absorber |
| Rear |
9/9-Leaf spring |
| Fuel tanker |
Type |
Steel fuel tank, with lockable cap |
| Tanker |
Capacity |
10,000cbm |
| Pump |
Type |
Italy BP Pump |
| Rating speed |
1400(r/min) |
| Max vacuum - % |
98% |
| Pipe |
Suction and discharge pipe |
| Special function |
Suction time ≤ 3mins,
effective suction range ≥ 9,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45 |
| Standard configuration |
Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically. |
| Optional configuration |
Tanker material: stainless steel.
Anti-rust coating inside tank |
| Painting |
The color and Logo can be customized. |

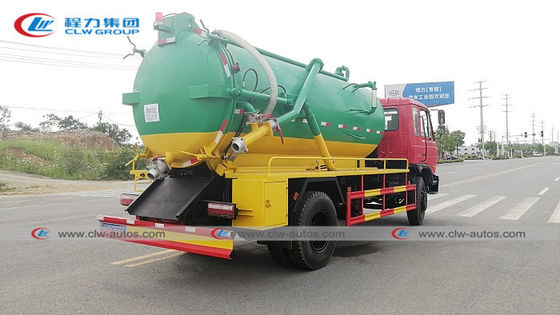

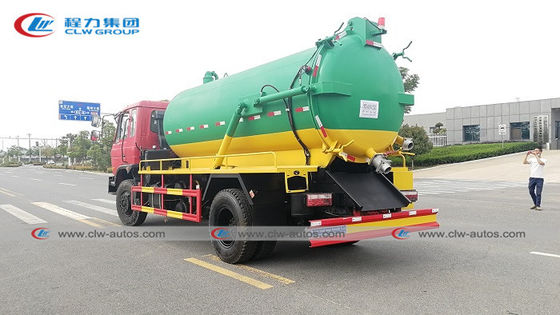

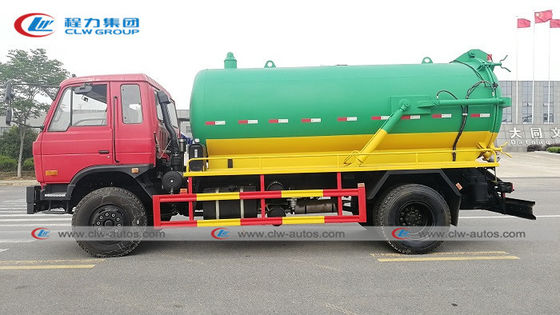

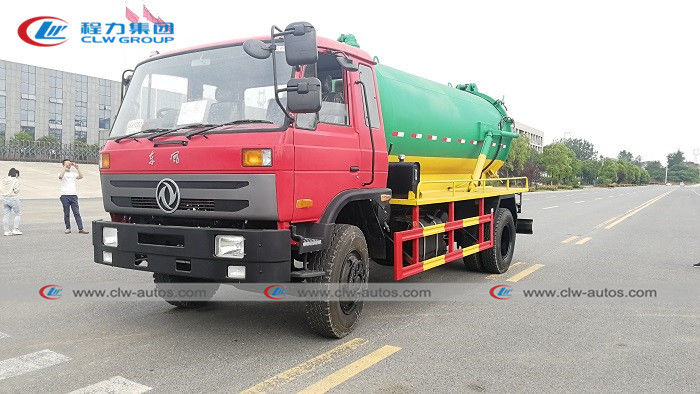

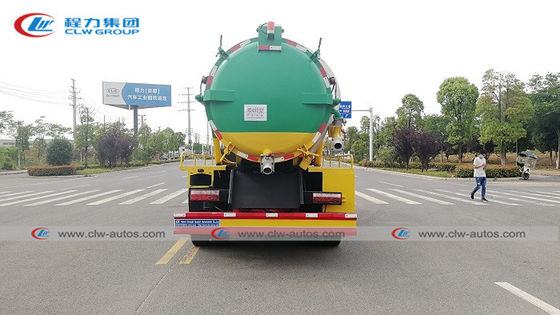

Reference Photos
Main Structure
Working Scene
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea For More Details: +86 155 2791 1810.
FAQ
Q1: What size sewage suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Have you supplied sewage suction truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.
Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
