5t 10t 10000l 20000L 10mt Lpg Skid Tank Cylinder Refilling

تصویر بزرگ : 5t 10t 10000l 20000L 10mt Lpg Skid Tank Cylinder Refilling

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW
گواهی:	CCC ISO ASME
شماره مدل:	CLW1040

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	12450 usd/unit~24560 usd/unit
Packaging Details:	Naked package shipped by container
زمان تحویل:	ظرف 30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، D/P، T/T، Western Union، MoneyGram، D/A
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Tanker Volume:	20CBM/20000Liters/20000L or as customized	ماده مخزن:	Q345R/SA516
Loading material:	Propane/Liquefied petroleum gas/LPG/cooking gas	فشار طراحی:	1.77MPa
ضخامت پوسته و صفحه انتهایی:	10 میلی متر یا 12 میلی متر	Loading capcity:	10tons,10t,10mt
وضعیت:	جدید	ابعاد:	با توجه به نقاشی
After-sales service provided:	Engineers available to service machinery overseas, Field maintenance and repair service	Function:	Cylinder refilling,car filling
Color:	Optional, Customers', Silvery Grey, White / Green / Red, White or customer's requirements
برجسته کردن:	10mt Lpg Skid Tank,5t Lpg Skid Tank,10000l Lpg Skid Tank , 5t Lpg Skid Tank , 10000l Lpg Skid Tank

FunctionLPG Gas Filling Station(also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.

Feature

1. LPG Gas Filling Station for cooking gas refilling in home use cylinder in different size.
2. One LPG Gas Filling Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of LPG Gas Filling Station is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of LPG Gas Filling Station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp

Technical parameter

20CBM LPG TANK DIMENSIONS
Volume of Tank		20CBM
Filling Weight		10000 kg
Tank Weight		2950 kg
Thickness of Shell (mm)		10 mm
Thickness of Endplate (mm)		12 mm
Tank Diameter (mm)		1800 mm
External Dimensions (mm) (length x width x height)		8174 x 1820 x 2410mm
Overall Skid Size		As designed
Material of Tank and Main Pressure Parts		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa
Test Pressure		2.22 Mpa
Corrosion Allowance		1 mm
Medium Density		420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item	Specification/ mm		Quantity
Discharge Pipe	DN50-2"		1
Inflow Pipe	DN50-2"		1
Outlet	DN50-2"		1
Gas phase balance pipes	DN50-2"		1
Manhole	DN450		1
Drain Hole	DN50-2"		1
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

LPG Skid Part list
Item	Model Number	Quantity
LPG Tanker	LPG Storage Tank with tank accessories	1 piece
LPG Filling Pump	2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof,	2 Piece
Cylinder Filling Scale	Can fill 3kg to 150kg LPG cylinder	2 Piece
Leakage Detector	Leakage warning detector	1 Unit
Pipes	/	1 sets
Cut-off Valve	J41N-40 DN50	5 Pieces
Ball Vavle	DN50	8 Piece
Safety Valve	A42F-25 DN50	1 Piece
Pipe Safety Valve	A21F-25 DN15	1 Piece
Ball floating level gauge	UQZ-2.5P	1 Piece
Discharging pipe	L=4M DN50/DN25	1 Piece
Shock-absorbing Tube	L=500mm DN50	2 Pieces
Flange	2.5MPaDN15	20 Pieces
Pressure Gauge	0 ~4Mpa	1 Piece
LPG Tank	LPG Storage Tank with tank accessories	1 piece

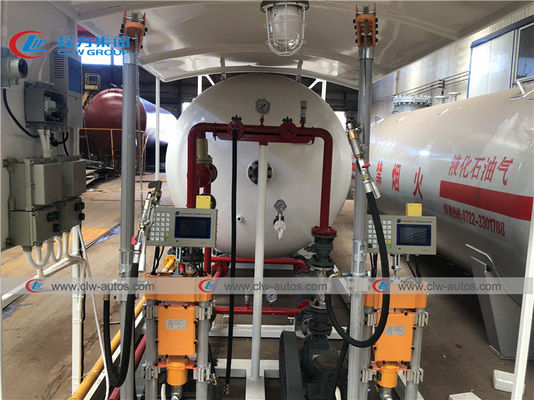

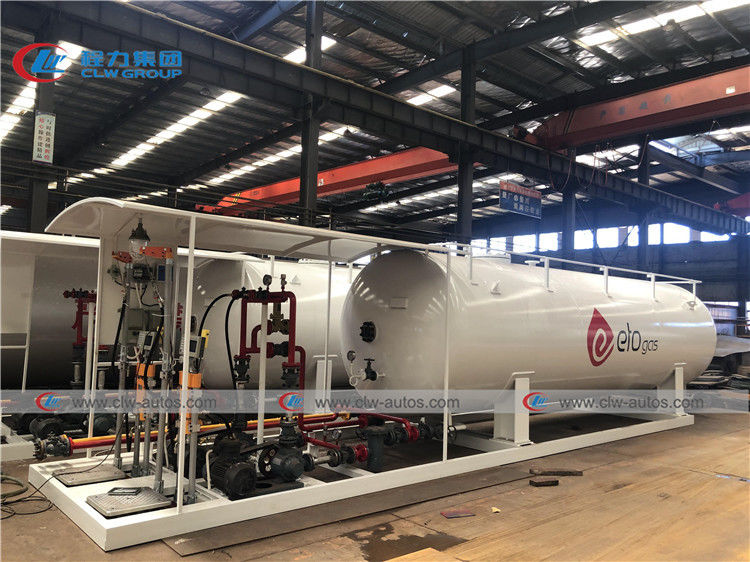

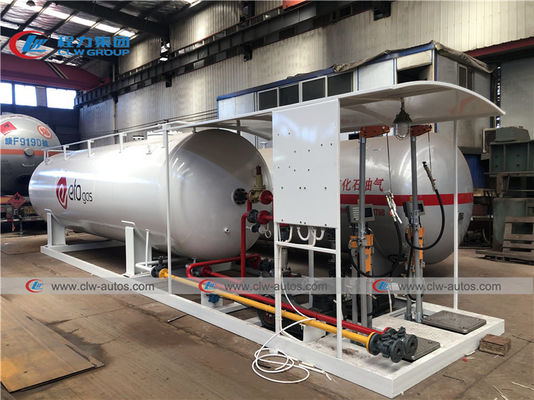

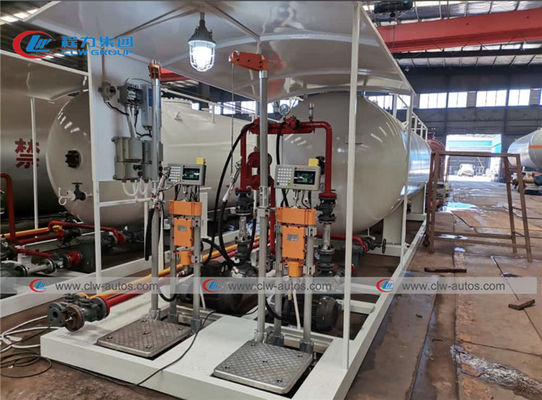

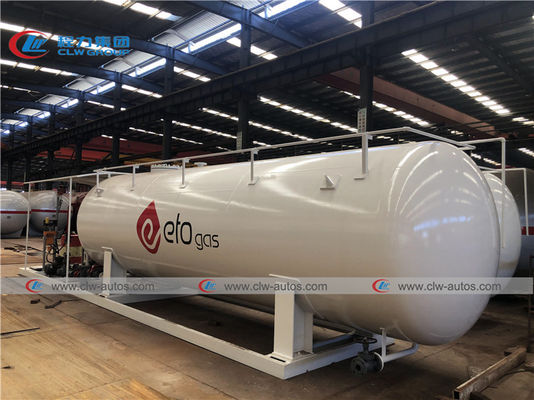

Reference picture

5t 10t 10000l 20000L 10mt Lpg Skid Tank Cylinder Refilling 0

5t 10t 10000l 20000L 10mt Lpg Skid Tank Cylinder Refilling 2

5t 10t 10000l 20000L 10mt Lpg Skid Tank Cylinder Refilling 3

5t 10t 10000l 20000L 10mt Lpg Skid Tank Cylinder Refilling 4

5t 10t 10000l 20000L 10mt Lpg Skid Tank Cylinder Refilling 5

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
