205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck

تصویر بزرگ : 205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO
Model Number:	CLW5162WYT

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	18960 usd/unit~42560 usd/unit
Packaging Details:	Naked with waxing before shipment
زمان تحویل:	20 تا 30 روز کاری
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
Supply Ability:	300 units/per month

مخاطب

توضیحات محصول جزئیات

Tank volume:	10000l~15000L,15m3,15K liters,15000liters,15cbm	Fuel type:	Diesel engine 205hp
Drive wheel:	4X2,6X4,8X4,4X4,6X6,8X8	Tank material:	Carbon Steel,Q235 Carbon Steel/ Stainless Steel
نوع انتقال:	دستی، اتوماتیک	Wheelbase:	4500mm,4700mm
Product name:	Fuel Tanker Truck, fuel delivery truck, Fuel Tank Truck,oil tanker truck	Storage:	edible oil,disel,gasoline,petroleum,oil,chemical
شرایط:	کاملا نو	Engine capacity:	5.19L,5190ml
Color:	Customer's Require, According to customer's requirements, Per your request, Opitional, paint according to your requirements	استاندارد انتشار:	یورو 5/6
فرمان:	درایو دست چپ
برجسته کردن:	15T Fuel Delivery Truck,205hp Fuel Delivery Truck,CLW5162WYT , 205hp Fuel Delivery Truck , CLW5162WYT

Description

Fuel tanker truck(also called fuel truck,fuel tank truck,fuel delivery truck,fuel oil delivery truck,gallon fuel truck,petrol tanker truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.

1. Purpose of ISUZU fuel tanker truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of ISUZU fuel tanker truck: Oil pump, Hose reel with filling gun/Oil dispenser machine

3. Tank shape of ISUZU fuel tanker truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation. 5. Refueling machine of ISUZU fuel tanker truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc. 6. Optional parts of ISUZU fuel tanker truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Feature--Stable and reliable ISUZU truck chassis;--High quality carbon steel material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

Specification

`Condition`	`Brand new/left hand drive /4X2`
`Chassis`	`Brand`		`ISUZU`
	`Wheelbase(mm)`		`4500 mm`
	`Dimensions(mm)`		`8400X2500X3100 mm`
	`Front/Rear Axle loading(kg)`		`6300/13000 kg`
	`Tire`	`Quantity`	`6 pcs with one spare tire`
		`Specifications`	`10.00R20`
`Transmission`	`Manual type MLD, 6 Forwards and 1 reverse`
`Cab`	`It can accommodate three people with cabin width 2mm and with Air Conditioner`
`Engine`	`Brand`		`ISUZU`
	`Model`		`4HK1-TC50`
	`Fuel type`		`Diesel`
	`Displacement(ml)`		`5190 ml`
	`Power(kw)`		`151kw`
	`Horsepower(HP)`		`205HP`
	`Cylinder number`		`4`
	`Emission standard`		`Euro V`
`Fuel Tank`
`Fuel tank`	`Capacity(cbm/liters)`		`15 cbm/15,000 liters`
	`Tank material`		`Tank material:Q235 high tensile strength steel,optional for aluminum alloy or stainless steel`
	`Thickness(mm)`		`5mm of tank and 6mm of end plate`
`Compartment No.`	`1,or as customized`
`Manhole cover`	`∮500mm 1 set with breather valve`
`Bottom Valve`	`1 set of API Pneumatic Bottom Valves`
`Discharging valve`	`1 set ∮100 discharging valves`
`Handrail`	`Pneumatic control at tank two sides`
`Ladder`	`At rear of tank`
`Painting`	`Color and design as customer’s requirement`

Key word: 15tons fuel truck,15t oil truck,isuzu fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,15k liters fuel truck,15000liters fuel truck,isuzu tanker truck

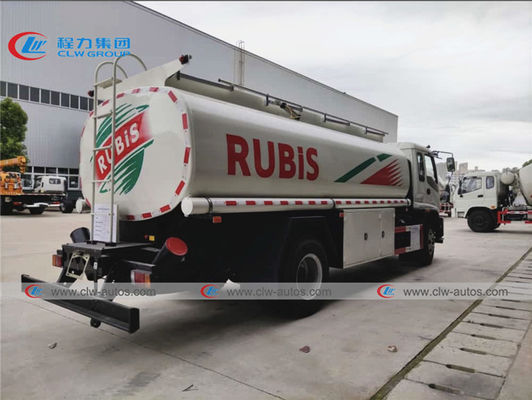

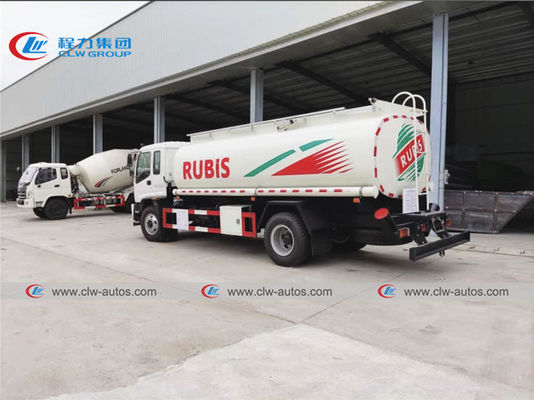

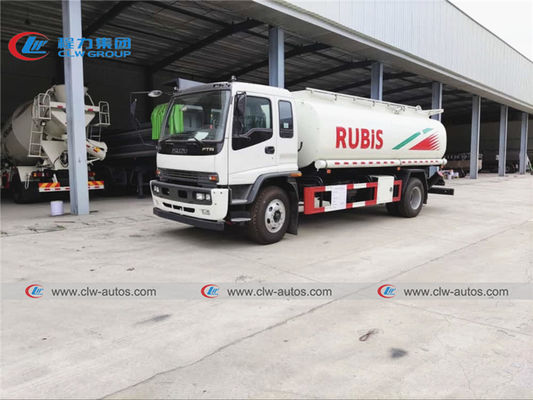

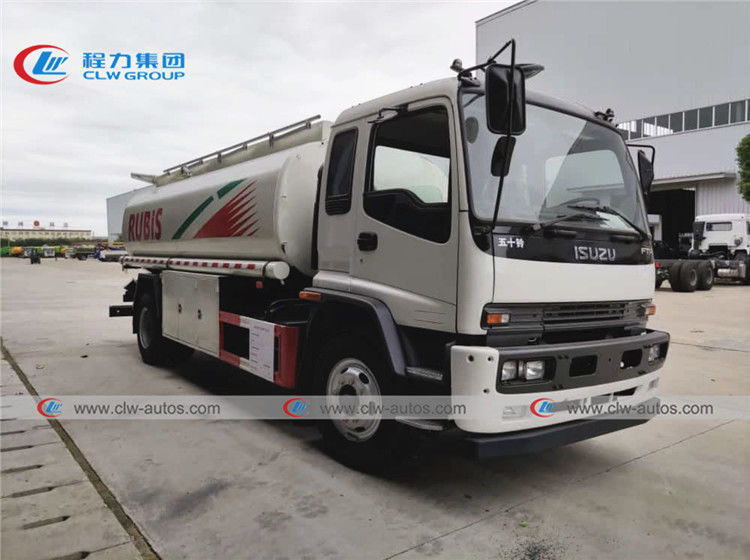

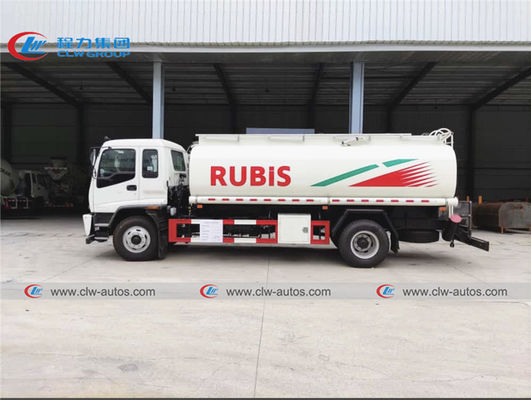

Reference pictures

205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck 0
