Mini Skid Cooking Gas LPG Gas Storage Tank 5mt 5 Tons With Filling Dispenser Machine

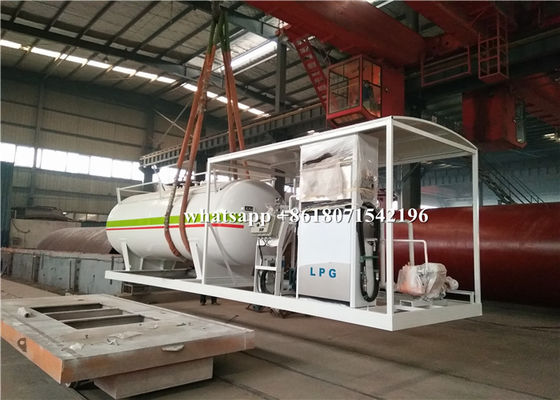

تصویر بزرگ : Mini Skid Cooking Gas LPG Gas Storage Tank 5mt 5 Tons With Filling Dispenser Machine

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC ISO ASME
شماره مدل:	CLW9603

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه
زمان تحویل:	ظرف 30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، Western Union، MoneyGram
قابلیت ارائه:	200 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد:	فولاد کربنی Q345R/Q370R/ASME	فشار تست هیدرولیک:	2.21MPa 22.1bar
Volume:	5tons,5mt,10cbm,10m3,10000liters	مارک پمپ:	کورکن، بلکمر، برند چینی
کمک هزینه خوردگی:	1 میلی متر	رنگ:	آرم سفارشی
زمان حیاتی:	20 سال	گارانتی:	1 سال
برجسته کردن:	transporting large propane tanks,large lpg storage tanks , large lpg storage tanks

Mini Skid Cooking Gas Filling Plant Tank 5mt 5tons 10000liters LPG Gas Refilling Station with Filling Dispenser Machine

Product Description

1. mobile filling station is used for refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Pipeline of mobile filling station: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
4. Explosive Proof Central Control Panel for whole station system
6. Other Equipment of mobile filling station: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system

Technical Specifications

Specification of 5tons 10000L lpg gas refilling station
Volume of Tank	10CBM(10,000liters) 5tons
Filling weight(Kg)	5000
Thickness of Shell (mm)	10 mm
Thickness of Endplate (mm)	10 mm
Tank Diameter (mm)	1600 mm
Tank Dimensions (mm) (length x width x height)	5260X1620X2210mm
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.71 MPa
Corrosion Allowance	1 mm
Medium Density	500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item	Specification
Specification of the Motor
Model	Chinese famous brand
Revolving speed	1470 r/min
Power	5.5 kw
Voltage	380 V
Protection grade	Anti explosive
Specification of the hydrocarbon Pump
Model	YQB15-5
Medium	Liquid petroleum gas
Speed	15 m3/h
Input and Output Diameter	50 mm
Working pressure	2.0 Mpa
Working temperature	-40ºC- 50ºC
Material	carbon steel

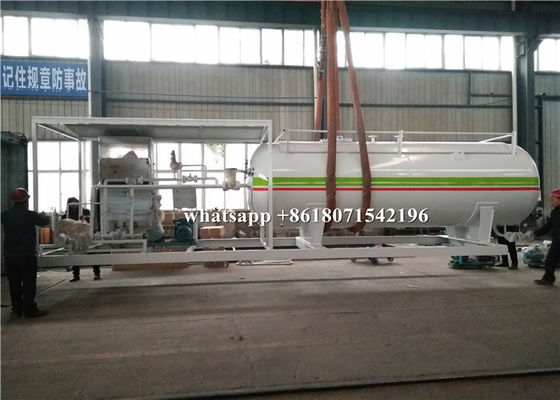

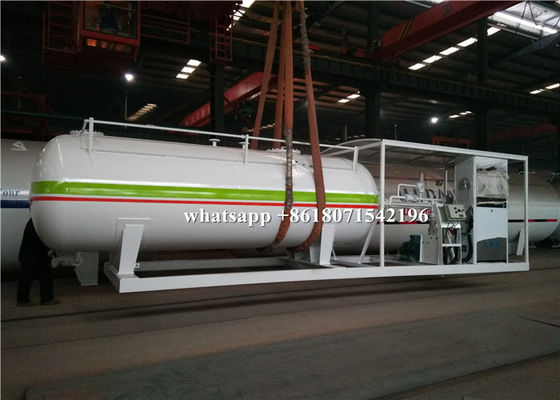

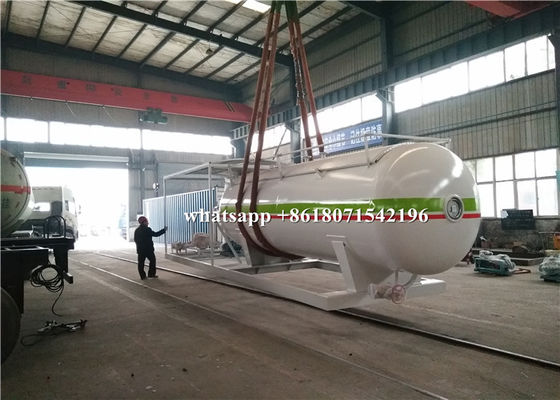

Detail Photos

Mini Skid Cooking Gas LPG Gas Storage Tank 5mt 5 Tons With Filling Dispenser Machine 1

Successful cases

Mini Skid Cooking Gas LPG Gas Storage Tank 5mt 5 Tons With Filling Dispenser Machine 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
