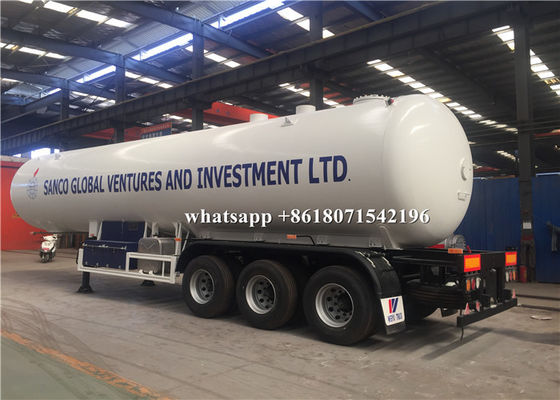

3 Axles 25 Tons LPG Gas Tanker Truck 49600L Liquefied Petroleum Gas Tank Trailer

تصویر بزرگ : 3 Axles 25 Tons LPG Gas Tanker Truck 49600L Liquefied Petroleum Gas Tank Trailer

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	ASME,CCC,BV,SGS
Model Number:	CLW9390wc

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C،، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد تانکر:	Q345r، Q370r، Q420r، SA516	ank Capacity:	49.6cbm
ضخامت مخزن:	12 میلی متر	فشار طراحی:	1.61 مگاپاسکال، 16.1 بار / PSI
کمک هزینه خوردگی:	1.0 میلی متر	برند محور:	BPW، FUWA، YORK، HJ
لوگو:	به عنوان درخواست مشتری	گارانتی:	1 سال
برجسته کردن:	propane service truck,fuel transport trucks , fuel transport trucks

3 Axles 25tons LPG Mobile Tanker Trailer 49600L Liquefied Petroleum Gas Tank Trailer

Product Description

1) LPG Bridger Truck Tanker Trailer is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.

2) Manufacturing standards of lpg bridger truck tanker trailers : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

3) Optional accessories of lpg bridger truck tanker trailers:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose

4) Available tanker trailer capacity of lpg bridger truck tanker trailers : 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons

Specification

Tanker Essential Information
Volume of Tank (cbm)	49.6
Overall Dimensions(LWH)(mm)	1274024803800
Tank Dimensions(Inner DiameterthicknessLength)	23001212354
Estimated Tare Weight (kg)	15300
Payload(kg)	20832
Total Weight(kg)	36132
Wheelbase(mm)	6800+1320+1320
Shell of Tanker
Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature(ºC)	50ºC
Design Pressure(MPa)	1.61
Corrosion Allowance(mm)	1.00
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body:Q345,12mm,
	End plate:Q345R,12mm
	Main beam:16Mn
Detection
Heat Treatment		Overall treatment in a furnace,600ºC to 640 ºC
Flaw Detection		100% Flaw detection
Test Pressure(MPa)		1.61
Hydraulic Test(MPa)		2.1
Magnaflux Inspection		Aim at welding place that flaw detection can not cover
Manhole (As Customer's Requirement)
Quantity		1;on top
Size		DN450
Safety Valve(As Customer's Requirement)
Quantity		2
Location		On the top of tanker
Size		DN80
Level Gauge
Type		Manuel Switch type
Location		At the rear of the end dish
Running System
Axles		3*13T BPW
Tire		12R22.5 Tubeless tire ,8 with one spare tire
Landing leg		JOST
King Pin		#50 or #90
Control System
Emergency Cut-off Valves		2 or 3
Ball Valve		4 or 6
Liquid Gauge		1
Pressure Indicating Thermometer		1
Pressure Gage		1

3 Axles 25 Tons LPG Gas Tanker Truck 49600L Liquefied Petroleum Gas Tank Trailer 0

3 Axles 25 Tons LPG Gas Tanker Truck 49600L Liquefied Petroleum Gas Tank Trailer 1

3 Axles 25 Tons LPG Gas Tanker Truck 49600L Liquefied Petroleum Gas Tank Trailer 2

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
