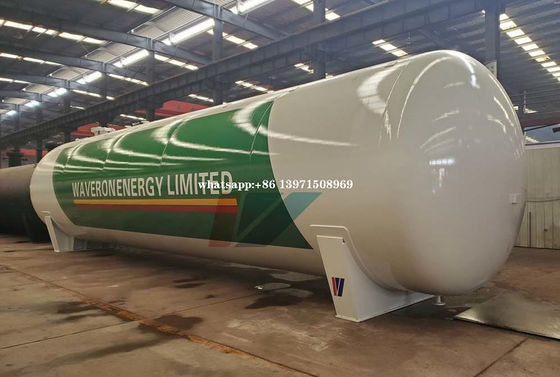

50 Tons Liquid Propane Gas LPG Gas Storage Tank Vapor Outlet DN50 With All Station

تصویر بزرگ : 50 Tons Liquid Propane Gas LPG Gas Storage Tank Vapor Outlet DN50 With All Station

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, ASME
شماره مدل:	CLW1020

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه، کشتی فله، رول رول
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

هدف تانک:	ذخیره سازی گاز مایع پروپان/آمونیاک/بوتان برای پمپ بنزین	مواد تانکر:	Q345R، 16MnDR، Q370R، SA516Gr70، SA517، و غیره.
اندازه کلی (طول x عرض x ارتفاع):	1386631323722 (mm)	قطر مخزن:	DN3100mm و غیره
ضخامت مخزن:	پوسته 16 میلی متر، سر 18 میلی متر.	گزینه های حجم مخزن:	5cbm-200cbm; معمولاً 50 متر³، 60 متر³، 80 متر³، 100 متر³، 120 متر³، و غیره
گزینه های ظرفیت مخزن:	2 تن-100 تن؛ معمولا 20 تن، 30 تن، 40 تن، 50 تن، 60 تن و غیره.	فشار طراحی:	1.71Mpa/17.1Bar، 1.77Mpa/17.7Bar، 1.61Mpa/16.1Bar
دمای طراحی:	-20 ℃ ~ 50 ℃	کمک هزینه خوردگی:	1 میلی متر
رنگ:	طبق درخواست مشتری	زمان حیاتی:	15 سال
برجسته کردن:	transporting large propane tanks,large lpg storage tanks , large lpg storage tanks

China Pressure Vessel 100, 000 Liters/100 Cbm LPG Tanker 50 Mt/ 50 Tons Liquid Propane Gas Storage Tank with All Station

Product Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc.
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

Product Specification

Parameter of 100000liters lpg gas plant tank
ITEM		PARAMETER	ITEM		PARAMETER
Volume		100cbm	Thickness of Shell		16mm
Tank Material		Q345R	Thickness of End plate		18mm
Overall Size		1386631323722mm	Tank Net Weight		20410kg
Tank Diameter		3100mm	Loading Capacity		39900kg
Design Pressure		1.77Mpa	Gas Density		420kg/M3
Hydraulic Test Pressure		2.22Mpa	Corrosion Allowance		1mm
Design Temperature		-20ºC~60ºC	Heat Treatment		Bulk
Vapor Outlet		DN50	Gas Outlet		DN50
Life time		15 years
Accessories
Model	Item			Qty		Junction surface
J41N-2.5-50	Stop Valve DN50			6		RF
J41N-2.5-25	Stop Valve DN25			2		RF
J41N-2.5-80	Stop Valve DN80			1		RF
J24W-320-DN6	J24W Needle Valve M20*1.5			1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5			1		RF
A42F-25-80	Safety Valve DN80			1		RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa			1
WTQ-280	Thermometer M33*2 2.5 degree			1		-40ºC~60ºC

We supply customized drawing for every storage tank
50 Tons Liquid Propane Gas LPG Gas Storage Tank Vapor Outlet DN50 With All Station 0

Nozzle data
Characters	Size	Pressure(MPa)	Connect	Junction surface	Purpose
a	DN50	25	HG20592-WN	RF	Drain outlet
b	DN50	25	HG20592-WN	RF	Liquid phase outlet
c1-2	DN50	25	HG20592-WN	RF	Gaseous phase balanced outlet
d	DN50	25	HG20592-WN	RF	Liquid inlet
e	M33*2			Screw-thread	Thermometer connection
f1-2	DN25	25	HG20592-WN	RF	Lever gauge connection
g	M20*1.5			Screw-thread	Pressure Gage
h	DN100	25	HG20592-WN	RF	Safety valve connection
i	DN50	25	HG20592-WN	RF	Emptying mouth
j	DN450	25	HG20592-WN	FM	Manhole

Structure Diagram of LPG Storage Tank
50 Tons Liquid Propane Gas LPG Gas Storage Tank Vapor Outlet DN50 With All Station 1

We supply package solution for lpg station building as follows

Production Process

50 Tons Liquid Propane Gas LPG Gas Storage Tank Vapor Outlet DN50 With All Station 4

Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
