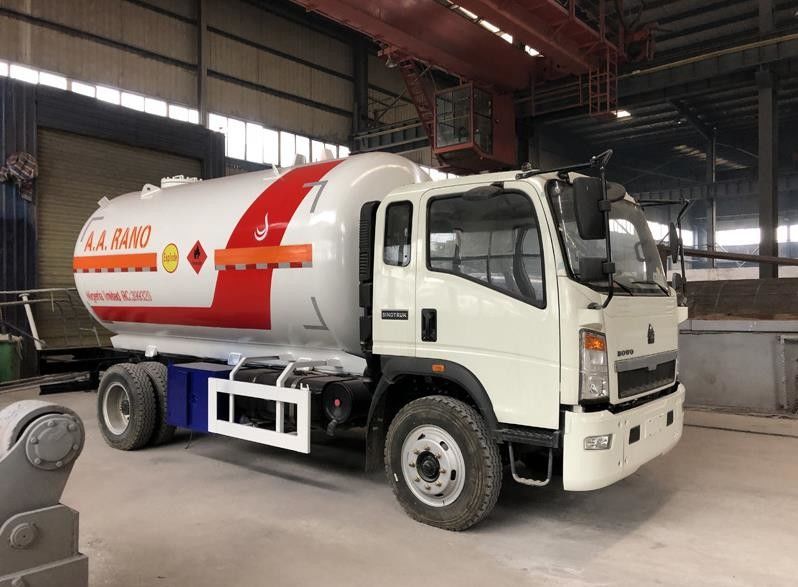

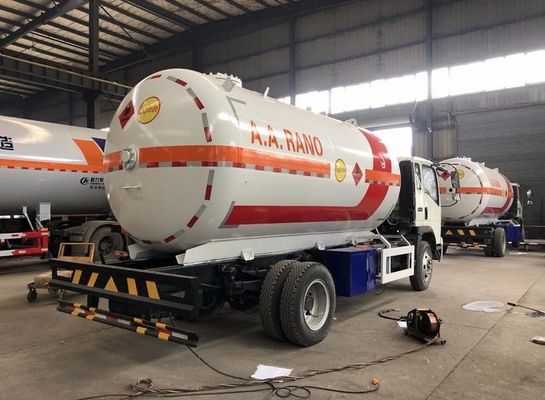

China Hot Sale HOWO 5mt/5t/5tons Liquid Propane Gas Tank Truck LPG Mobile Delivery Cylinder Filling Tanker Dispenser LPG Bobtail Truck
Product Description
1. Truck Brands: Dongfeng, Sinotruk HOWO, JAC, FAW, Foton, Isuzu, etc..
2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.
3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test.
4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings.
Product Specification
|
Upper Tanker Specifications
|
| Item |
Unit |
Parameter |
| Thickness of Shell |
mm |
10.0 |
| Thickness of Endplate |
mm |
10.0 |
| Corrosion Allowance |
mm |
1.0 |
| Fact cubic meters |
cbm |
10cbm(10,000L) |
| Loading capacity |
kg |
Approx.4750 kg |
| Working temperature |
ºC |
-40/+55 oC |
| Tank material |
mm |
Carbon Steel Q345R(Pressure Vessel Steel) |
| Manhole |
mm |
DN450(18 inch) |
| Safety Valve |
mm |
DN50(2 inch) |
| Liquid Line |
mm |
DN50(2 inch) |
| Gas Line |
mm |
DN50(2 inch) |
| Chassis Specifications |
| Condition |
New condition/Left hand drive/4x2 |
Main details |
Brand and Model |
SINOTRUK HOWO |
| Wheelbase(mm) |
3950/4200/4400/4500/4700/5000/5200 |
| Front/Rear overhang(mm) |
1205/2310 |
| Approach/Departure angle(°) |
18/12 |
| Max. driving speed(km/h) |
90 |
| Clutch |
Reinforced diaphragm clutch |
| Brakes |
Service brake: dual circuit compressed air brake.
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Quantity |
6pcs with one spare tire |
| Specifications |
8.25R20/9.00-20/9.00R20/10.00-20/10.00R20 |
| Transmission |
Manual type, 6 Forwards and 1 reverse |
| Cabin |
It can accommodate three people, With Air conditioner |
| Engine |
Brand and Model |
Optional |
| Fuel type |
Diesel |
| Emission standard |
Optional |
Reference Photos
Two Types of Dispenser for Optional
Manufacturing Process
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
