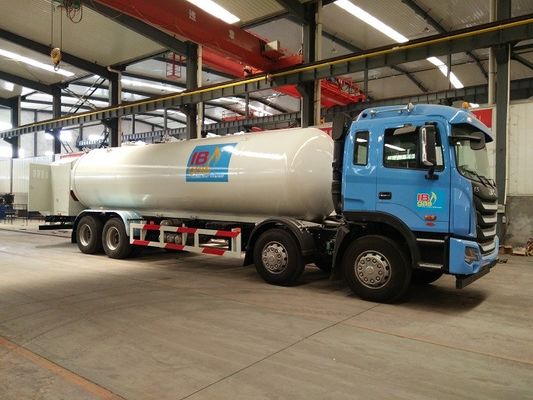

JAC 8*4 34.5cbm LPG Tank Dispenser truck 17tons 18ton with Gas Filling Machine LPG Bobtail Truck
Product Description
1. Truck Brands: Dongfeng, Sinotruk HOWO, JAC, FAW, Foton, Isuzu, etc..
2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.
3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test.
4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings.
Product Specification
| Chassis Specifications |
| Item No. |
Parameters |
| Overall Dimension |
10625x2490x3740 mm |
| Driving Model |
Left hand drive |
| Gross Vehicle Weight |
31000 kg |
| Curb Weight |
13510kg |
| Max Loading Weight |
17000kg(17Ton) |
| Wheel Base |
1900+4500+1350 mm |
| Front/rear Tread |
2050/1860 mm |
| Approach/Departure Angle |
16/12 degree |
| Front Axle |
HF6.5,7000kg X2 |
| Rear Axle |
ST18,16000kgX2 |
| Engine |
440HP,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
| Engine horsepower |
440HP EURO 3 |
| Displacement |
9726mL (Diesel) |
| Max Driving Speed |
90 km/h |
| Gearbox |
9js119 |
| Cabin |
JAC, 2 Passengers allowed,with Air Conditioner |
| Tire |
12.00R20 Steel Wire Tire, with 1 spare tire. |
| LPG tank Specifications |
| Tank Volume |
34.5cbm |
| Tank material |
Q345R |
| Tank diameter |
2450mm |
| Tank Shell thickness |
12mm |
| Tank Head thickness |
12mm |
| Tank length |
7769mm |
| Gas phase |
DN25 |
| Liquid Phase |
DN50 |
| Filling gas |
Propane(LPG) |
| Design Pressure |
1.61Mpa |
| Accessories Specifications |
| LPG Pump & Hydraulic Motor |
1 set |
| LPG Dispenser Flowmeter |
1 pc for filling cylinder |
| Hose Reel with Filling Gun |
1 set, lenth of hose reel: 15M |
| Level Gauge |
Rochester Float Ball type, at the rear of tank |
| Safety Valve |
1,DN50 |
Reference Photos
Different Kinds of Dispenser Machine for Optional
Manufacturing Process
Delivery and Shipment
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
