Sinotruk 6cbm Concrete Transit Mixer truck Construction concrete transport Truck
Product Description
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Product Specification
| Cabin |
Driving type 4*2, LHD
|
| HW76 standard flat cab, with two seats and one sleeper,with A/C |
| Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
7630×2490×3680 |
| Wheel base (mm) |
3600 |
| Approach/Departure angle(°) |
21/24 |
| Weight in KGS |
Tare Weight |
5860 |
| payload |
8000 |
| Max. driving speed(km/h) |
90 |
| Engine |
Brand |
Yuchai 180HP |
| Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) |
180 |
| Emission standard |
Euro 2or3 |
| Gearbox |
8 forwards & 1 reverse |
| Steering |
Left hand drive |
| Tire |
10.00R20 tubeless tires with one spare |
| Mixer Drum |
Mixer Capacity |
6 cubic meters |
| Drum thickness |
6mm |
| Blade thickness |
4mm |
| Tanker Material: |
16MnQ345 Carbon Steel |
| Filling Rate(%) |
59 |
| Input Speed (m3/min) |
≥2.8 |
| Output Speed (m3/min) |
≥1.2 |
| Surplus Ratio |
≤0.5 |
| Tanker Rotate Speed(rpm) |
0~17 |
|
Drum Drive System
|
Hydraulic Pump |
Italy Brand: PMP |
| Hydraulic Motor |
Italy Brand: PMP |
| Speed Reducer |
Germany Brand: ZF |
| Radiator |
KAITONG |
| Water Tank Volume(L) |
400
|

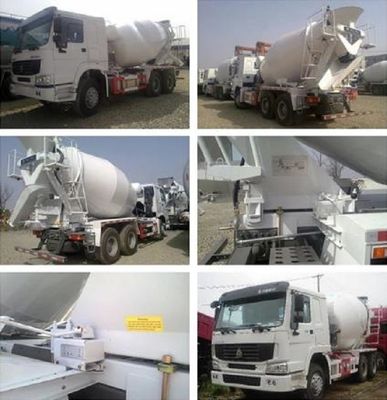

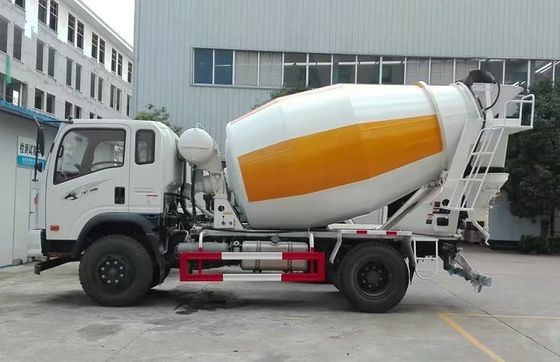

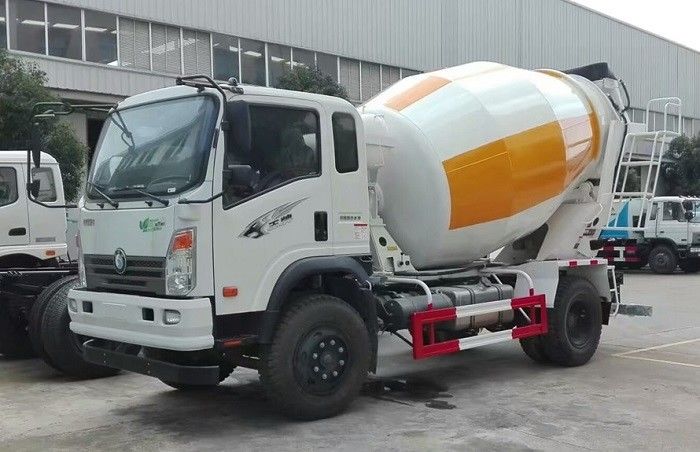

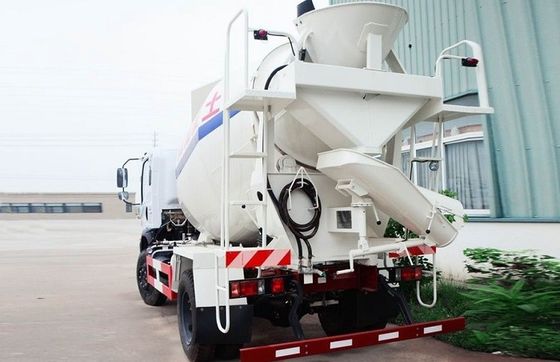

Reference Photos
Main Structure Diagram
Delivery and Shipment
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of concrete mixer trucks I can order from your company?
A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied concrete mixer truck to any overseas companies?
A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
