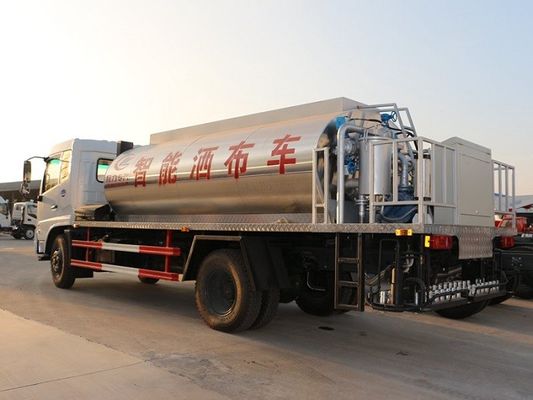

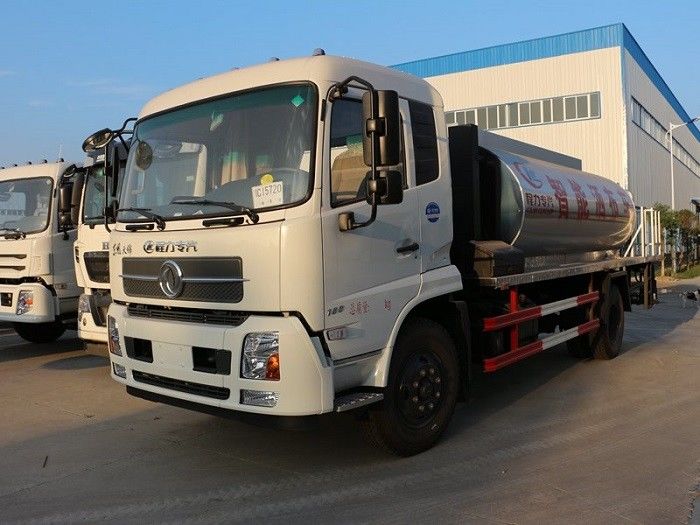

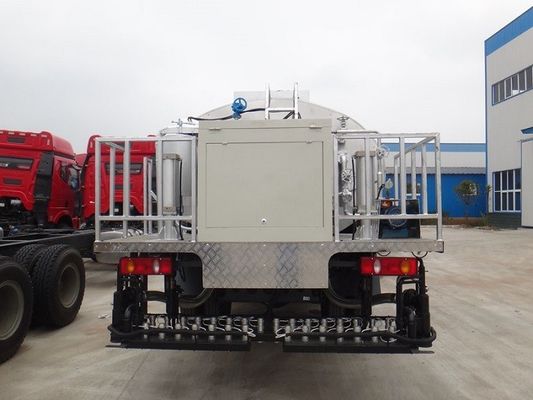

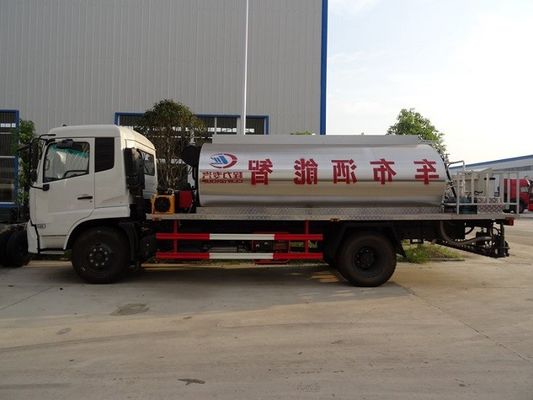

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck
Product Description
1. Can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.
Product Specification
| Cabin |
Extended cabin, LHD , photo for reference |
| Vehicle Main Dimensions |
Body dimensions (L x W x H)mm |
8998*2490*3200 |
| Wheel base (mm) |
5000 |
| Wheel track (front/rear) (mm) |
1430/2568 |
| Weight in KGS |
Tare Weight |
9750 |
| Payload |
6055 |
| Front axles loading capacity |
1x6000 |
| Rear axles loading capacity |
1x9000 |
| Max. driving speed(km/h) |
80 |
| Engine |
Brand |
Cummins |
| Model |
B190 33 |
| Type |
Euro-III emission, intercooler, turbocharge |
| Horse Power |
190 HP |
| Max Torque |
550 N.m |
| Tank Capacity |
10 cbm |
| Spray Width |
6000mm |
| Hydraulic Pump Model |
CBQ-F540 |
| Spray Value |
0.5-3.0 ( Kg ) |
| Hydraulic Motor |
L2F63W2P2( Liyuan ) |
| Insulation Thickness |
50mm |
| Controller |
ZM - I |
| Nozzles |
39 |
| Burner |
G20 ( Riello ) |
| Asphalt Pump |
QGB450 |
| Generator(Converter) |
EC6500CX |
Reference Photos
Working Scene
Delivery and Shipment
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of bitumen distribution truck I can order from your company?
A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of bitumen distribution truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?
A: Our bitumen distribution truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
