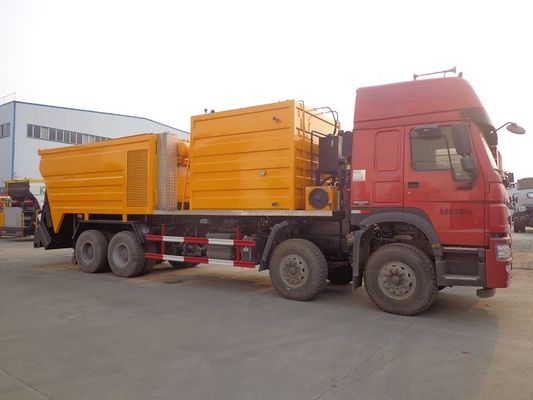

Howo 6*4 Road Construction Bitumen Tank and Gravel Synchronous Slurry Seal Chip Sealer Truck
Product Description
1. Synchronous gravel sealing layer is a special equipment that is synchronous gravel sealing and bonding materials (modified emulsified asphalt) simultaneously spread on the road, and is rolling through the formation of a single natural asphalt Crushed stone wear layer. It is mainly used as a pavement layer, also can be used for low-grade road surface layer.
2. Synchronous gravel sealing technology is the biggest advantage of simultaneous sprinkling of adhesive materials and stone, to achieve high temperature sprayed onto the road surface without the temperature under the conditions of gravel combined with the immediate effect, so as to ensure that the binder and stone Between the firm bond.
3. Synchronous gravel seal has good anti-skidding performance and seepage-proof performance, which can effectively cure diseases such as lean oil, grain falling, slight net cracking, rutting and subsidence, and it is mainly used for the preventive maintenance and corrective maintenance of roads, as well as to improve the anti-skid performance of high-grade pavement, and both the highway or ordinary highway can use this conservation of new technologies.
Product Specification
| Chassis model |
HOWO 380HP |
| Overall dimensions |
mm |
10200*2500*3563 |
| Wheel base |
4600+1350 |
| Fact cubage |
m3 |
Asphalt tank |
8m3 |
| Gravel tank |
12m3 |
| curb weight |
kg |
17370 |
| GVW |
25000 |
| Engine |
Power |
280KW |
| Displacement |
4750mL |
| Torque |
N.m |
| Max speed |
km/h |
90 |
| Tire specification |
10.00R20 |
Drive seat |
LHD |
| Electric system |
24v |
transmission |
10speed |
| Color |
Identify by customer |
| Equipment |
| bitumen pump |
QGB950,680L/MIN |
| Motor |
05-130-BD31 |
| Proportional valve |
taiwan EFBG-03-160-HF |
| Control |
Simens CLW32-01,by computer |
| Asphalt nozzle |
32nos |
| burner |
G20 from Italy |
| Heat oil pump |
10-25-160 |
| motor |
5.5KW petrol |
| Spray width |
4M |
| Spray capacity |
0.2-4.0kg/m2 |

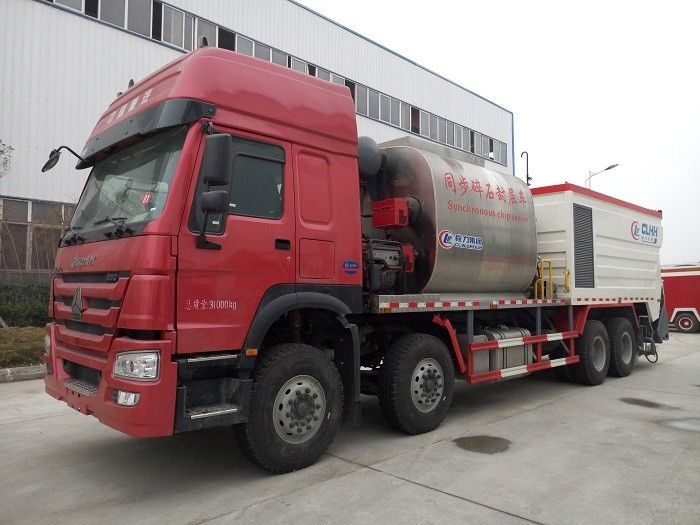

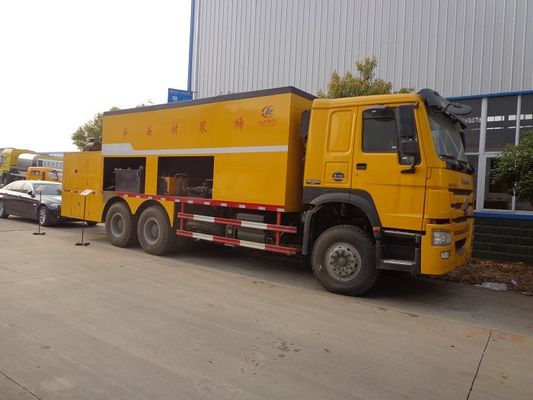

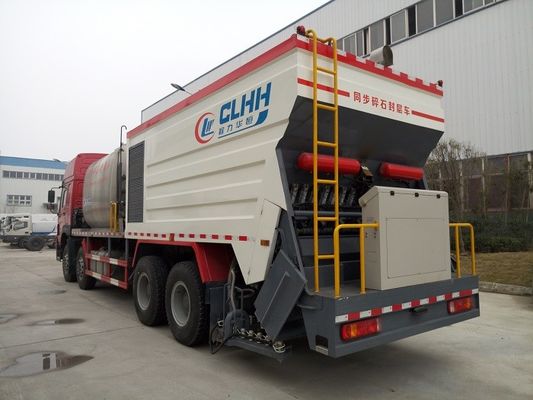

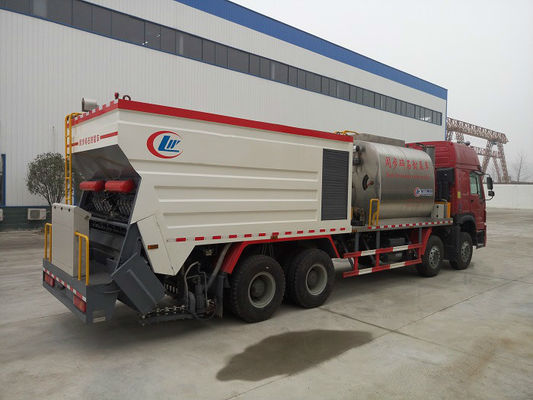

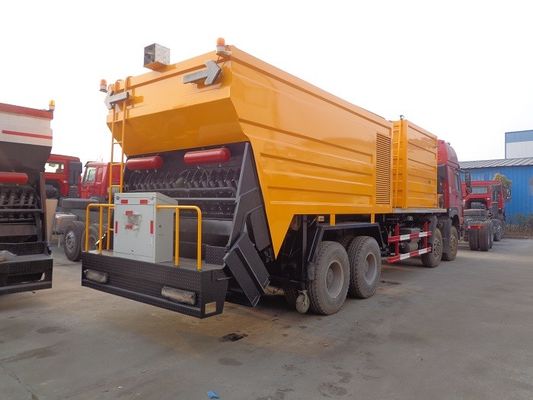

Reference Photos
Main Structure Diagram
Working Scene
Delivery and Shipment
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of road construction truck I can order from your company?
A: We can supply various sizes of road construction truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of road construction truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?
A: Our road construction truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
