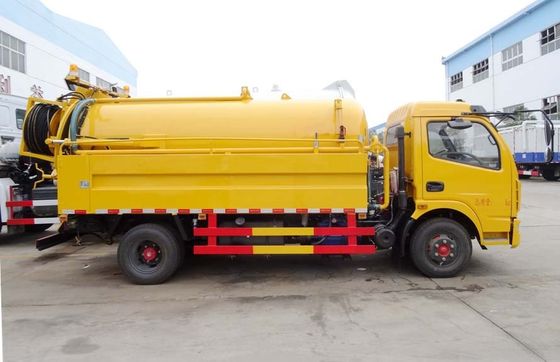

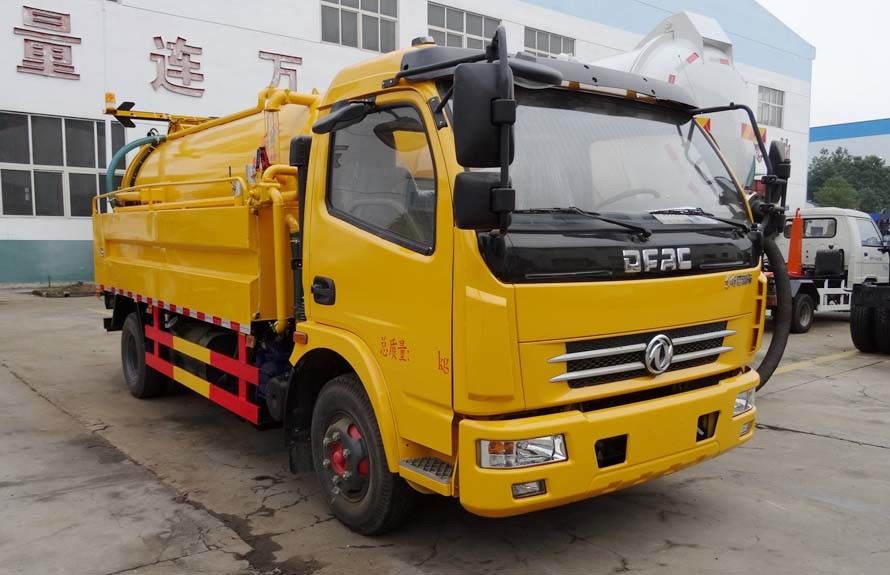

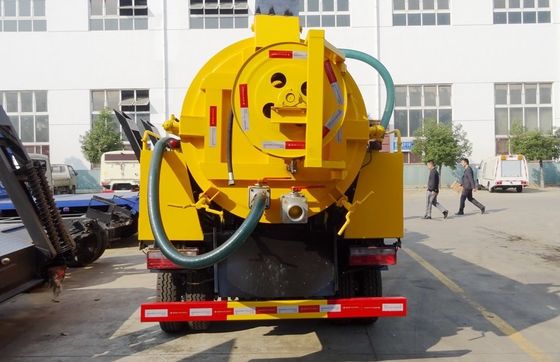

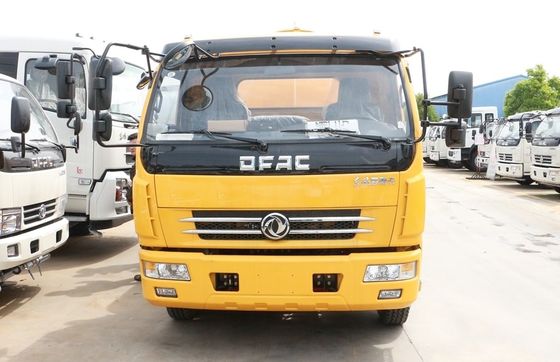

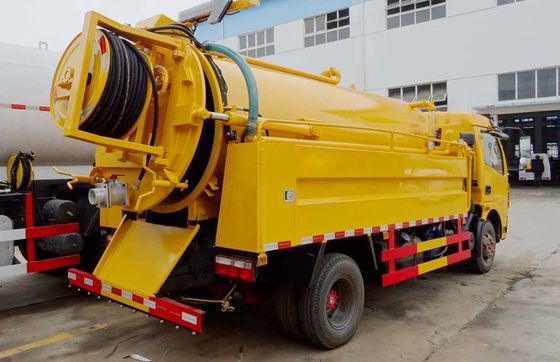

Dongfeng 2cbm water tank 2cbm sewage tank High Pressure Washing and Cleaning Vacuum Sewage Suction Tanker Truck
Product Description
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Product Specification
| Product Name |
Dongfeng high pressure washing and cleaning sewage suction tanker truck |
| Cabin |
Single row cab, two doors, rated passengers 2 or 3 |
|
Chassis
|
Brand |
Dongfeng |
| Drive type |
4*2 |
| Tire |
7.00R16 with 1 spare tire |
| Tire No. |
6+1(spare) |
| Braking System |
oil brake |
| Transmission |
Manual, 5 forward and 1 reverse |
| Engine |
fuel type |
diesel |
| Horse Power(kw/hp) |
70kw/95hp |
| Displacement(ml) |
2545ml |
| Emission standard |
Euro 3/2 |
|
Dimension & weight
|
Overall dimension (L*W*H/mm) |
5850x2000x2380mm |
| Axles No. |
2 |
| Curb Weight(kg) |
3800 |
| Max speed(km/h) |
90 |
| performance parameter |
Water Tank volume(L) |
2000 |
| Sewage Tank volume(L) |
2000 |
| Tank material |
5mm carbon steel or stainless steel ,round tank |
| Vacuum pump |
high quality special vacuum pump, vertical suction lift is about 7-10m. |
| Standard configuration |
inspect window, one gravity mouth, cleaning apparatus,5 meter long suction pipe, oil-water separators, overflow valve, etc, |
| Main function |
With self-priming, self-discharging function, with dump function, rear door is controlled by hydraulic. |
Reference Photos
Main Structure
Working Scene
Delivery and Shipment
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
