Straight Arm Manlift Telescopic Type Bucket Boom Aerial Lift Truck 18m 20m 22m

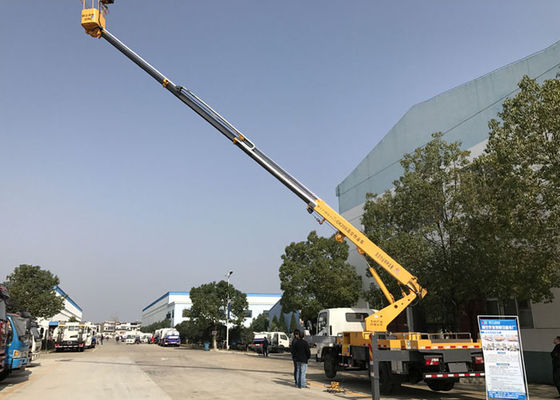

تصویر بزرگ : Straight Arm Manlift Telescopic Type Bucket Boom Aerial Lift Truck 18m 20m 22m

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, SGS, BV
شماره مدل:	CLW5070BPG

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

تایپ کنید:	کامیون بالابر هوایی نوع تلسکوپی	ظرفیت سطل:	200 کیلوگرم
اندازه سطل:	1000x700x1250mm	نوع بازوی کار:	نوع H
حداکثر ارتفاع عملیات:	18 متر تا 22 متر	حداکثر برد عملیاتی:	8 متر ~ 9 متر
برند شاسی:	دانگ فنگ، ISUZU و غیره	مارک موتور:	ISUZU، کامینز
گارانتی:	1 سال
برجسته کردن:	aerial platform truck,aerial work platform truck , aerial work platform truck

Product Description

High Altitude Operation Straight Arm Manlift Telescopic Type Bucket Boom Aerial Platform Truck 18m 20m 22m

Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
Full Computer Control System with Danger Waring System.
LCD Screen in Both the Bucket and Truck to Display the Working Status.
Rectangular Shape Arms to Increase the Arm Strength.
V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

Product Show

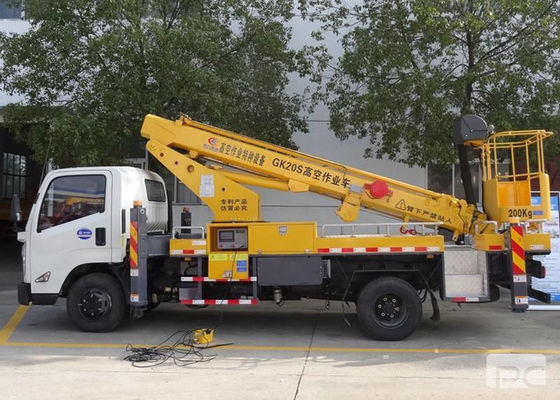

Straight Arm Manlift Telescopic Type Bucket Boom Aerial Lift Truck 18m 20m 22m 0

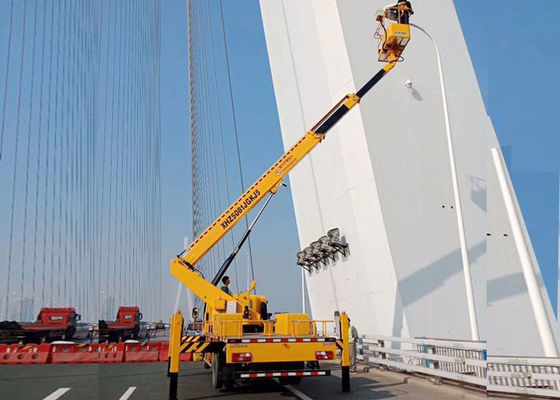

Straight Arm Manlift Telescopic Type Bucket Boom Aerial Lift Truck 18m 20m 22m 1

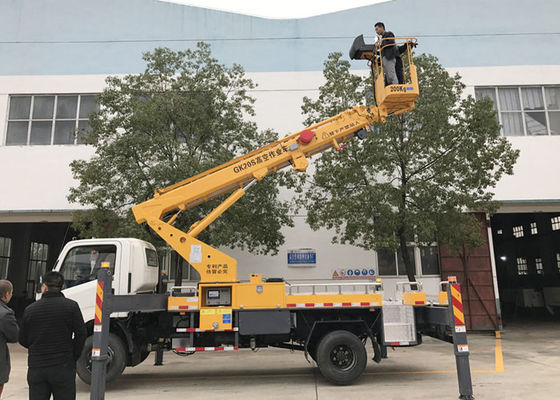

Straight Arm Manlift Telescopic Type Bucket Boom Aerial Lift Truck 18m 20m 22m 2

Product Details

Chassis
Chassis brand:	Dongfeng,EQ1101GLJ2
Drive type:	Manual, left hand drive,optional right hand drive
Drive wheel:	4*2
Tyre:	9.00-20, 6+1pieces
Control system:	Electrically hydraulic system
Transmission:	Six speed levers,
	6 speed forward with 1 reverse
Chassis dimension:	712024622710mm
Braking system:	Air braking
Clutch:	dry clutch, hydraulic remote control
Wheel base:	3950mm
Axis number:	2 pieces
Cab Passengers:	5 passengers
Engine
Engin:	Cummins,EQB160-20
Horse power:	185HP
Exhaust:	6700CC
electric system:	24V
Emission standard:	Euro 3
Max speed:	90km/h
Fuel:	Diesel,optional gasoline

Superstructure main technical Parameters
Max operation height		20m(= Working bucket’s Max height above ground+ Industry unified standard human height 1.7m)
Boom	Working booms type	Three folded arms
Boom	Boom’s max lift angle	65°
Hydraulic system	Hydraulic pump	Gear pump
	Hydraulic system pressure	≤16Mpa
	Hydraulic tank volume	80L
Working bucket	Max height above ground	18.3(m)
	Max operation range	8.7(m)
	Operation range at min operation height	3.07(m)
	Operation range at max operation height	11.5(m)
	Working bucket slewing angle	360°
	Rated load	200kg
outrigger	Outrigger Type	H type
	Numbers of outrigger	4
	Horizontal span	2930(mm)
	Longitudinal span	4500(mm)
Hook	Max lift weight	800(kg)
Hook	Max lift height	8.5(m)
Operation	Control method	Manual control
	Outrigger control	Horizontal / vertical individually adjustable
	Operating position	Working bucket, on the truck or under the truck

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
