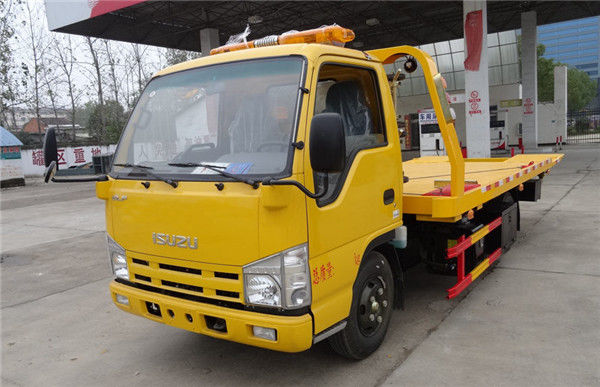

ISUZU 4X2 100HP Wrecker Tow Truck 4.2 Meters Flatbed Accident Recovery Truck

تصویر بزرگ : ISUZU 4X2 100HP Wrecker Tow Truck 4.2 Meters Flatbed Accident Recovery Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW-50784

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم، کشتی فله، رو-رو
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، MoneyGram، Western Union
قابلیت ارائه:	300 واحد

مخاطب

توضیحات محصول جزئیات

موتور:	ایسوزو 100 اسب بخار	جعبه دنده:	5 جلو، 1 عقب
مواد:	فولاد کربن Q235A	ظرفیت بلند کردن:	4 تن
لاستیک:	7.00-16 (7 قطعه)	استاندارد انتشار:	یورو 4
رنگ:	نیاز مشتری	استفاده:	امداد و نجات جاده ای
برجسته کردن:	heavy duty tow truck,emergency tow truck , emergency tow truck

ISUZU 100HP Wrecker Towing Truck Accident Recovery Truck

Product Description

1) Purpose of 3ton towing recovery truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

2) Optional brand of 3ton towing recovery truck:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

3) Spare parts of 3ton towing recovery truck:

Italy brand multi-way valve and balance valve;

Gernamy Roxroth technology hydraulic cylinder and joint;

imported sealing element;

strengthed checked plate

4) Capacity range of towing recovery truck:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton

ISUZU 100HP Wrecker Tow Truck
Item No.	Parameters
Overall Dimension	5995x2300x2200 mm
Driving ModelL	LHD
Cabin	2~3 persons
Gross Vehicle Weight	4495 kg
Curb Weight	3700 kg
Loading Weight	3500 Kg
Wheel Base	3360 mm
Front/rear Tread	1015/1575 mm
Approach/Departure Angle	24/16 degree
Front Axle	2000 kg
Rear Axle	3500 kg
Engine	ISUZU
Engine horsepower	100 HP EURO IV
Displacement	2999mL (Diesel)
Max Driving Speed	90 km/h
Tire	7.00-16( 7 pieces)
Body Material	Q235A carbon steel
Lifting Weight	3000kg
Loading Plate Dimensions	4200*2320mm
Hydraulic tailgate	1200mm
Steel Rope Length	25m
Winch Speed	5m/min
Towing Weight	4000kg
Wheel Lift Max. Length	1640mm
Wheel Lift Extension	1340mm
Tool Box no.	1
Auxiliary wheel no.	2
Working Light	2
Bandage	4 set
“L” bracket no.	1 pair
LOGO	Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

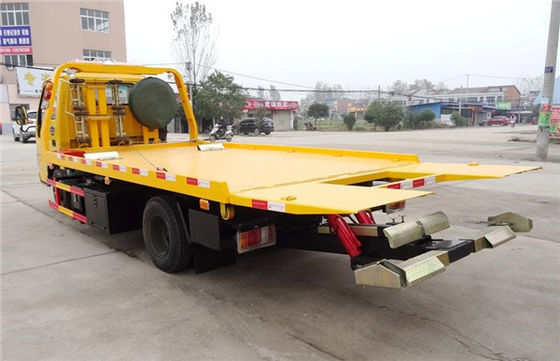

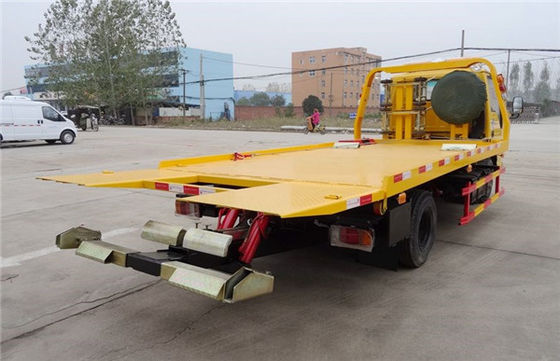

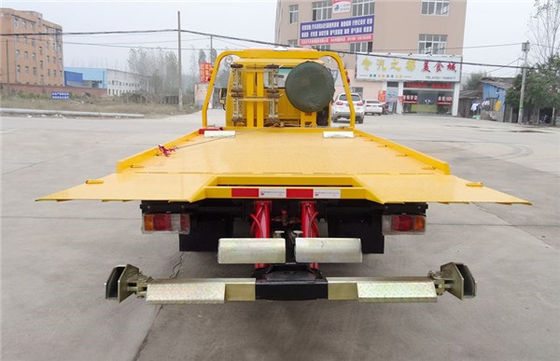

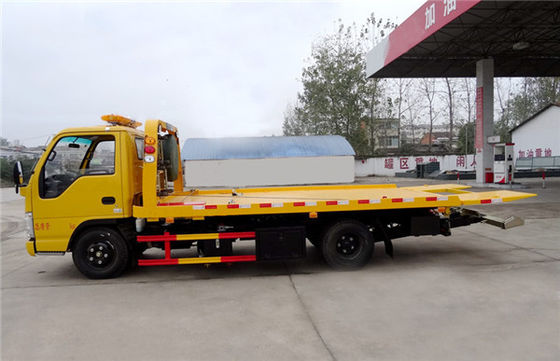

Working show

Structure drawing

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of towing recovery truck I can order from your company?

A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied towing recovery truck to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
