Forland 5cbm Fuel Oil Dispenser and Delivery Tank Truck , 4*2 Petrol Diesel Refueling truck

تصویر بزرگ : Forland 5cbm Fuel Oil Dispenser and Delivery Tank Truck , 4*2 Petrol Diesel Refueling truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, BV, SGS
شماره مدل:	CLW5089

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	1000 واحد در ماه

مخاطب

توضیحات محصول جزئیات

اندازه مخزن:	5CBM 10CBM 12CBM 15CBM 20CBM، طبق نیاز مشتری.	ظرفیت مخزن:	4 تن 8 تن 10 تن 12 تن 16 تن و غیره
ماده مخزن:	فولاد کربن Q235 / فولاد ضد زنگ / آلیاژ آلومینیوم	شکل مخزن:	مربع گرد / بیضی / گرد
رنگ:	سفارشی	فرمان:	RHD، با توجه به کشورهای مختلف
برند شاسی:	Foton/Forland، Dongfeng، Isuzu، Sinotruk/Howo، FAW و غیره.	گارانتی:	1 سال
برجسته کردن:	gas delivery truck,oil tanker semi trailer , oil tanker semi trailer

Forland 5cbm Oil Dispenser Tank Truck

Product Description

1. Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.

3. Advantage: High quality with competitive price.

Product Specification

General Technical Parameters
Overall Dimension			5990×1960×2400(mm)
Gross Vehicle Weight			8500(Kg)
Curb Weight			3365(Kg)
Chassis Specification
Chassis Brand		Forland
Drive model		4*2
Cabin		Forland D1695, Single, RHD, with air condition.
Number of Passengers		2
Engine	Model	BJ493ZLQ1/108HP, 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, withABS.
	Power	80KW/108HP
	Emission standard	EUROⅡ
	Displacement	3707(ml)
	Fuel type	Diesel
Gearbox		4Forwards & 1Reverse, manual operation. With power steering.
Brake System		Oil break rotation
Wheel Base		3360mm
Front/Rear Axle Loading		2000/4000(Kg)
Tire		7.00R16, 1PC including 1 spare tire
Max Driving Speed		90(km/h)

Upperstructure Specification
Oil Tank	Effective Volume	5CBM
	Transport Oil Type	Fuel
	Tank Material	Q235, carbon steel( also can choose stainless steel,aluminum )
	Tank Shape	Square Round
	Manhole	1unit Euro Standard manhole, DN500mm
Refueling System	1. Oil pump; 2. Oil dispenser machine; 3. Hose reel with filling gun.
Others	Emergency cut-off valve, Lifting fence, electrostatic wire reel, ladder, GPS, etc.
Options	Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe.

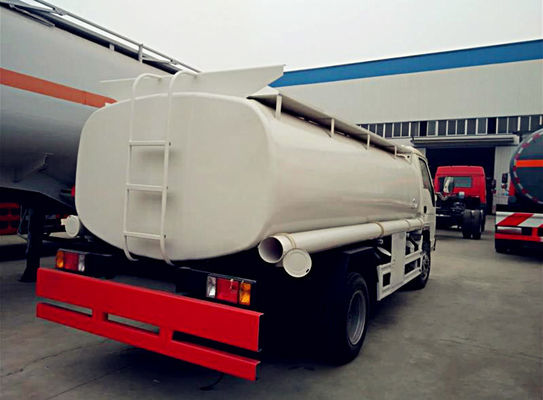

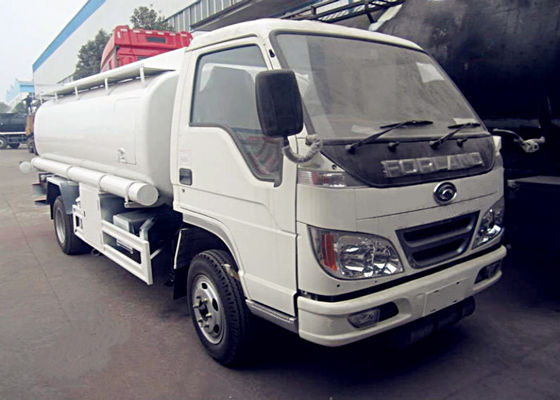

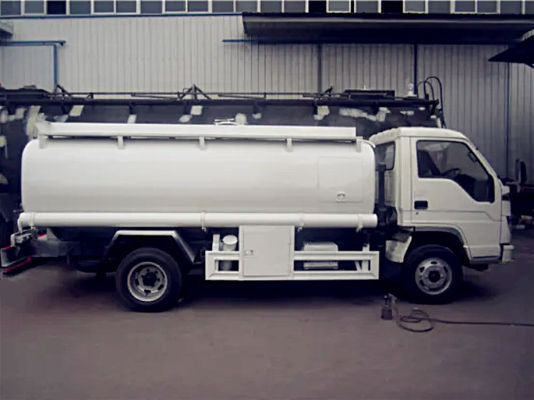

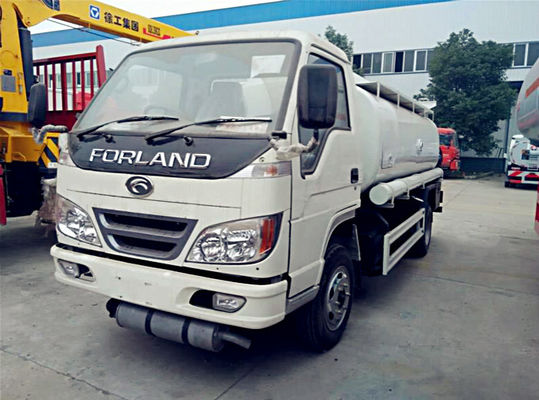

Product Show

Forland 5cbm Fuel Oil Dispenser and Delivery Tank Truck , 4*2 Petrol Diesel Refueling truck 0

Forland 5cbm Fuel Oil Dispenser and Delivery Tank Truck , 4*2 Petrol Diesel Refueling truck 1

Forland 5cbm Fuel Oil Dispenser and Delivery Tank Truck , 4*2 Petrol Diesel Refueling truck 2

Forland 5cbm Fuel Oil Dispenser and Delivery Tank Truck , 4*2 Petrol Diesel Refueling truck 3

Sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of Helicopter refueling truck I can order from your company?

A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of Helicopter Refueling Truck products?

A: China GB local standard.

Q3: Can we adopts International brand fuel pump for helicopter refueling truck?

A: Sure, we already cooperated with many international brand supplier.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
