SHACMAN 12CBM Small Concrete Mixer Truck Machine For Ready Mix Transporter

تصویر بزرگ : SHACMAN 12CBM Small Concrete Mixer Truck Machine For Ready Mix Transporter

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,
شماره مدل:	CLW5150

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

نام تجاری:	ششم	سوخت:	دیزل
حجم:	12 CBM	موتور هیدرولیکی:	ایتون، پی ام پی،
پمپ هیدرولیک:	EATON، PMP، Bonfiglioli،	کاهنده:	ZF، PMP، Bonfiglioli، Sauer
برجسته کردن:	concrete mixing transport trucks,mobile concrete mixer truck , mobile concrete mixer truck

SHACMAN 6x4 Carbon Steel 12CBM Concrete Mixer Truck for ready mix transporter

Product Description

1. Chassis of concrete mixer truck: Dongfeng, Sinotruk, FOTON/ Forland, Faw.

2. High Tension Steel of concrete mixer truck:Q345B Tank Material in 5mm body & 6mm End plate.

3. Motor Brand of conrete mixer truck:International Brand Motor, Pump, Reductor & Radiator

4. 400Liter Water Tank with Pressure Water Filling

5. Water Filling System to Keep the cement moisture.

6. Tank and hand Washing Device.

Specifications

Cabin	Driving type 6x4, LHD
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	10450×2500×3950
	Wheel base (mm)	4350+1300
	Wheel track (front/rear) (mm)	1500/1860
	Approach/Departure angle(°)	32/14
Weight in KGS	Tare Weight	16000
	payload	8870
	Front axles loading capacity	9000
	Rear axles loading capacity	16000
Max. driving speed(km/h)		90
Engine	Brand	Weichai
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	336
	Emission standard	Euro II
Gearbox	9 forwards & 2 reverse
Steering	Left hand drive
Tire	12R20 tubeless tires with one spare

Mixer Drum	Mixer Capacity	14 cubic meters
	Drum thickness	6mm
	Blade thickness	4mm
	Tanker Material:	Q345 Carbon Steel
	Filling Rate(%)	59
	Input Speed (m3/min)	≥2.8
	Output Speed (m3/min)	≥1.2
	Surplus Ratio	≤0.5
	Tanker Rotate Speed(rpm)	0~17
	Hydraulic Pump	Italy Brand: PMP
Drum Drive System	Hydraulic Motor	Italy Brand: PMP
	Speed Reducer	Germany Brand: ZF
	Radiator	KAITONG
	Water Tank Volume(L)	300

Diagram

SHACMAN 12CBM Small Concrete Mixer Truck Machine For Ready Mix Transporter 0

Working Photos

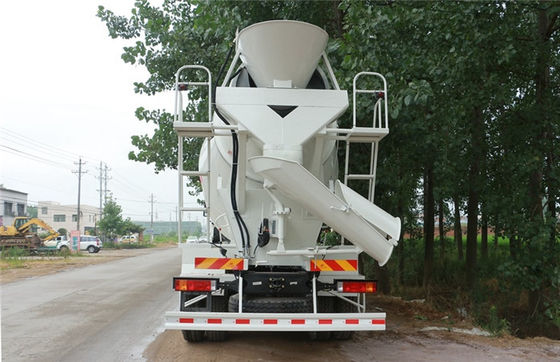

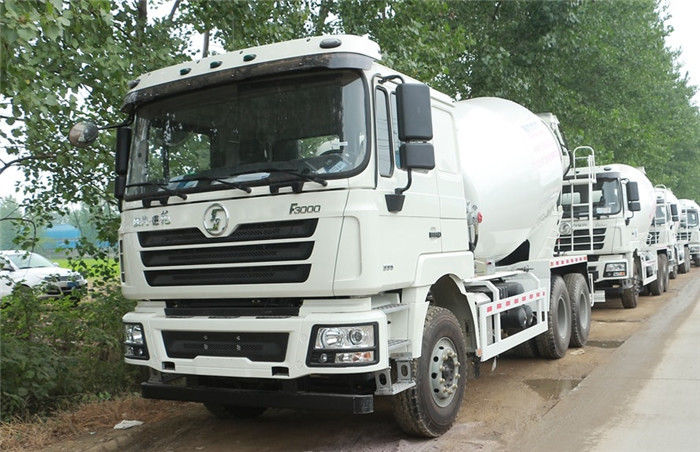

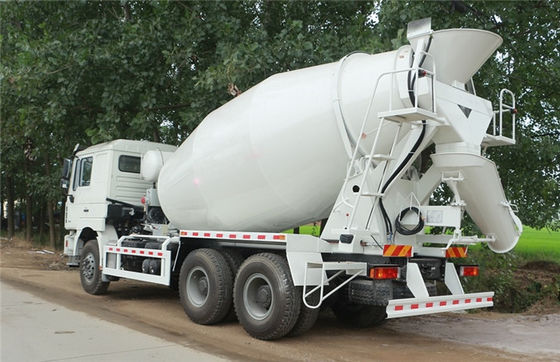

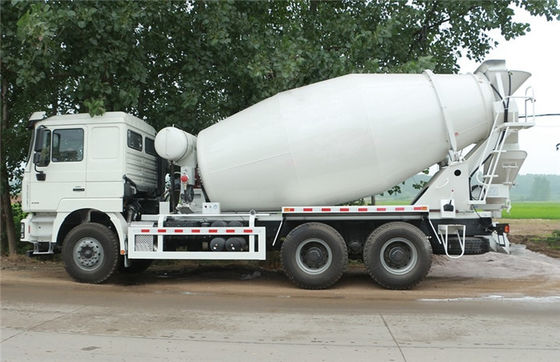

SHACMAN 12CBM Small Concrete Mixer Truck Machine For Ready Mix Transporter 1

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of concrete mixer trucks I can order from your company?

A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied concrete mixer truck to any overseas companies?

A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
