10CBM / 10000 Liters LPG Gas Storage Tank With Dispenser Equipments And Scales

تصویر بزرگ : 10CBM / 10000 Liters LPG Gas Storage Tank With Dispenser Equipments And Scales

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, ISO, ASME
شماره مدل:	CLW1020

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	200 واحد در ماه

مخاطب

توضیحات محصول جزئیات

حجم تانکر:	10CBM/10000 لیتر	ماده مخزن:	Q345R/SA516
فشار طراحی:	1.71MPa 1.77MPa 17.1bar، 17.7bar	مواد بارگیری:	پروپان/گاز نفتی مایع/LPG
چگالی متوسط:	420 کیلوگرم در متر مکعب، 450 کیلوگرم در متر مکعب، 460 کیلوگرم در متر مکعب، 480 کیلوگرم در متر مکعب،	تست خواص مکانیکی:	تست کشش، استحکام، ضربه
ضخامت پوسته و سر:	10 میلی متر ، 12 میلی متر	خدمات پس از فروش:	تامین قطعات یدکی و پشتیبانی مهندسی
رنگ و آرم:	به عنوان درخواست مشتری	گارانتی:	1 سال
برجسته کردن:	propane storage tanks,large lpg storage tanks , large lpg storage tanks

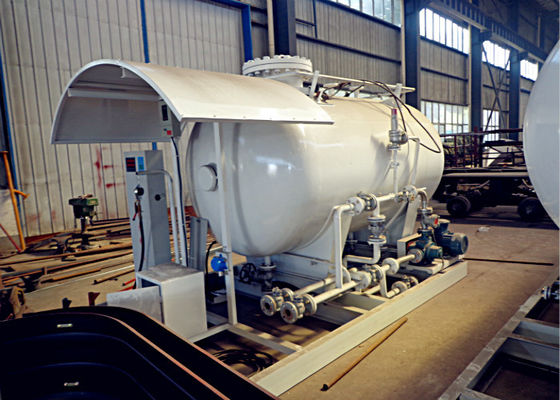

10m3/10000Liters LPG Skid Station, Completed Bottling Plant Equipments with Scales

Product Description
1. Storage medium: LPG, Liquid ammoina and Aether, etc.
2. LPG skid station capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 10m³ LPG skid station.
3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008.

Product Specification

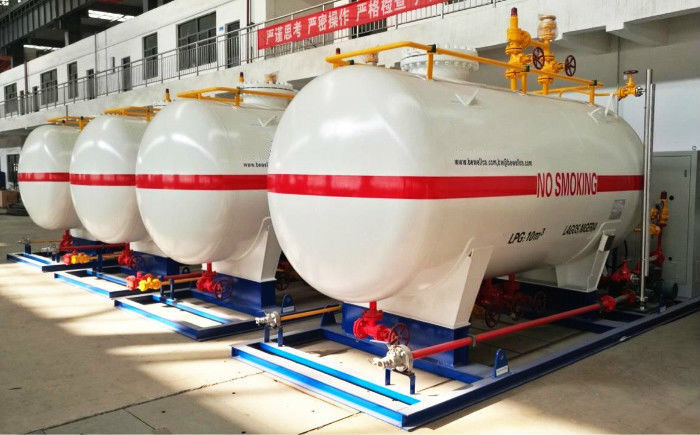

10 CBM LPG Tank Specifications
Volume of Tank		10 CBM
Filling Weight		5000kg
Tank Weight		2950kg
Thickness of Shell		10 mm
Thickness of Head		12 mm
Tank Diameter		1800 mm
Tank Dimensions(length x width x height)		As designed
External Dimensions(length x width x height)		As designed load in a 40’HQ Container
Material of Tank		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa
Corrosion Allowance		1 mm
Medium Density		420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main Parts of LPG Tank
Item	Specification				Quantity
Discharge Pipe	DN50				1
Inflow Pipe	DN50				1
Outlet	DN50				1
Gas phase balance pipes	DN50				2
Manhole	DN450				1
Drain Hole	DN50				1
Other Accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature gauge.
Part List of LPG Skid Station
Item		Specification		Quantity
LPG Tank		10cbm		1
Pump		2" inlet & 2" outlet		1
Explosive-proof Motor		380V with 220V adapter		1
Cylinder filling scale				2
Pipes				1
Cut-off Valve		J41N-40 DN50		25
		J41N-40 DN15		10
Safety Valve		A42F-25 DN50		1
Pipe Safety Valve		A21F-25 DN25		1
Level Gauge		Float ball type		1
Discharging pipe		L=4M DN50/DN25		1
Shock-absorbing Tube		L=500mm DN50		2
Flange		2.5MPaDN15		20
LPG Pump & Motor Specifications
		Pump Brand	Chinese Brand
		Model	YQB15-5
		Medium	Liquid petroleum gas
		Working Pressure Differential	≤0.5Mpa
		Flow Speed	15.5M3/H
		Applied Power	5.5kw
		Inlet & Outlet Flange	2”NPT / 2" NPT
		Moter	Chinese Brand
		Specification	7.5HP(5.5KW), Explosive Proof Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable.

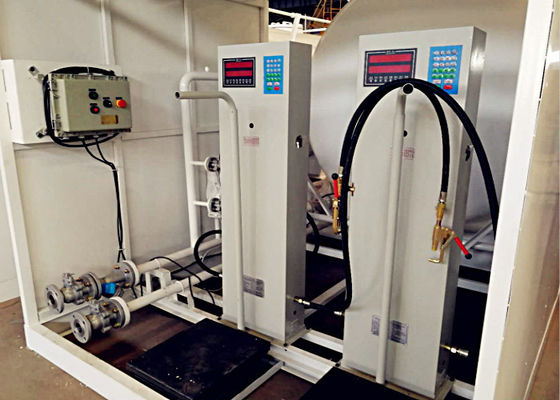

Cylinder Weight Scale Specification
		Power	100~240V/50~60HZ
		Scale Capacity	2kg to120kg
		Valve Serving Life	2 years
		Operating Pressure	0~1.6 Mpa
		Division Value	100g
		Power Supply	optional for Ex-proof battery and AC power
		Ex-proof Battery Input	100~240V,50~60HZ,output:9V 2A,charger,DC power 3.7V 3000mAh

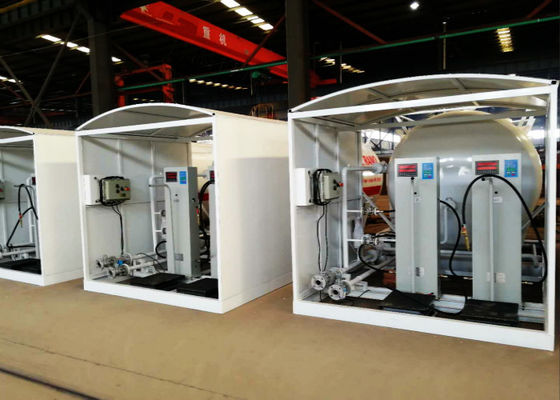

Product Show

Our Service

1)Quick feedback to solve your questions;
2)Professional engineering and production team;
3)Related Accessories and spare parts offered,no future worries;
4)Regular customer after-sale visiting;
5)Free technical staff training and guidance;
6)Reasonable price and good quality;
7)Quick delivery and shipment.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
