Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two

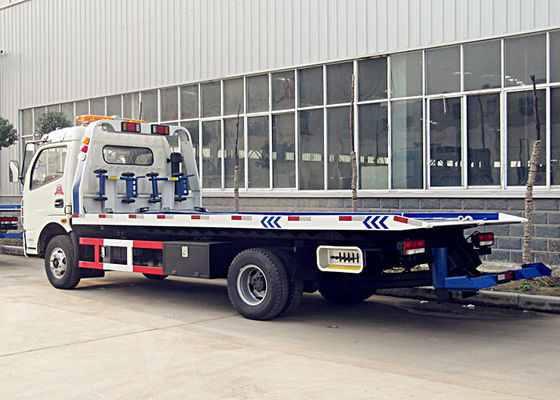

تصویر بزرگ : Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC SGS BV
شماره مدل:	CLW5076BGP

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند کامیون:	دانگ فنگ، ISUZU، Howo، Foton، JAC و غیره	وزن بلند کردن حداکثر:	3 تن؛ 4 تن؛ 5 تن
حداکثر وزن بکسل:	3 تن؛ 4 تن؛ 5 تن	نوع ویرانگر:	یک یدک کش-یک-یک-بکسل-دو
اندازه کلی کامیون:	7450 x 2350 x 2440 میلی متر	ابعاد تخت:	5800 × 2100 میلی متر
طناب وینچ:	21 متر	قطر طناب:	DN12 میلی متر
سرعت رهاسازی وینچ:	3.23-8 متر در دقیقه	گارانتی:	1 سال
برجسته کردن:	heavy duty tow truck,emergency tow truck , emergency tow truck

Dongfeng 5T Wrecker Tow Truck 4*2,One-towing-Two

Product Description

1) 5Tons Wrecker Truck for Towing Broken Cars or Equipments.

2) Dongfeng Brand Chassis for Euro 2 or Euro 3 Emission

3) Spare parts of 5tons wrecker tow truck:

Italy brand multi-way valve and balance valve;
Gernamy Roxroth technology hydraulic cylinder and joint;
International Brand Sealing elements;
Strengthed Checked platform.

Product Specification

General Technical Parameters
Overall Dimension			7450x2350x2440(mm)
Gross Vehicle Weight			8275 (Kg)
Curb Weight			5110(Kg)
Chassis Specification
Chassis Brand		Dongfeng
Drive model		4*2
Cabin		Single, Right Hand Driving
Engine	Model	CY4102, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Power	88KW/120HP
	Emission standard	EUROⅢ
	Displacement	3860(ml)
	Fuel type	Diesel
Gearbox		5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Brake System		Pneumatic(Air break/exhaust brake)
Wheel Base		3800(mm)
Front/Rear Axle Loading		2500/4500(Kg)
Approach/Departure Angle		20/10(°)
Tire		8.25-16, 6pcs + 1 spare tire
Max Driving Speed		90(km/h)

Superstructure main technical Parameters
Platform Organ	Dimension	5800*2100(mm)
	Material	Q235 carbon steel
	Platform power stroke	2680(mm)
	Min angle	7.6(°)
	Max lifting capacity	3000(kg)
Winch	Quantity	1
	Winch rating towing capacity	4000(kg)
	Length of steel rope	21(m)
	Speed of winch	3.23~8 (m/min)
	Diameter of steel cable	Φ12
Lifting Organ	Rating under-hoisting capacity	2500(kg)
	Max under-hoisting capacity	2800(kg)
	Fully extended max under-hoisting capacity	1000(kg)
	Rating under-pulling capacity	6500(kg)
Other parts	Auxiliary wheels, alarm light,hooks, 4 bundling belt, automatic sliding plate.
Options	Caution light, air condition,inlet valve.

Product Show

Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two 0

Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two 1

Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two 2

Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One - Towing - Two 3

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

FAQ

Q1: What kinds of wrecker trucks I can order from your company?

A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
