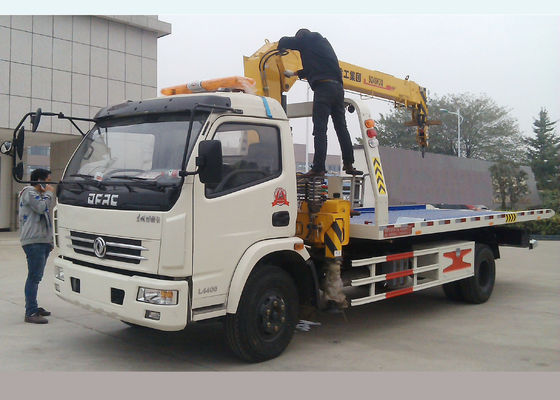

5 Meters Flatbed Wrecker Tow Truck With 3.2 Ton XCMG Crane Vehicle Lifting

تصویر بزرگ : 5 Meters Flatbed Wrecker Tow Truck With 3.2 Ton XCMG Crane Vehicle Lifting

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC SGS BV
شماره مدل:	CLW5071

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده در حساب
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند کامیون:	دونگفنگ	ظرفیت بکسل:	3.5 تن
طول تخت:	5500 میلی متر	عرض تخت:	2200 میلی متر
اندازه کلی کامیون:	7800x2280x2520mm	ورم:	1 واحد
طناب وینچ:	25 متر	قطر طناب:	DN11 میلی متر
قطر وینچ:	DN90mm	حداقل سرعت انتشار:	3.23 متر در دقیقه
اندازه جرثقیل:	3.2 تن یا 4 تن
برجسته کردن:	heavy duty tow truck,emergency tow truck , emergency tow truck

Product Description

Construction Equipment Car Rescue Sinotruk Howo Flatbed Wrecker Tow Truck

1) 3Ton Towing Recovery Truck for Towing Broken Cars or Equipment

2) Dongfeng Brand Chassis for Euro 2 or Euro 3 Emission

3) Spare parts of 3ton towing recovery truck:

Italy brand multi-way valve and balance valve;
Gernamy Roxroth technology hydraulic cylinder and joint;
International Brand Sealing element;
Strengthed Checked plate

4) Capacity range of towing recovery truck: 3ton to 50ton

5) Optional Crane: 3.2Ton XCMG or SANY PALFINGER

5 Meters Flatbed Wrecker Tow Truck With 3.2 Ton XCMG Crane Vehicle Lifting 0

Structure drawing

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Specification of howo 3ton towing recovery truck

Item No.	Parameters
Overall Dimension	5995x2300x2450 mm
Driving ModelL	LHD or RHD
Cabin	2~3 persons
Gross Vehicle Weight	4495 kg
Curb Weight	3860 kg
Loading Weight	505 Kg
Wheel Base	3360 mm
Front/rear Tread	1210/2470 mm
Approach/Departure Angle	24/12 degree
Front Axle	3310 kg
Rear Axle	4965 kg
Engine	Yunnei engine
Engine horsepower	115 HP EURO III
Displacement	3856mL (Diesel)
Max Driving Speed	90 km/h
Tire	7.00-16( 7 pieces)
Loading Plate
Body Material	Q235A carbon steel
Lifting Weight	3000kg
Loading Plate Dimensions	4450*2200mm
Loading Plate Glide Range	2700mm
Min. Slope Anglo	8 degree
Steel Rope Length	21m
Winch Speed	5m/min
Towing Weight	4000kg
Wheel Lift Max. Length	1640mm
Wheel Lift Extension	1340mm
Tool Box no.	1
Auxiliary wheel no.	2
“L” bracket no.	1
LOGO	Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of towing recovery truck I can order from your company?

A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied towing recovery truck to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
