20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine

20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine
20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine 20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine 20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine 20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine

تصویر بزرگ :  20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine

جزئیات محصول:

محل منبع: چین
نام تجاری: CLW
گواهی: CCC ISO ASME
شماره مدل: CLW1040

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: بسته برهنه
زمان تحویل: ظرف 30 روز پس از دریافت پیش پرداخت
شرایط پرداخت: L/C، T/T
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
خدمات پس از فروش ارائه شده است: تامین قطعات یدکی و پشتیبانی مهندسی حجم تانکر: 40CBM/40000Liters/20MT/20ton
ماده مخزن: Q345R/SA516 مواد بارگیری: پروپان/گاز نفتی مایع/LPG
فشار طراحی: 1.77MPa چگالی متوسط: 20Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³
تست خواص مکانیکی: تست کشش، استحکام، ضربه ضخامت پوسته و صفحه انتهایی: 10 میلی متر
برجسته کردن:

propane storage tanks,large lpg storage tanks

,

large lpg storage tanks

Product Description

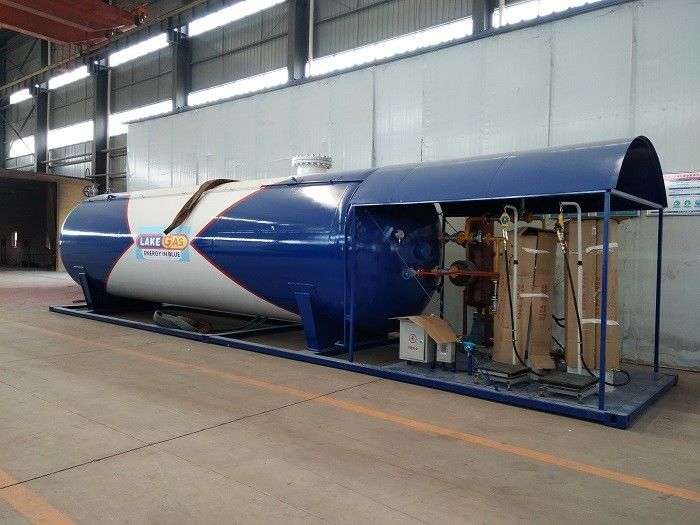

20tons completed lpg bottling plant 40cbm Skid lpg filling station with scales



1. Storage medium lpg bottling plant : LPG, Liquid ammoina and Aether etc.

2. LPG skid station capacity of lpg bottling plant: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 10m³ LPG skid station.

3. Manufacturing standards of lpg bottling plant: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008




Spec of lpg bottling plant



Volume of Tank 40CBM
Filling Weight 20000kg
Tank Weight 8630kg
Thickness of Shell (mm) 14 mm
Thickness of Endplate (mm) 14 mm
Tank Diameter (mm) 2400 mm
Tank Dimensions (mm) (length x width x height) 9270*2428*3018
External Dimensions (mm) (length x width x height) 11270*2600*3700
Material of Tank Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 1.77 MPa
Corrosion Allowance 1 mm
Medium Density 420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item Specification/ mm Quantity
Discharge Pipe DN50 1
Inflow Pipe DN50 1
Outlet DN50 1
Gas phase balance pipes DN50 2
Manhole DN500 1
Drain Hole DN50 1
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

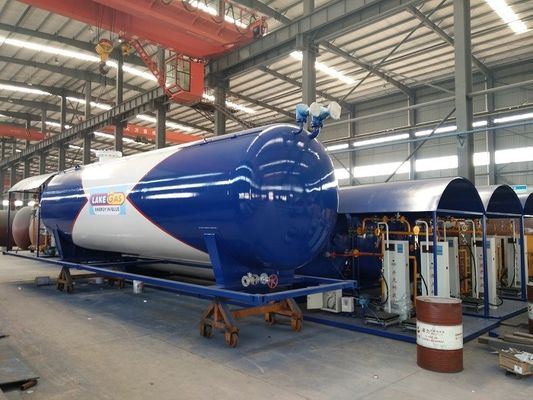

20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine 0

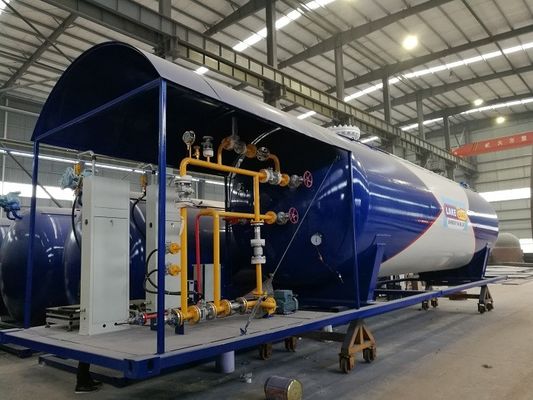

20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine 1

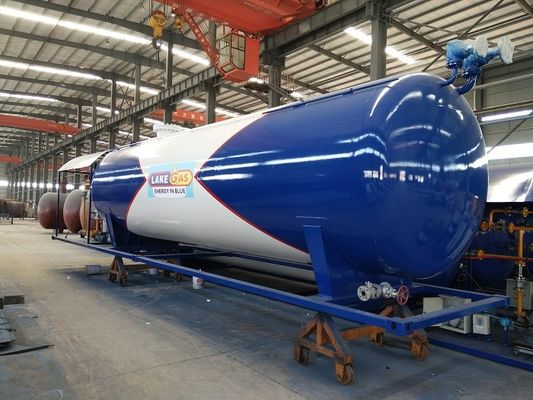

20tons 20mt 40,000liters Propane LPG Gas Station Tank With Cylinder Filling Machine 2



Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment





FAQ



Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.



Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.



Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
