40t Fresh Milk Delivery Tanks Trucks And Trailers 3 Axle Stainless Steel Milk Tank Truck

تصویر بزرگ : 40t Fresh Milk Delivery Tanks Trucks And Trailers 3 Axle Stainless Steel Milk Tank Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC BV SGS ISO
شماره مدل:	CLW9401

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	کشتی برهنه، موم شده، رو-رو، کشتی فله
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

ظرفیت:	40 تن، 40 تن، 4 تن، 45 تن، 45 تن، 45 تن	حجم:	35cbm,40cbm,45cbm
ماده مخزن:	فولاد ضد زنگ درجه غذا	متوسط:	شیر تازه، غذای مایع
برند محور:	BPW، FUWA، HJ	تعلیق:	سیستم تعلیق بادی و مکانیکی
برجسته کردن:	stainless steel tanker trailers,chemical tank trailer , chemical tank trailer

40t fresh milk delivery tanker trailer 3-axle stainless steel 40tons milk tank truck

Product Description

Fresh milk delivery tanker trailer is used for carrying vegetable oil material,fresh milk and other liquid food.Wraped with insulation layer,milk tanker trailer can avoid milk from spoiling.

Specifications of 40t fresh milk delivery tanker trailer 3-axle stainless steel 40tons milk tank truck

Main Dimensions
Overall Length	10900 mm
Overall Width	2500mm
Overall Height	3700 mm
Tare Weight	10500KGS
Total Volume	30CBM
Pay Load	30Tons
Tanker Body
Inner Tank	Stainless 304/ 4mm steel sheet	Compartment	Single or 2~4
Outer Tank	Q235A/2mm,304L	Insulation layer	80mm polyurethane foaming material
Chassis
Axles	3 axles, FUWA Brand 13 ton
Suspension	Mechanical suspension with 8-pcs leaf spring
Braking System	WABCO Emergency Relay Valve; T30/30+T30 air chamber
Rim & Tire	11.00R22.5 tubeless tire with one spare tire with 8.25R22.5 wheel rim, 13 pieces
Key Accessories
Manhole Cover	500mm manhole cover, 3 sets
Air-charging system	2” main hole, 2”check valve, 1.5” safe valve, 0.4Mpa gauge
Discharge Pipe	4” seamless steel tube
Quadratic blow	1” diameter check valve
Discharge valve	Stainless steel valve

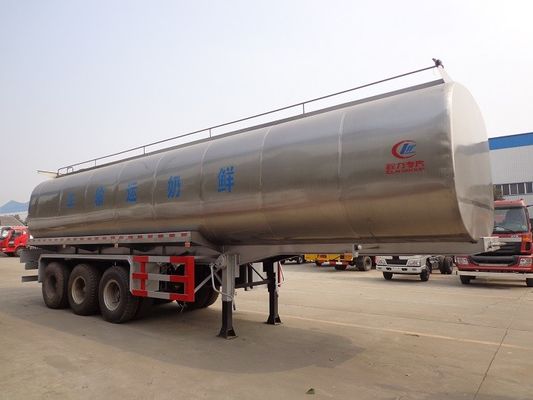

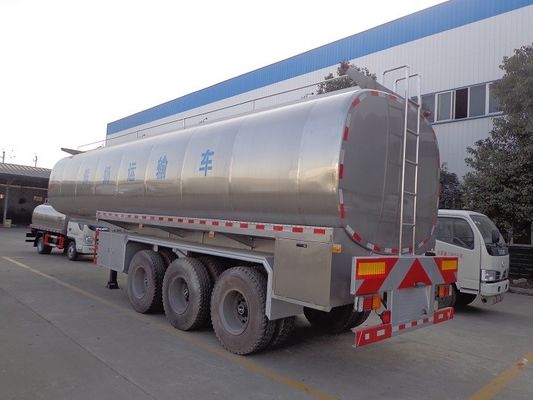

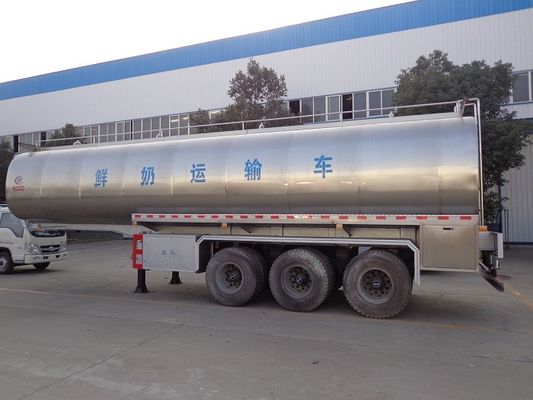

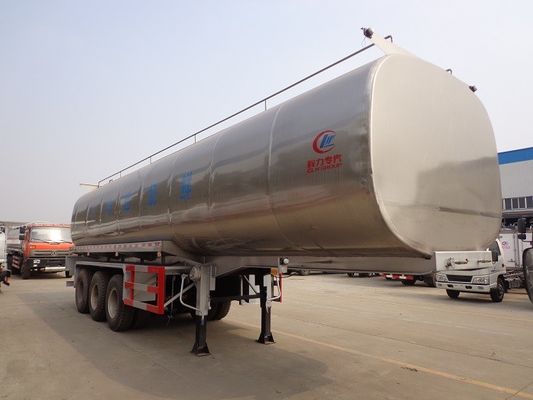

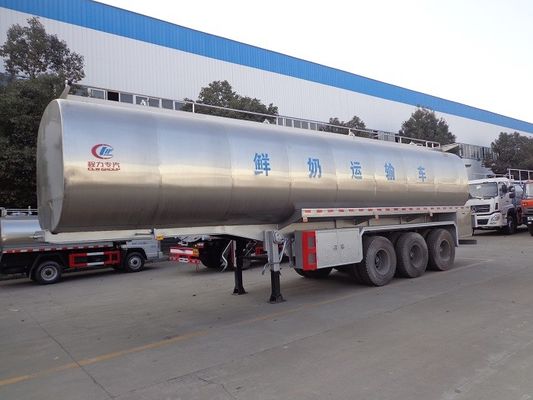

Reference Pictures of fresh milk delivery tanker trailer

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fresh milk delivery tanker trailer I can order from your company?

A: We can supply various sizes of fresh milk delivery tanker trailer, there are 2 axles and 3 axles semil trailer for optional.

Q2: What is your production standard of fresh milk delivery tanker trailer? Whether your fresh milk delivery tanker trailer export to USA, Canada and Europen countries?

A: Our fresh milk delivery tanker trailer is produced as per China GB local standard;

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
