Automatic 12m Cherry Picker Aerial Lift Truck Electronical Controlled Lifting

تصویر بزرگ : Automatic 12m Cherry Picker Aerial Lift Truck Electronical Controlled Lifting

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,SGS,BV
شماره مدل:	CLW5140GK

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	35-40 روز
شرایط پرداخت:	D/A، D/P، Western Union، MoneyGram
قابلیت ارائه:	600 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، ISUZU، JAC، JMC، FORland، foton	ارتفاع بلند کردن (M):	10 متر، 12 متر، 14 متر، 16 متر
ارتفاع عملیاتی (متر):	12 متر، 14 متر، 16 متر، 18 متر	حالت کنترل:	دسته کنترل/کنترل را حذف کنید
مدل محرک:	4x2; 4x4; مطابق با طراحی بالا و درخواست مشتری	رنگ:	قرمز/زرد/آبی/سبز/اختیاری
برجسته کردن:	aerial work platform truck,elevating platform truck , elevating platform truck

12m Cherry picker 14m 4x2 operating height boom truck 12m aerial lift truck for sale

Product Description

1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
3. 360 degree Rotation Arms.
4. Arm and H leg Automatic Locking System to secure safety handling

Condition	New condition/4x2
Chassis	Curb weight(kg)		5100 kg
	Wheelbase(mm)		3360 mm
	Dimensions(mm)		760020003200 mm
	Wheel track (front/rear) (mm)		1160/2150 mm
	Approach/Departure angle(°)		18/12
	Front/Rear axle loading(kg)		2000/3500 kg
	Max. driving speed(km/h)		95
	Brand		SINOTRUK
	Model		HOWO
	Tire	Quantity	6pcs with one spare tire
		Specifications	7.00R16
Clutch	Reinforced diaphragm clutch
Transmission	Manual type, 6 Forwards and 1 reverse
Cab	Single cabin two door. It can accommodate three people With Air conditioning
Engine	Model		CY
	Fuel type		Diesel
	Displacement(ml)		3856 ml
	Power(kw)/Horsepower(HP)		88 kw/120 HP
	Emission standard		Euro 3
	Cylinder number		4
Brakes	Service brake: Dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Upper	Bucket body		Q235 Carbon steel
	Bucket Interior		Fiber glass plate
	Working bucket Max. Weight(kg/bls)		200/450
	Max. Lifting Height(m)		10.3m 12.3 m 14.3m 16.3m
	Loading leg No.		4pcs hydraulic loading leg
	Working Platform		360°turning(left or right), H-shape legs 360°

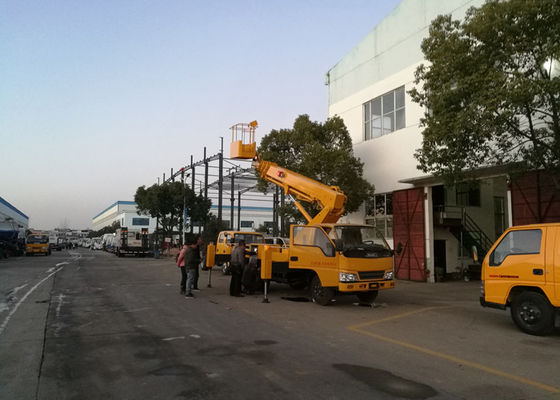

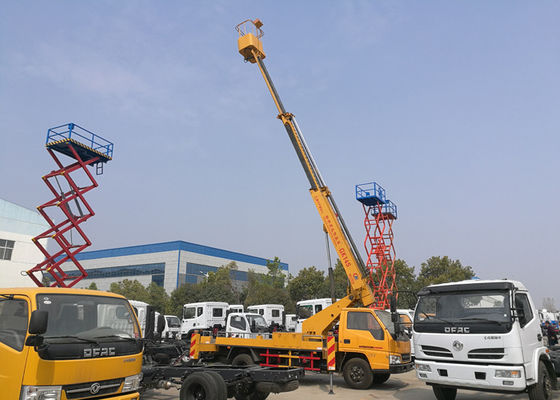

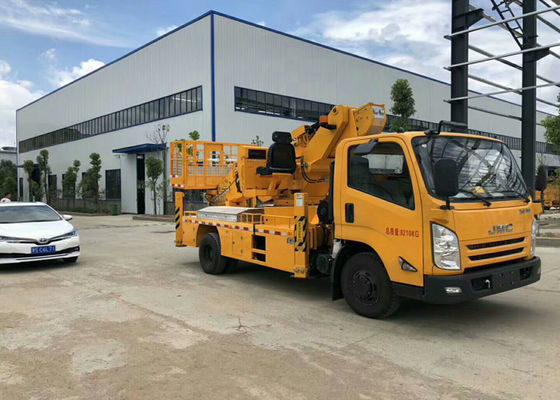

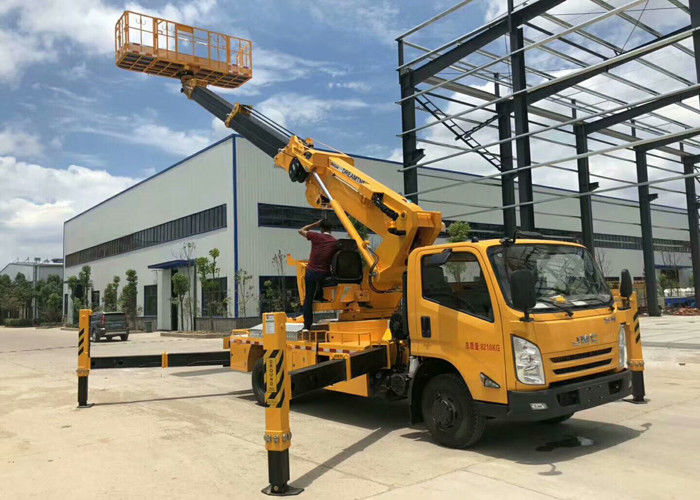

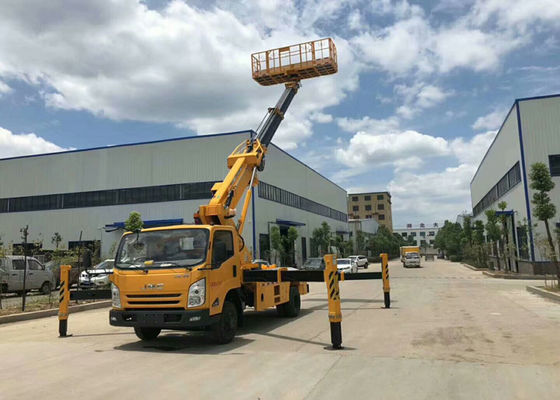

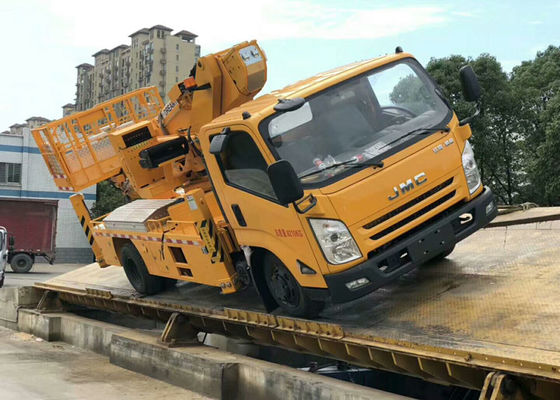

Products Show

Automatic 12m Cherry Picker Aerial Lift Truck Electronical Controlled Lifting 0

Automatic 12m Cherry Picker Aerial Lift Truck Electronical Controlled Lifting 1

Automatic 12m Cherry Picker Aerial Lift Truck Electronical Controlled Lifting 2

Truck mounted aeriel platform truck is uaually applied in following working situation:

1) High altitude photography

2) High altitude working of changing outdoor advertisement

3) Maintenance of street lamps

4) Indoor working

5) Clipping trees

6) Working for bridge building

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
