Intelligent Asphalt Road Tanks Trucks And Trailers HOWO 8 X 4 Synchronous Chip Sealer Truck

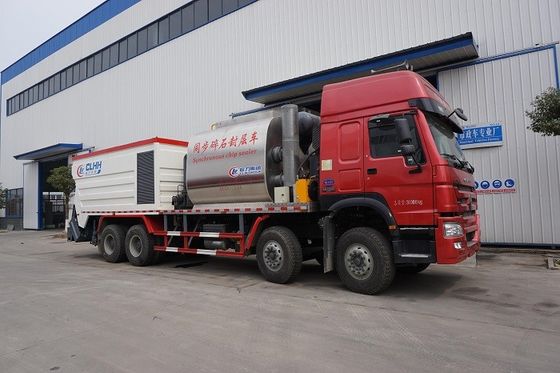

تصویر بزرگ : Intelligent Asphalt Road Tanks Trucks And Trailers HOWO 8 X 4 Synchronous Chip Sealer Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC BV SGS ISO
شماره مدل:	CLW5310

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	کشتی برهنه، موم شده، رو-رو، کشتی فله
زمان تحویل:	50 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مخزن آسفالت:	9 تن، 9 تن، 9 تن	حجم سنگ:	14cbm
لایه عایق:	سه لایه	عرض سمپاش:	4500 میلی متر
حجم پاشش آسفالت:	0.25~3.5L/m2	سرعت کار:	1.5 تا 7 کیلومتر در ساعت
تعداد نازل های پاشش:	36	نوع قیر:	آسفالت گرم، آسفالت اصلاح شده گرم، آسفالت کاتبک، آسفالت امولسیون شده
برجسته کردن:	stainless steel tanker trailers,4000 gallon water truck , 4000 gallon water truck

Intelligent asphalt Road Construction truck HOWO 8x4 Synchronous Chip Sealer Truck

Product Description

1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt

2) System of 10tons bitumen distributor truck

manual/automatic control of spraying volume and working width,control of single spraying nozzle
control in cabin or rear working platform
automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
Heating system(10~15℃/h) to improve heating efficiency

3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

4) Italy burner for automatic fire and temperature control

Specifications of Road Construction truck

Item No.	Parameters
Chassis
Overall Dimension	12000x2500x3860mm
Gross Vehicle Weight	31000 kg
Curb Weight	21280 kg
Loading Weight	9590Kg
Wheel Base	1800+4600+1350 mm
Front/rear Tread	2022/1830 mm
Approach/Departure Angle	16/14 degree
Front Axle	7000kg*2
Rear Axle	18000kg*2
Engine	WD615.47,Weichai Diesel Engine, watering cooling, four stroke, 6 cylinder in line
Engine horsepower	371 HP EURO II
Displacement	9.726L (Diesel)
Max Driving Speed	90 km/h
Cabin	HW79,2~3 Passenger allowed, Right Hand Driving, with Air Conditioner
Tire	12R22.5 (12 pieces+1piece spare tire)
Asphalt Tank	9cbm
Outside Material	1.2mm Stainless plate
Insulation layer	40mm rock wool insulation layer,≤20℃/8h
Inside tank material	4mm carbon steel
Gravel Tank	14cbm
Gravel size	S3~S24mm
Asphalt pump	QGB680,680L/min
Camera	2 pcs,monitoring the operation scene
Hydraulic System
Hydraulic pump	BRY50-20-16
Driving Motor	05-130-BD31
Proportional Valve	EFBG-03-160-HF/Taiwan brand
Shuttle Valve	Shanxi Yuci brand
Overflow Valve	Shanxi Yuci brand
Control System
Control System	CLW-32-01/Germany Siemens
Control Method	Computer control
Smart asphalt nozzle	32 pcs
Camera and Monitor	Camera at the rear of gravel bucket and color monitor screen at cabin
Heating System
Heating method	Automatic heating by oil
Burner	G20/Italy brand
Radiator	RISEN brand
Heat transfer oil pump	40-25-160
Gasoline Engine	6kw
Spreading Width	4.5m
Spreading Speed	0.3~3.5L/min
Spreading Precision	±2%

Reference Pictures of road construction truck

Work Scene of road construction truck

Key parts of bitumen distribution truck

Intelligent Asphalt Road Tanks Trucks And Trailers HOWO 8 X 4 Synchronous Chip Sealer Truck 3

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of road construction truck I can order from your company?

A: We can supply various sizes of road construction truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.

Q2: What is your production standard of road construction truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

A: Our road construction truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
