8000 liters Stainless steel 304 Dongfeng 8cbm fresh milk delivery tanker truck 8ton
Product Description
1) Material of milk delivery truck: milk tank is divided into three layers as follows,
A: Outside protecttion layer--2mm 304L stainless steel plate
B: Inner 80mm insulation PU foaming layer and ensure temperature range less than 1 ℃ in 24 hours.
C: Inner tank with food grade 304-2B stainless steel plate
All welding lines are polished and grided to ensure a bright and clean inner milk tank.
2) Milk tank of milk delivery truck can be divided into several compartments according to your request
with independent discharging outlet and loading inlet.
3) Tank of milk delivery truck is equipped with PIC automatic cleaning and washing system,360 degree rotation
4) Optional for refrigerator,flow meter,level gauge,safety lock,anti-leakage device or rock wool insulation
Specifications of milk delivery truck 8ton
| Cab |
Left hand drive |
| Chassis |
Brand |
Dongfeng |
| Drive type |
4x2 |
| Tire Spec. |
7.50-16 |
| Tire Numbers |
6 |
| Transmission |
manual |
| Engine |
Model |
CY4102-C3F |
| Horse Power(hp) |
95 |
| Displacement(cc)/ Power(kw) |
3856/75 |
| Emission |
Euro 3 |
| Main Parameters |
Overall dimension (L*W*H/mm) |
5995x2000x2400 |
| Wheelbase(mm) |
3300 |
| Axles No. |
2 |
| GVW(kg) |
6495 |
| Curb Weight(kg) |
3365 |
| Rated Payload(kg) |
3000 |
| Approaching/Departure Angle(°) |
19/10 |
| Front/Rear track(mm) |
1506/1466 |
| Front/Rear suspension(mm) |
1032/1663 |
| Max speed(km/h) |
90 |
| Tank |
Tank Volume(L) |
5000 |
| Tank Material |
Stainless 304 |
| Tank thickness(mm) |
Internal |
4mm |
| External |
2mm |
| Insulation thickness(mm) |
80mm |
| Equipment |
1) PIC cleaning device inside of the tank |
|
2) Tank Structure: 4mm stainless steel inner tanker , 80mm insulating layer
and 2mm stainless steel shell plating.
|
| 3) Food grade pipe system and discharge valve, SMS food grade butterfly valve. |

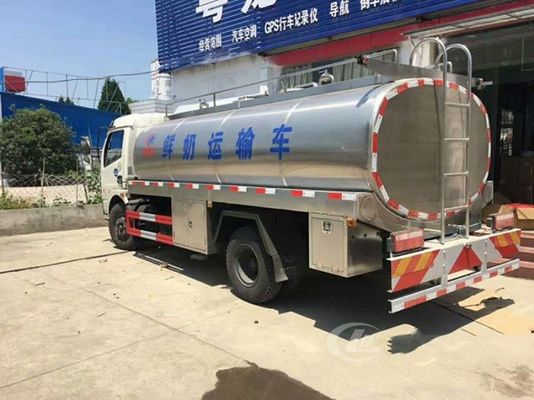

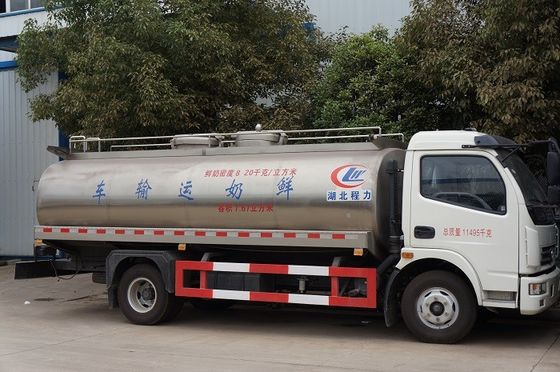

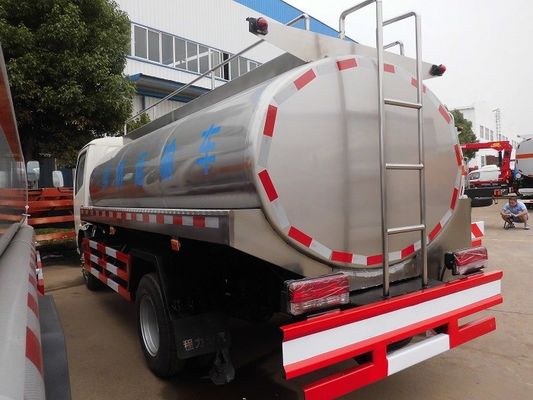

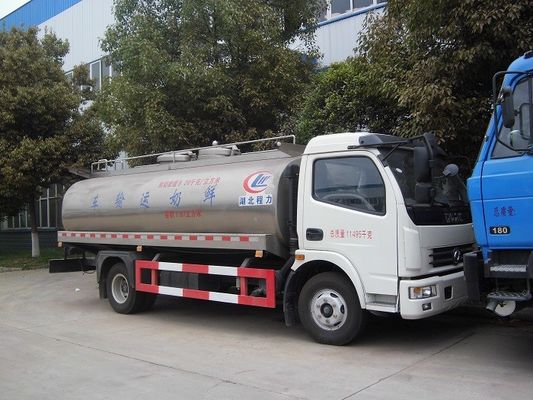

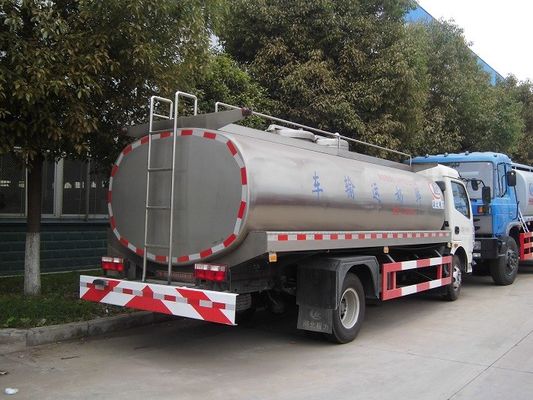

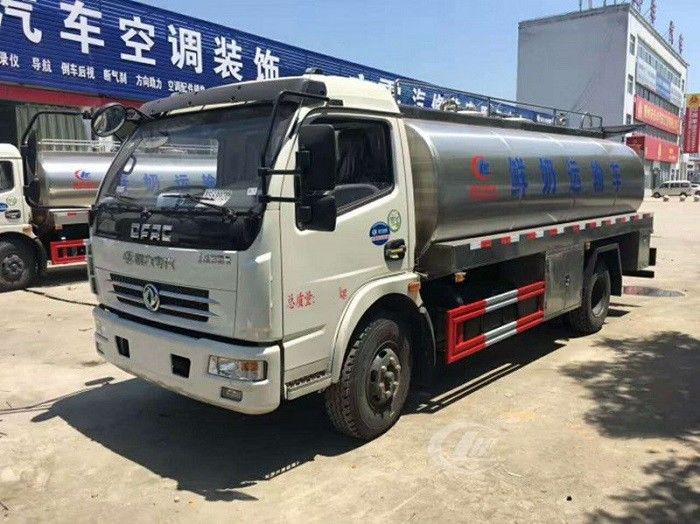

Reference Pictures of milk delivery truck 8tons
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of milk delivery truck I can order from your company?
A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?
A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
