High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck

تصویر بزرگ : High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,SGS,BV
شماره مدل:	CLW5050

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	20-30 روز
شرایط پرداخت:	D/A، D/P، Western Union، MoneyGram
قابلیت ارائه:	600 واحد در ماه

مخاطب

توضیحات محصول جزئیات

سبوس:	دانگ فنگ، ISUZU، JAC، JMC، فورلند، فوتون	موتور:	115 اسب بخار
جعبه دنده:	5 رو به جلو و 1 برعکس	قد:	12 متر، 14 متر، 16 متر، 12 متر، 14 متر، 16 متر
ظرفیت سطل:	200 کیلوگرم	مسافر:	4 تا 5 نفر
لاستیک:	7.00R16LT 10PR	پایه:	3360 میلی متر
برجسته کردن:	aerial platform truck,elevating platform truck , elevating platform truck

JMC 14meters high altitude operation truck for street lamp maintenance

Product Description

1. JMC Double Row Chassis, can carry 6 Passengers.

2. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.

3. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.

4. 360 degree Rotation Arms.

5. Arm and H leg Automatic Locking System to secure safety handling

Specifications of JMC 14meters high altitude operation truck

Drive model		4×2
Chassis		JX1061TSG25
Overall Dimension LWH mm		7300×200×3050
GVW		5390 kg
Curb weight		5065kg
Wheel base mm		3360
Wheel track(front/rear) mm		1385/1425
Overhang (front/rear) (mm)		1065/2075
Approach/Departure angle(°)		27/10
Engine	Model	JX493zlq5
	Type	Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse power	115 hp
	Output volume	2771 ml
	Emission standard	Euro V
Max. speed		90 km/h
Gearbox		5 forwards & 1 reverse
Clutch		Reinforced diaphragm clutch
Steering Gear		Power steering, hydraulic steering with power assistance
Fuel tank (L)		120
Tire		7.00-16 , 7 pieces including one spare tire
Brakes		Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Equipment		Max operation height>=14m; max operation radius>=6m; max working platform height>=12.5m; working platform rating loading=250kg; working platform rating allowable passengers = 2; working platform dimension: 11005701000 mm; protection dimension:180505mm; 360°turning(left or right), 4 H-shape legs. 1.5 ton crane, Insulating material in the cage., the cage can be operated both in the air and on the earth.
Delivery time		30 days after the payment

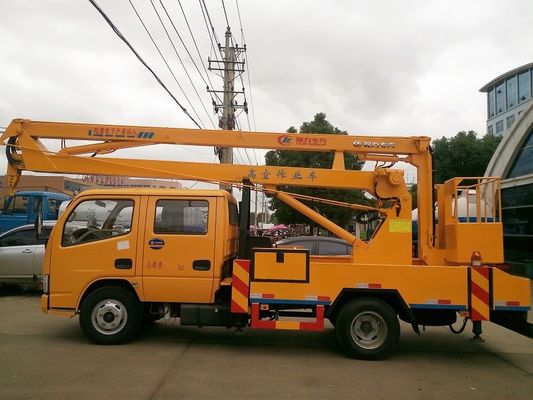

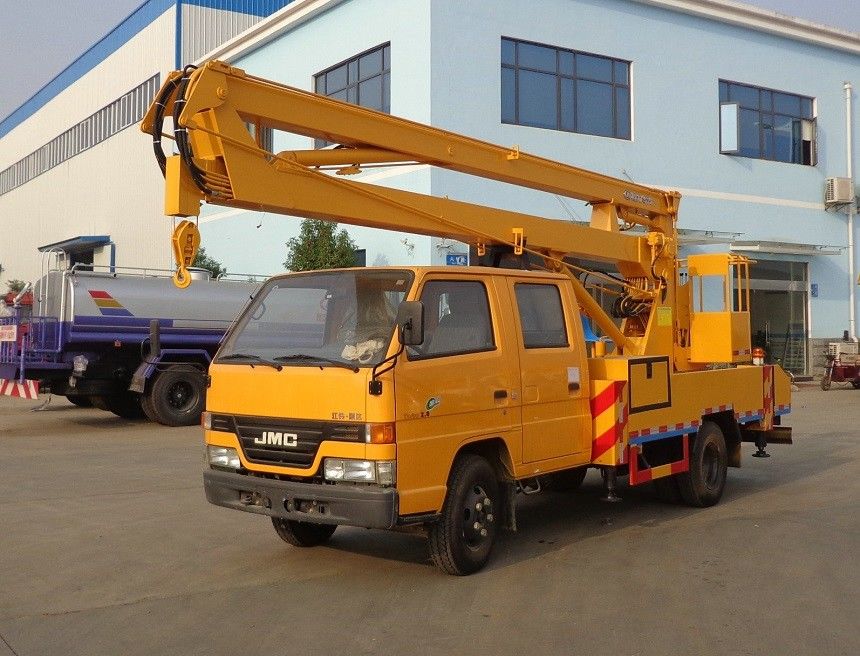

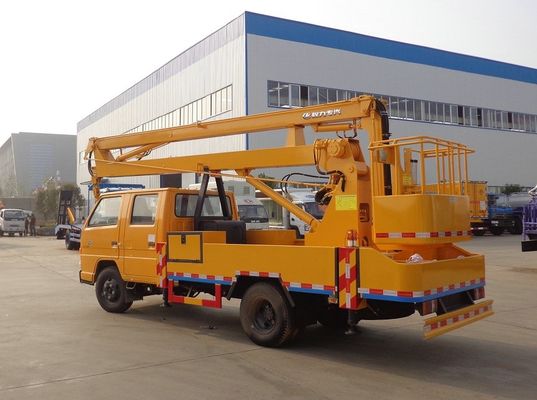

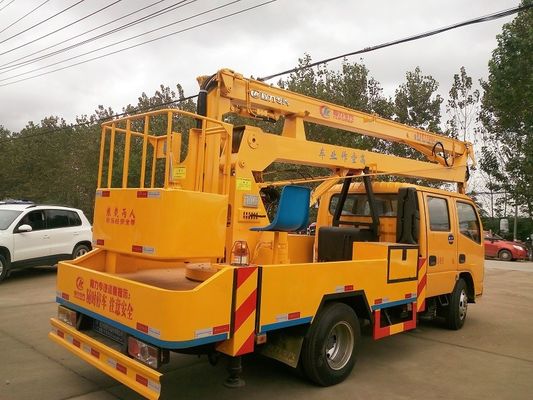

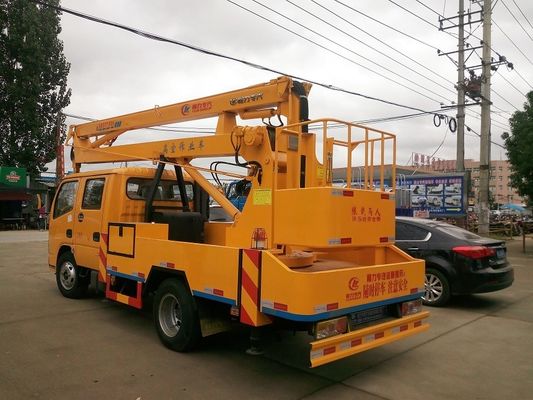

Product Photos

High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck 0

High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck 1

High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck 2

High Altitude Operation Aerial Truck Equipment , JMC 14 Meters Elevating Platform Truck 3

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of high altitude operation truck I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied high altitude operation truck to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
