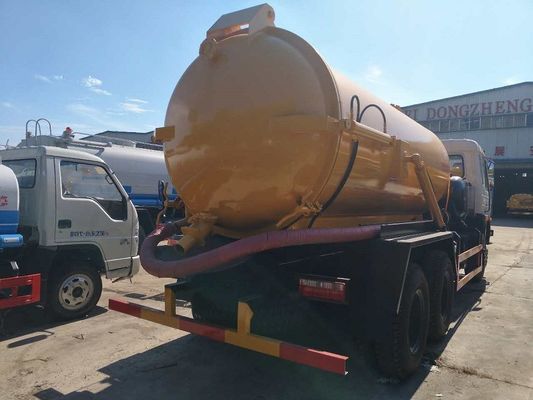

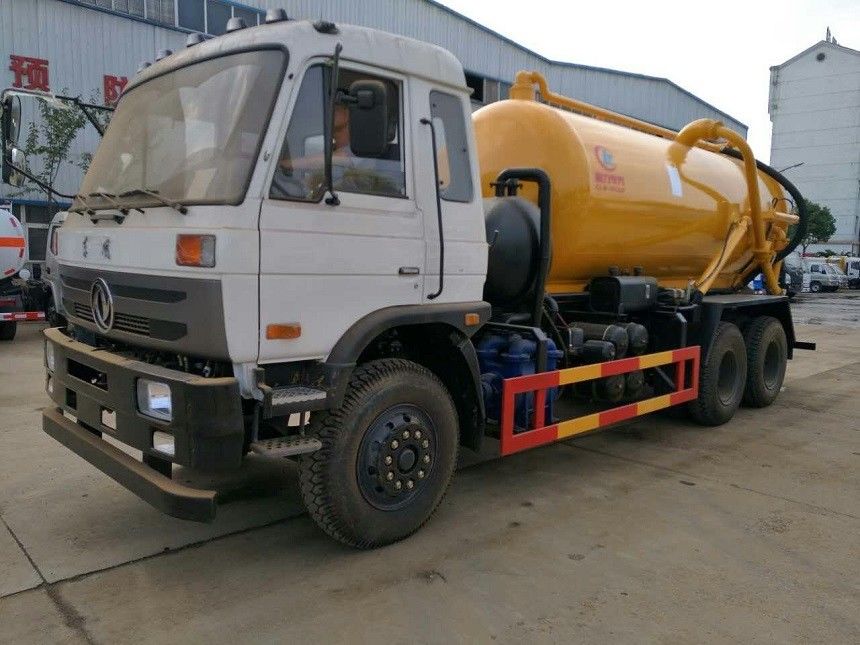

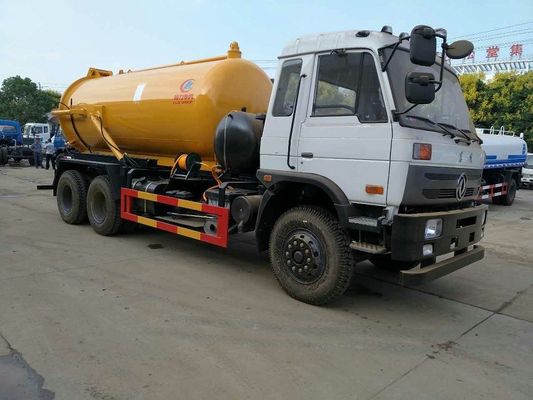

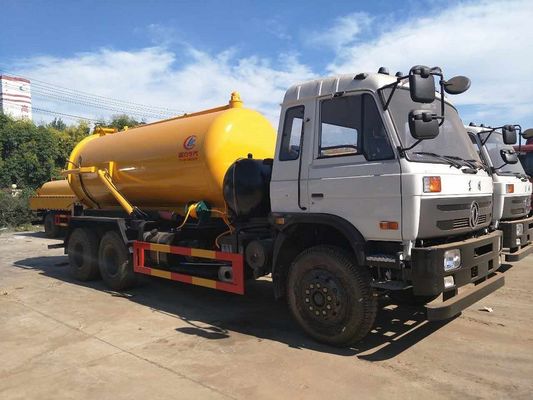

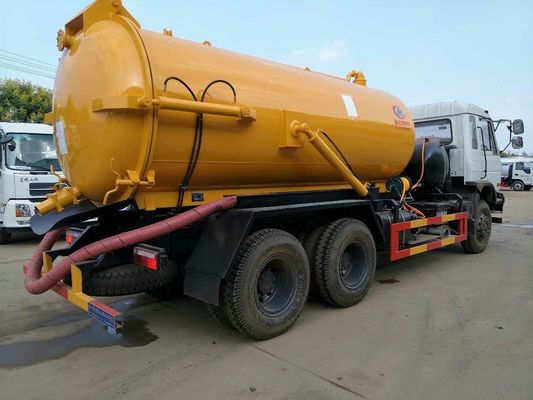

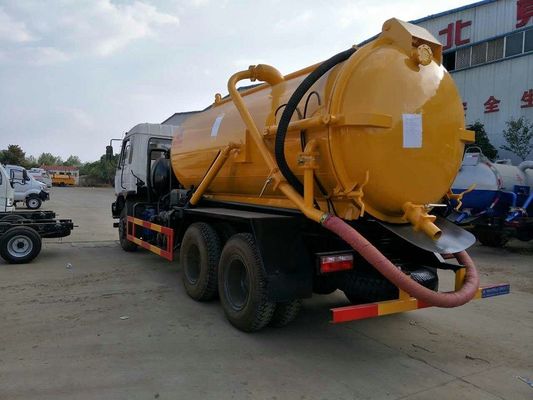

Dongfeng 16ton septic vacuum truck 210hp 10 wheel 16cbm sewage vacuum truck
Product Description
1. Purpose of septic vacuum truck :
It used for city and factory sewer cleaning and sewege transportation, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning.
2. Main parts of septic vacuum truck:
Water-gas separator, Oil-gas separator, Sewage pump and Four way valve etc.
3. Features of septic vacuum truck:
Easy for operating and controlled by hydraulic system.
| Cabin |
Driving type 6x4 LHD
single row,with A/C,available for two~three persons
|
| Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
9590×2500×3880 |
| Wheel base (mm) |
4350+1300 |
| Wheel track (front/rear) (mm) |
1960/1860 |
| Approach/Departure angle(°) |
28/32 |
| Weight in KGS |
Tare Weight |
13005 |
| payload |
12000 |
| Front axles loading capacity |
7000 |
| Rear axles loading capacity |
18000 |
| Max. driving speed(km/h) |
95 |
| Engine |
Brand |
Cummins |
| Model |
B210 33 |
| Horse Power(HP) |
210HP |
| Emission standard |
Euro III |
| Gearbox |
5 forwards & 1 reverse |
| Steering |
Left hand drive |
| Tire |
10R22.5,10 tires with one spare |
| Sewage Tank |
| Tank volume |
15000Liters |
| Tank material |
6mm carbon steel |
| Vacuum Pump |
Double Yifeng Vacuum Pumps |
| Sewage suction pipe |
6M |
| Other equipment |
Oil-gas separator,water-gas separator,four-way valve,anti-flow valve,
washing device,pressure gauge,ball valve
|
| Painting |
Customized painting color and logo as required. |
Bulk Delivery of septic vacuum trucks to Africa
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of septic vacuum truck I can order from your company?
A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: What is your production standard of septic vacuum truck? Whether your sewer vacuum truck can export to USA, Canada and Europen countries?
A: Our CBU sewer vacuum truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.
Q3: Can we adopts International brand sewage pump for septic vacuum truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
