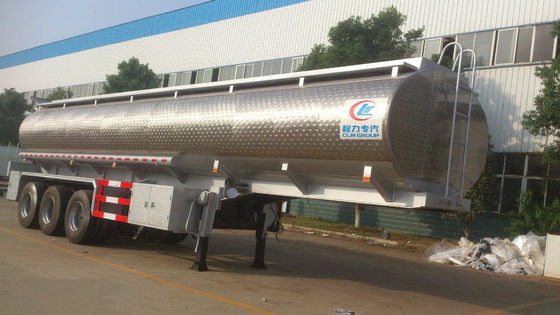

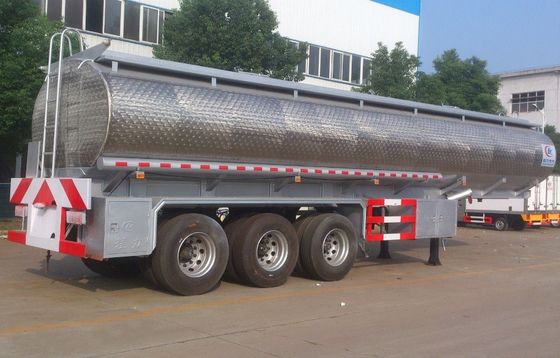

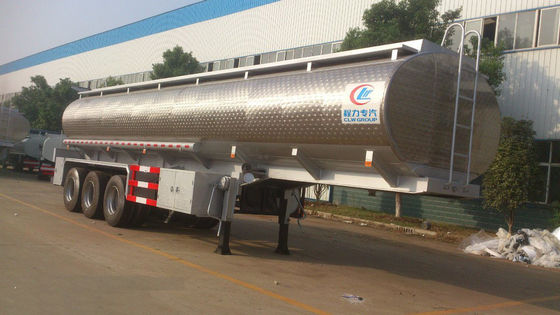

Stainless Steel Vegetable Oil Delivery Truck , 42,000 Liters Oil Tank Trailer

تصویر بزرگ : Stainless Steel Vegetable Oil Delivery Truck , 42,000 Liters Oil Tank Trailer

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,BV,SGS
شماره مدل:	clw5070

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	20 ~ 25 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	1000 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد:	SS 304	ضخامت مواد:	4 تا 5 میلی متر
هدف:	تحویل روغن نباتی	نوع روغن:	روغن نخل، روغن نباتی، روغن کنجد،
شکل مخزن:	گرد، مربع گرد، بیضی،	پرتو اصلی:	من پرتو می کنم
محور:	فووا، محور BPW	لاستیک:	12R22.5، 11R22.5
برند تایر:	سکه دوبل، مثلث، ائلوس و غیره
برجسته کردن:	gas delivery truck,oil tanker semi trailer , oil tanker semi trailer

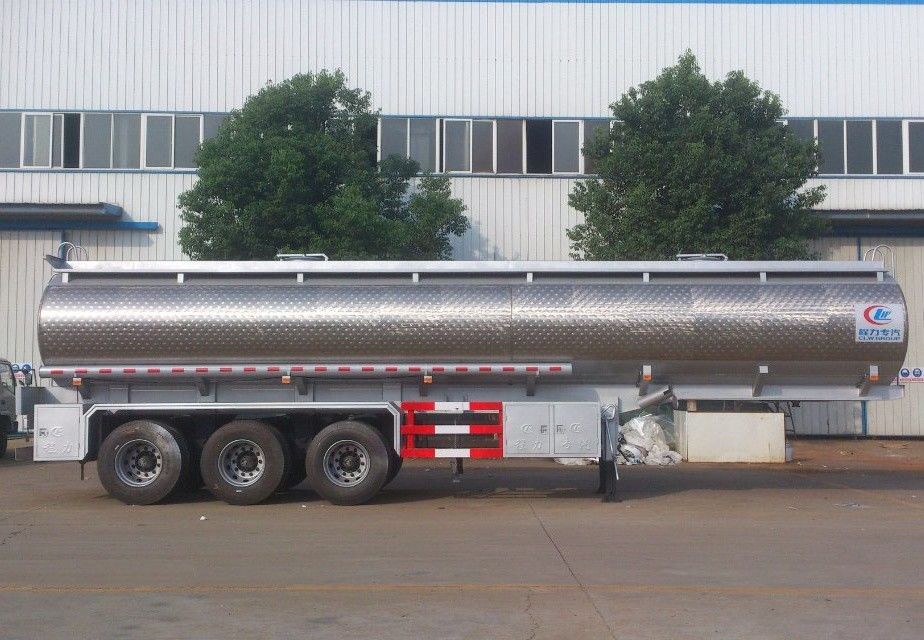

42,000Liters Stainless Steel Vegetable Oil Delivery Truck Trailer for Palm Oil Transport

Product Description

42,000liters Vegetable Oil Stainless Steel Tanker Trailer with high level design
Major parts and components are made by advanced equipment.
Tank Material: 304 or 304L, 316L stainless Steel.
Parts: Stainless Steel Tank with Manhole, valves & Pipe
Main Beam: Q345B high tension steel in I style
Axles: FUWA, BPW, York Axles,
Suspension: German Mechanical Suspension, or Air Suspension.
Tire: 11R22.5, 12R22.5 Tubless Tire.

Specifications of 42,000Liters Stainless Steel Vegetable Oil Delivery Truck Trailer for Palm Oil Transport

Overall Parameters
Overall Length		10000 mm
Overall Width		2500mm
Overall Height		3500 mm
Tare Weight		Approximate 7500KGS
Loading capacity		29248 kg
Total gross weight		36748 kg
Tank Body
Total valid Volume(m3)	32
Tank body size	9600 x 2480 x 1750 mm
Tanker Body Material	6mm stainless steel
End plate	6mm stainless steel
Lifting Ladder	Including Top walkway
Medium	Molasses
Density of the molasses	914 kg/m3
Manhole cover	∮500mm ,2sets
Discharging valve	∮100mm discharging valves
No.of Compartment	1
Discharging Pipe	4”rubber hose, 6m long
Running gear
Axle		3 axles
		Fuwa 13 Ton , every axes loading capacity is less than 8t
Landing Gear		JOST brand C200,Two-speed, manual operating, heavy duty landing gear
King Pin		JOST brand 2” bolt-in king pin
Suspension		Full set of mechanical suspension
Tire		12R22.5tubeless tire with one spare tire, 7 pieces
ABS System		Fitted with 4s/2m Type
Other Design and parts		1.Vapor recovery system. 2.Dust Board to Cover the Tires 3.Rear and side lights. 4.Walkway with handrail. 5.Tool Box (Without Tools). 6.Double Spare Tire Carrier (Winch Type). 7. 4 No’s of fire extinguisher holder. 8. 2 No’s of Manhole 9. Have 4 spurnwater inside the tank

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
