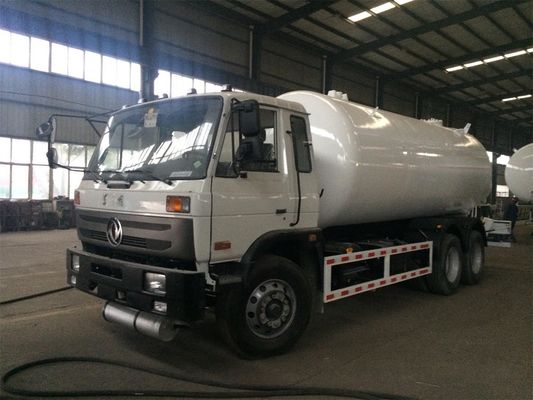

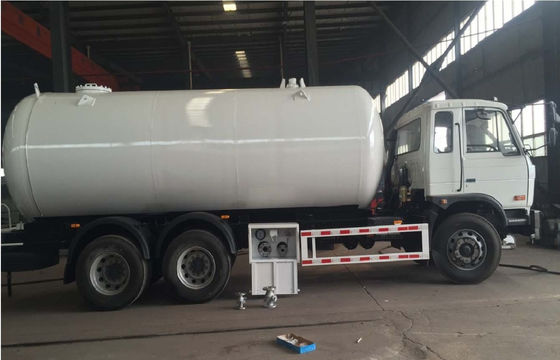

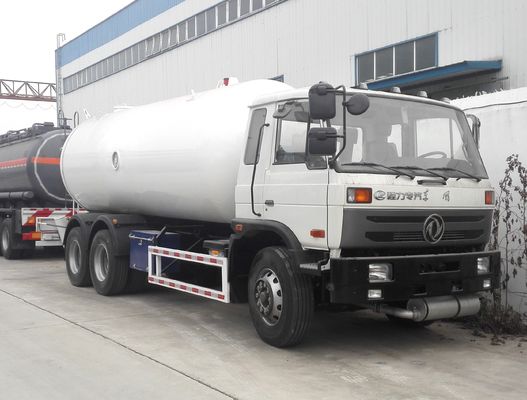

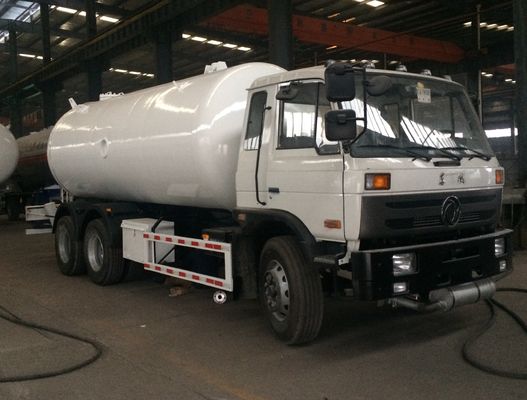

20000Liter 10Ton LPG Rigid Bobtail Truck with Rochester Level Gauge LC Flowmeter
Product Description
20000Liter 10Ton LPG Rigid Bobtail Truck with Rochester Level Gauge LC Flowmeter
1. Dongfeng Truck: 210HP Cummins Engine, 8 Forward & 1 Reverse Gear, 5Ton Front Axle & 10Ton Rear Axle
2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.
3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test
4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings
Specifications of 20000Liter 10Ton LPG Rigid Bobtail Truck with Rochester Level Gauge LC Flowmeter
| Item No. |
Parameters |
| Overall Dimension |
11200 x 2500 x 3480 mm |
| Driving Model |
6x4 |
| Gross Vehicle Weight |
26000 kg |
| Curb Weightfffffffffff |
14000kg |
| Payload |
12000kg(12Ton) |
| Wheel Base |
4700+1300 mm |
| Front/rear Tread |
2022/1830 mm |
| Approach/Departure Angle |
16/12 degree |
| Front Axle |
6000kg |
| Rear Axle |
13000kg |
| Engine |
Cummins B210 33,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
| Engine horsepower |
210HP EUROII |
| Displacement |
5900 mL (Diesel) |
| Max Driving Speed |
95 km/h |
| Gearbox |
FAST 8 Forward & 1 Reverse |
| Cabin |
LHD OR RHD, 2~3 Passenger allowed,with Air Conditioner |
| Tire |
12R22.5 (11 pieces) |
| LPG tank |
|
| Capacity: |
20cbm |
| Tank material: |
Q345R |
| Diameter: |
2100mm |
| Tank thickness: |
10mm |
| End plate |
10mm |
| Tank length: |
7644mm |

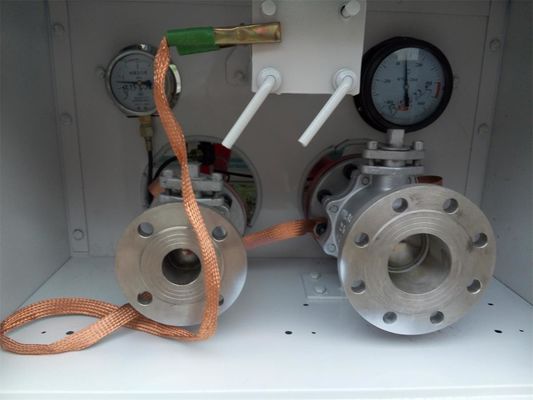

| Gas phase |
DN50, DN80, 2" /3" |
| Liquid Phase |
DN50 |
| Filling gas |
Propane(LPG) |
| Design Pressure: |
1.61Mpa |
| Accessory |
| LPG Pump |
1 pc |
| Filling hose with filling nozzle |
15M |

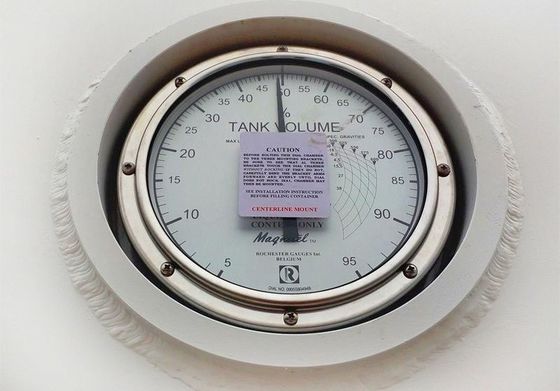

| Level Gauge |
Rochester float-ball level gauge |
| Safety Valve |
1,DN80 |
| Tool and Valve Box |
1 |
| Thermometer |
1 |
| Pressure Gauge |
1 |
| Emergency Valve |
1 |
| Fender |
Steel |
| Fire Extinguisher |
2 |
| Exhaust shaft |
At the front of truck for safety |
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
