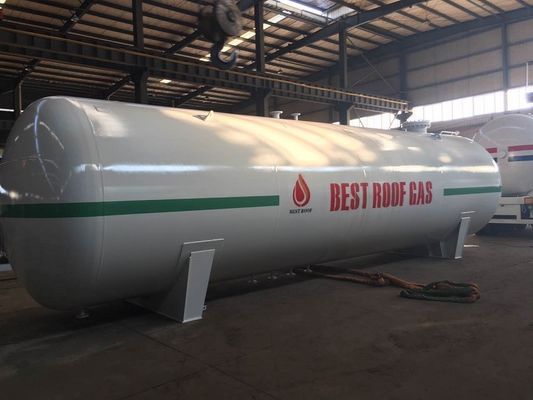

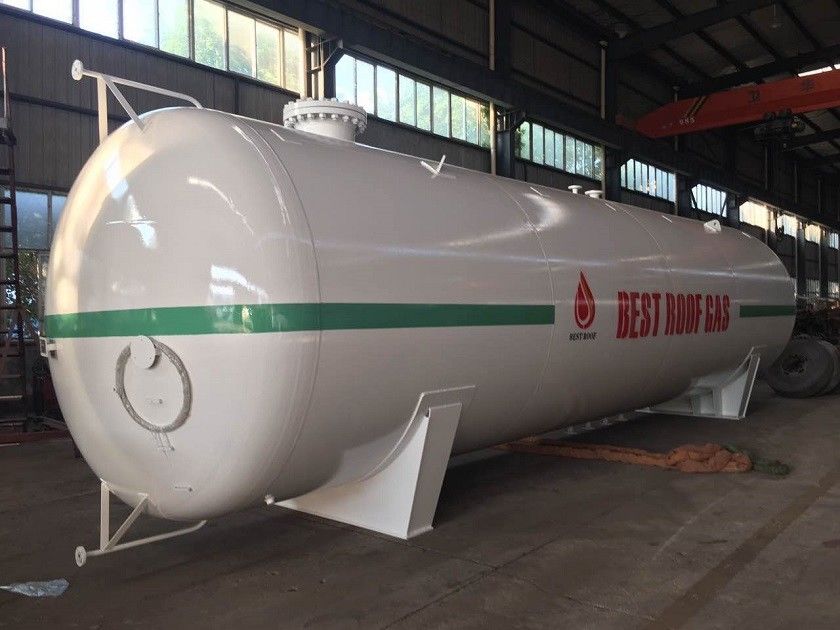

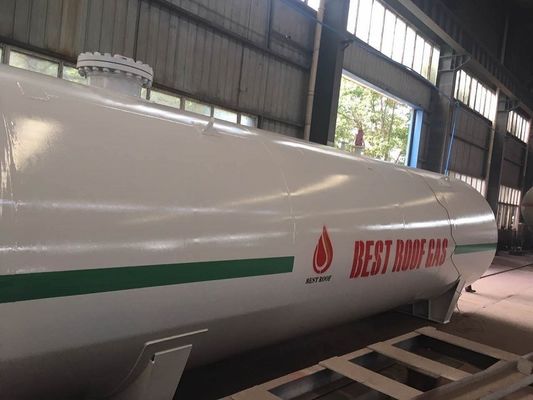

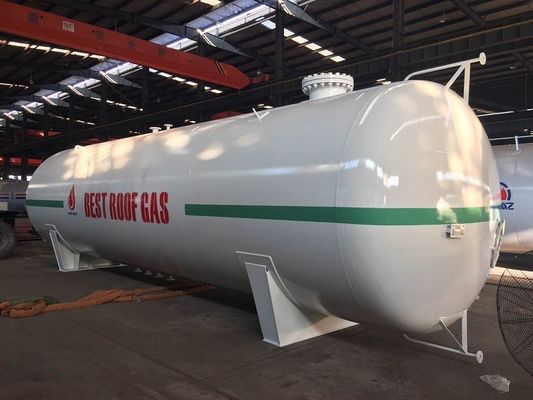

30MT 60000liters Propane Gas Tank 14mm 30tons LPG Gas Plant Storage Tank
Product Description
30MT 60000liters Propane Gas Tank 14mm 30tons LPG Gas Plant Storage Tank
1. Application of propane gas tank: Cooking Gas for Home or Commercial Use
2. Design Standardof propane gas tank: GB150-2013, ASME Standard with U STAMP,
3. Test of propane gas tank: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
4. Propane Gas Tank Equipment:
Pump: Corken Pump with ABB or Siemens Motor, Chinese Brand
Compressor: 15HP Static Free Motor with 48m3/h LPG Compressor
Safety Valve: REGO Brand or Chinese Brand
Bypass Vavle: 2" or 1-1/2" Corken or Blackmer Brand
30MT 60000liters Propane Gas Tank 14mm 30tons LPG Gas Plant Storage Tank
| 60 CBM LPG TANK DIMENSIONS |
| Volume of Tank |
60 CBM |
| Filling Weight |
30000 kg |
| Tank Weight |
12750 kg |
| Thickness of Body (mm) |
14 mm |
| Thickness of Endplate (mm) |
16 mm |
| Tank Diameter (mm) |
2700 mm |
| External Dimensions (mm) (length x width x height) |
10962 x 2728x 3318 mm |
| Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
| Filling Medium |
Liquefied Petroleum Gas ( Propane) |
| Design Pressure |
1.77 MPa / 17.7 Bar |
| Water Test Pressure |
2.22 Mpa / 22.2 Bar |
| Corrosion Allowance |
1 mm |
| Medium Density |
500 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
| Main parts of LPG Tank |
| Item |
Specification |
Quantity |
| Discharge Pipe |
DN80 |
1 |
| Inflow Pipe |
DN80 |
1 |
| Gas phase balance pipes |
DN50 |
2 |
| Drain Hole |
DN50 |
1 |
| Manhole |
DN450 |
1 |
| Air-out Pipe |
DN50 |
1 |
| Safety Valve Pipe |
DN100 |
1 |
|
Safety Accessories (Included in the quotation):
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge,
Temperature Gauge.
|
| LPG Pump & Motor Specification-American Brand |
| |
Pump Brand |
Corken |
| Model |
Z2000 |
| Medium |
Liquid petroleum gas |
| Material |
Nodular Cast Iron with Stainless Steel |
| Liquid Delivery Value |
8.4 m³/h~17 m³/h |
| Maximum Differential Pressure |
8.6 Bar |
| Inlet & Outlet Flange |
2”NPT / 2" NPT |
| Motor Brand |
ABB (Germany) |
| Specification |
7.5HP(5.5KW), Explosive Proof,
Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable
|
We can offer whole set accessories and equipments of building a completed LPG plant as follows,
- LPG PUMP AND MOTOR
- LPG COMPRESSOR
- AIR COMPRESSOR
- VOLUME/MASS FLOW METER
- LPG DISPENSER MACHINE/CYLINDER WEIGHT SCALE
- GAS LEAKAGE DETECTOR
- LEVEL GAUGE(MAGNETIC PLATE TYPE,ROCHESTER,FLOAT BALL..)
- ALL KINDS OF VALVES(globe valves,safety valves,ball valves,non-return valves,strainer,emergency cut-off valves...)
- PIPELINES
- GASKETS
- BOLTS AND NUTS
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
