9 Cubic Meters Ready Mix Concrete Mixer Trucks , Concrete Mixing Transport Trucks

تصویر بزرگ : 9 Cubic Meters Ready Mix Concrete Mixer Trucks , Concrete Mixing Transport Trucks

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW / Chengli
گواهی:	CCC,ISO,
شماره مدل:	CLW5250

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	600 واحد در ماه

مخاطب

توضیحات محصول جزئیات

نام تجاری:	Sinotruk Howo	موتور:	موتور ویچای، 336 اسب بخار، 371 اسب بخار
جعبه دنده:	10 جلو و 2 عقب	ظرفیت میکسر:	8cbm,8ton,9cbm,10cbm,9ton,10ton
موتور هیدرولیکی:	ایتون، پی ام پی،	پمپ هیدرولیک:	EATON، PMP، Bonfiglioli،
کاهنده:	ZF، PMP، Bonfiglioli، Sauer
برجسته کردن:	self mixing concrete truck,concrete mixing transport trucks , concrete mixing transport trucks

9cubic meters concrete mixer truck Sinotruk Howo 6X4 9cbm cement mixer truck

Product Description

1. Chassis of concrete mixer truck: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman,

2. High Tension Steel of concrete mixer truck:Q345B Tank Material in 5mm body & 6mm End plate.

3. Motor Brand of conrete mixer truck:International Brand Motor, Pump, Reductor & Radiator

4. 400Liter Water Tank with Pressure Water Filling

5. Water Filling System to Keep the cement moisture.

6. Tank and hand Washing Device.

Specifications of 9cubic meters concrete mixer truck Sinotruk Howo 6X4 9cbm cement mixer truck

Cabin	Driving type 6x4, LHD
Cabin	HW76 standard flat cab, with two seats and one sleeper,with A/C
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	9750×2500×3990
	Wheel base (mm)	3825+1350
	Wheel track (front/rear) (mm)	1500/1860
	Approach/Departure angle(°)	16/24
Weight in KGS	Tare Weight	10580
	payload	14580
	Front axles loading capacity	9000
	Rear axles loading capacity	16000
Max. driving speed(km/h)		90
Engine	Brand	Weichai Engine
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Model	WD615.47
	Horse Power(HP)	371
	Emission standard	Euro II
Gearbox	10 forwards & 2 reverse
Steering	Left hand drive
Tire	12R22.5 tubeless tires with one spare

Mixer Drum	Mixer Capacity	10 cubic meters
	Drum thickness	6mm
	Blade thickness	4mm
	Tanker Material:	16MnQ345 Carbon Steel
	Filling Rate(%)	59
	Input Speed (m3/min)	≥2.8
	Output Speed (m3/min)	≥1.2
	Surplus Ratio	≤0.5
	Tanker Rotate Speed(rpm)	0~17
Drum Drive System	Hydraulic Pump	Italy Brand: PMP
Drum Drive System	Hydraulic Motor	Italy Brand: PMP
	Speed Reducer	Germany Brand: ZF
	Radiator	KAITONG
	Water Tank Volume(L)	400

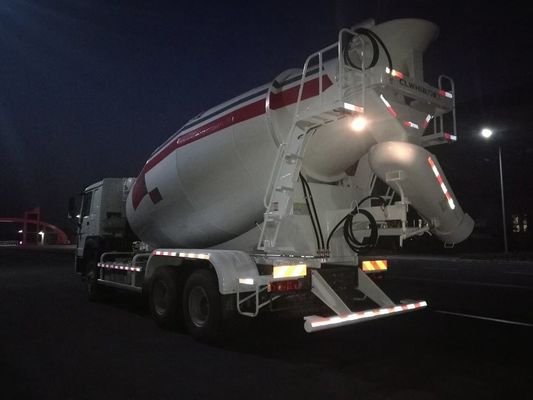

9 Cubic Meters Ready Mix Concrete Mixer Trucks , Concrete Mixing Transport Trucks 0

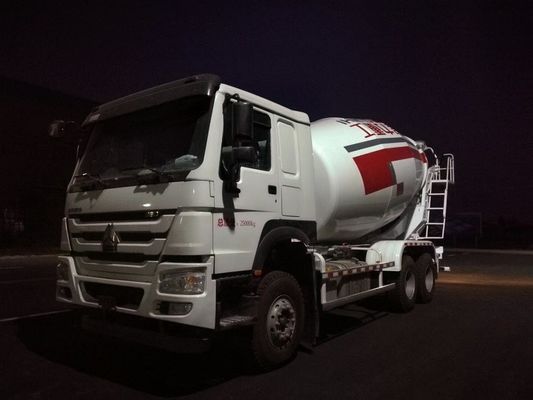

9 Cubic Meters Ready Mix Concrete Mixer Trucks , Concrete Mixing Transport Trucks 1

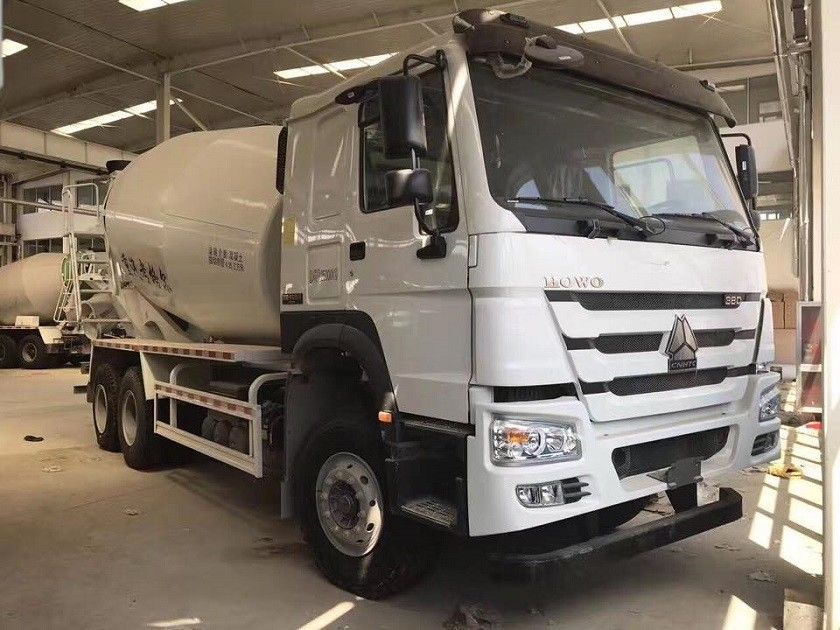

9 Cubic Meters Ready Mix Concrete Mixer Trucks , Concrete Mixing Transport Trucks 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of concrete mixer trucks I can order from your company?

A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied concrete mixer truck to any overseas companies?

A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
