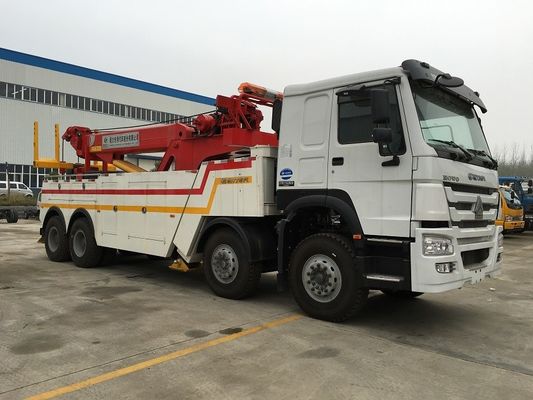

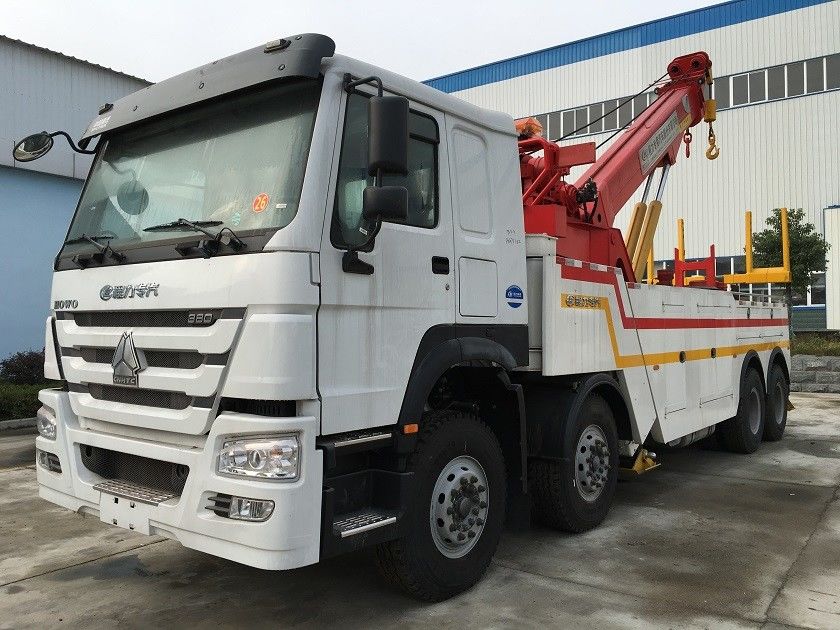

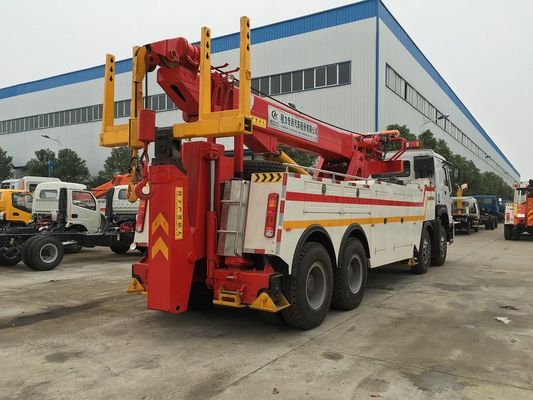

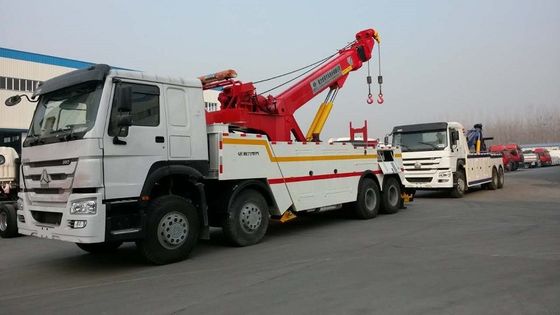

Howo 8X4 371HP Heavy Duty Tow Truck , Broken Cars Recovery Tow Truck

تصویر بزرگ : Howo 8X4 371HP Heavy Duty Tow Truck , Broken Cars Recovery Tow Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC SGS BV
شماره مدل:	CLW5310

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	40 روز پس از دریافت سپرده در حساب
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	DONGFENG، ISUZU، FAW، HOWO، JAC، JMC	ظرفیت بکسل:	30 تن، 30 تن، 30 تن، 40 تن، 40 تن، 40 تن، 50 تن، 50 تن، 50 تن
رنگ:	سفید، زرد، آبی به عنوان سفارشی	فرمان:	LHD و RHD
موتور:	290 اسب بخار، 336 اسب بخار، 371 اسب بخار	نوع ویرانگر:	یک بکسل-دو-یک-بکسل-یک
برجسته کردن:	flatbed tow truck,heavy duty tow truck , heavy duty tow truck

Heavy Duty Sinotruk Howo 8X4 371HP 15Ton Winch 40ton 50ton recovery tow truck

Product Description

Purpose: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

CHASSIS
Cabin		HW76 standard cabin,Right hand drive,with air conditioner,allowed for 2~3 persons
No load(kg)		Curb Weight			13070
		Front axle			7000*2
		Rear axle			18000*2
Full load		Max. Overall Weight			31000
Overall Dimensions(mm)		Length			11430
		Width			2500
		Height			3270
Wheel base(mm)		1800+4600+1350
Track(mm)		2022/1830
F/R Suspension(mm)		1500/2200
A/D Angle(°)		16/18
Driving Model		8*4
Tyre		315/80R22.5
Max. Speed(km/h)		105
Max. Grade-ability(%)		30
Min. Turning Diameter(m)		22.6
Min. Ground clearance(mm)		310
Engine		Model			WD615.47
		Horsepower(HP)			371
		Displacement(mL)			9726
Transmission		HW19710,10 forwards&2 reverses
WRECKER EQUIPMENT
Max. Towing Weight(kg)				43000
Lifting System	Max. Lifting Weight(kg)			25000
	Max. Lifting Weight under all extension(kg)			8300
	Effective Length of Corbeling Arm(mm)			3650
	Extend-retract of Corbeling Arm(mm)			1750
	Slope Angle of Corbeling Arm(°)			7
	Folding angle under no load(°)			-7~92
	Folding angle under load(°)			-7~16
	Max. Ground Distance(mm)			≮900
	Landing Strength(KN)			80*2
	Hydraulic Hose		Tianhe,Guangdong Province
	Hydraulic Joint		Germany technology and exported Sealing rings
	Hydraulic Lock		Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.
	Swivel Joint		Yangzhou Zhongmei Pressure Parts Co.,Ltd.
	Compartment plate		One-step Modeling by Germany 3P2A 1000T punching machine

Hoisting System	Max. Hoisting Weight(kg)		50000
	Max. Hoisting Weight under all extension when Hoisting Angle is 30°(kg)		7800
	Max. Hoisting Weight under no extension when Hoisting Angle is 30°(kg)		18000
	Extension Distance of Oil Cylinder(mm)		6000
	Length of Crane Arm(mm)		5880
	Section No. Of Crane Arm		3
	Max. Hoisting Height(mm)		12300
	Max. Operation Diameter (mm)		10710
	Max. Hoisting Angle(°)		0~60
	Rotation angle(°)		360
Winch	No.		2
	Curb Traction/Per(KN)		250
	DN of Steel Rope(mm)		Φ20
	Length of Steel Rope(m)		45*2
	Min. Line Speed(m/min)		5

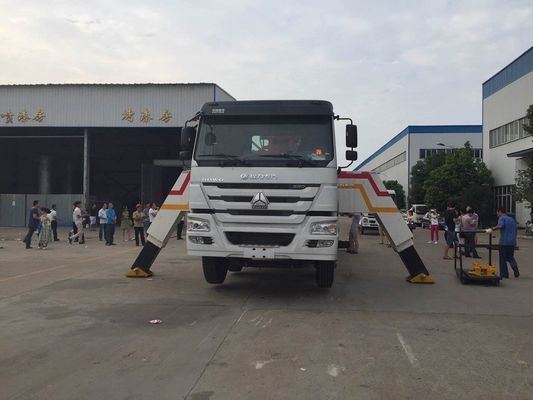

	Front Outrigger Type		“H” type
	Rear Outrigger Type		“L” type
	Front Outrigger Span(mm)		6600
	Rear Outrigger Span(mm)		4080
	Span between front and rear Outriggers		5550
Jump-start cables	12~24 Volts
Electric system	Rear working lamp(stop,tail,turning)		3
	Revolving beacon		1
	Lamps for license plate		1 set
Pneumatic hoses	1 set
Key Parts	Multitandem Valve	Italy Hydro control
	Balance Valve	Italy Hydro control
	Pump	Wuxi Oil Hydraulic Pneumatic Equipment Co., Ltd
	Hydraulic cylinder	Germany Rexroth technology and exported sealing rings
	Hydraulic Winch	Jiashan Huachuang Hydraulic technology Co., Ltd.
	Hydraulic Hose	Tianhe,Guangdong Province
	Hydraulic Joint	Germany technology and exported Sealing rings
	Hydraulic Lock	Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.
	Swivel Joint	Yangzhou Zhongmei Pressure Parts Co.,Ltd.
	Compartment plate	One-step Modeling by Germany 3P2A 1000T punching machine

Factory of recovery tow truck

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of wrecker trucks I can order from your company?

A: There are various sizes of wrecker trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
