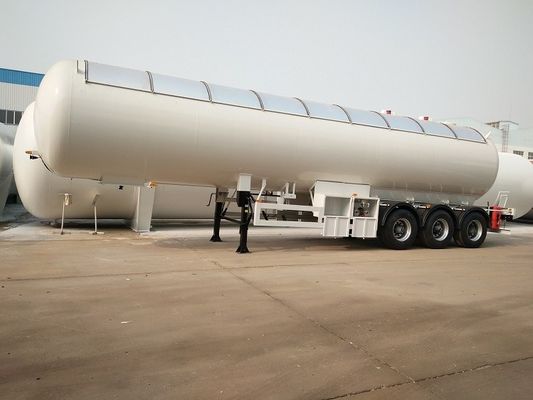

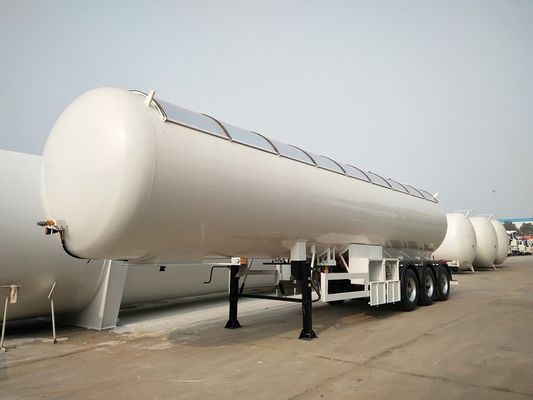

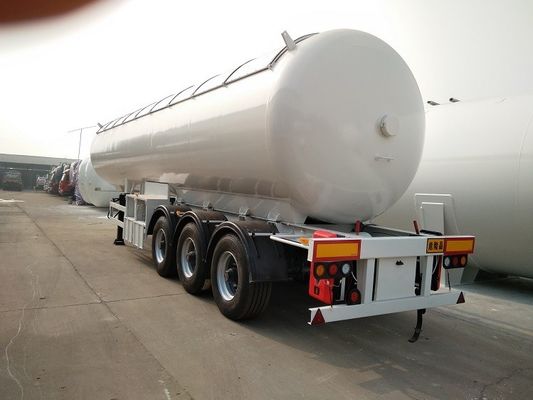

Tri-axle 49.6CBM 49600liters 20Ton 20MT LPG Tanker Semi Trailer
Product Description
1) LPG tanker trailer is used to transport liquid petroleum gas in large quantity.we can offer lpg tanker trailers from 40cbm to 60cbm,
2) Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories:ROCHESTER level gauge,flow meter,sunshelter
4) Available tanker trailer capacity:18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons
Specifications of Tri-axle 49.6CBM 49600liters 20Ton 20MT LPG Tanker Semi Trailer
| Tanker Essential Information |
| Volume of Tank (cbm) |
49.6 |
| Overall Dimensions(L*W*H)(mm) |
12740*2480*3800 |
| Tank Dimensions(Inner Diameter*thickness*Length) |
2300*12*12372 |
| Estimated Tare Weight (kg) |
15300 |
| Payload(kg) |
20830 |
| Total Weight(kg) |
36132 |
| Wheelbase(mm) |
6800+1310+1310 |
| Shell of Tanker |
| Products |
Liquefied Petroleum Gas (propane) |
| Fluid Property |
Flammable |
| Design Temperature(℃) |
-19℃~50℃ |
| Design Pressure(MPa) |
1.61 |
| Corrosion Allowance(mm) |
1.00 |
| Weld Joint Factor |
1 |
| Major Materials of Bearing Pressure |
Tanker body:Q345R,12mm, |
| End plate:Q345R,12mm,double ellipse |
| Main beam:16Mn |
| Detection |
| Heat Treatment |
Overall treatment in a furnace,600℃ to 640 ℃ |
| Flaw Detection |
100% Flaw detection |
| Hydraulic Test(MPa) |
2.21 |
| Manhole (As Customer’s Requirement) |
| Quantity |
1;on top,DN450 |
| Safety Valve(As Customer’s Requirement) |
| Quantity |
2 |
| Location |
On the top of tanker |
| Size |
DN50 or As Customer’s Requirement |
|
Level Gauge
3*13T Fuwa
|
| Type |
Manuel rotation type |
| Location |
At the rear of the end plate |

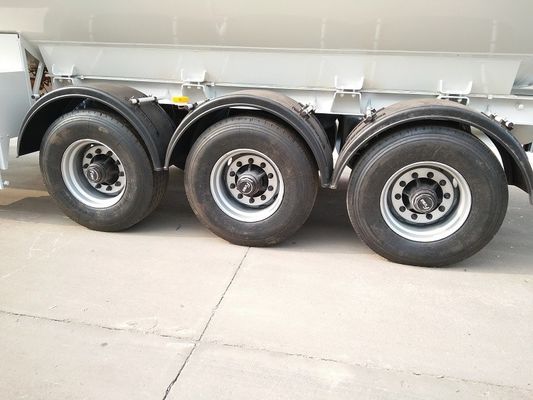

| Running System |
| Axles |
3*12T BPW brand |
| Tire |
12R22.5 Tubeless tire ,12 with one spare tire |
| Landing leg |
JOST |
| King Pin |
#50 or #90 |
| Control System |
| Emergency Cut-off Valves |
2 |
| Ball Valve |
2 |
| Liquid Gauge |
1 |
| Thermometer |
1 |
| Pressure Gauge |
1 |
| Accessories |
| Tool Box |
2 |
| Wheel Carrier |
1 |
| Fire Extinguisher |
2 |
| Fender |
6 |
| Paint |
As Customer’s Requirement |
How do we produce a lpg tanker trailer?
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
-
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
