High Performance Prime Mover Truck 6 X 4 10 Wheel SGS Certification

تصویر بزرگ : High Performance Prime Mover Truck 6 X 4 10 Wheel SGS Certification

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,BV,SGS
شماره مدل:	CLW4250

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

نام تجاری:	SINOTRUK، HOWO، CAMC، NORTH-BENZ، FOTON، SHACMAN،	اسب بخار:	336 اسب بخار، 371 اسب بخار، 420 اسب بخار، 450 اسب بخار ...
فرمان:	LHD، RHD، درایو چپ، فرمان راست	ظرفیت:	25ton,30ton.40ton,30t,40t
مدل رانندگی:	4X2،6X4،6 چرخ، 10 چرخ	رنگ:	سفید، آبی، زرد، قرمز و غیره
برجسته کردن:	tractor head trailer,10 wheeler tractor head , 10 wheeler tractor head

Sinotruk Howo 6X4 10-wheel 336HP Tractor Head 371HP 420HP Prime Mover

Product Description

Specifications of howo 6X4 371HP Tractor head/prime mover

Cabin	Driving type 6x4 LHD or RHD HOWO 76 Standard cabin,one sleeper bed, Air condition;70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	6800x2496x3360
	Wheel base (mm)	3225+1350
	Wheel track (front/rear) (mm)	2022/1830
	Approach/Departure angle(°)	16/20
Weight in KGS	Tare Weight	9210
	Hauling Capacity	49800
	Front axles loading capacity	HF7 1x7000
	Rear axles loading capacity	ST16 2x16000
Max. driving speed(km/h)		102
Engine	Brand	Sinotruk
	Model	WD615.47
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	371HP
	Emission standard	Euro Ⅱ
Gearbox	HW19710, Manual Transmission, 10 forwards & 2 reverse
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)	400
Tire	12R22.5,tubeless tire, 11 pieces including one spare tire
Special Process	Tropicalized area use
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Fifth wheel	2.0 or 3.5 inch

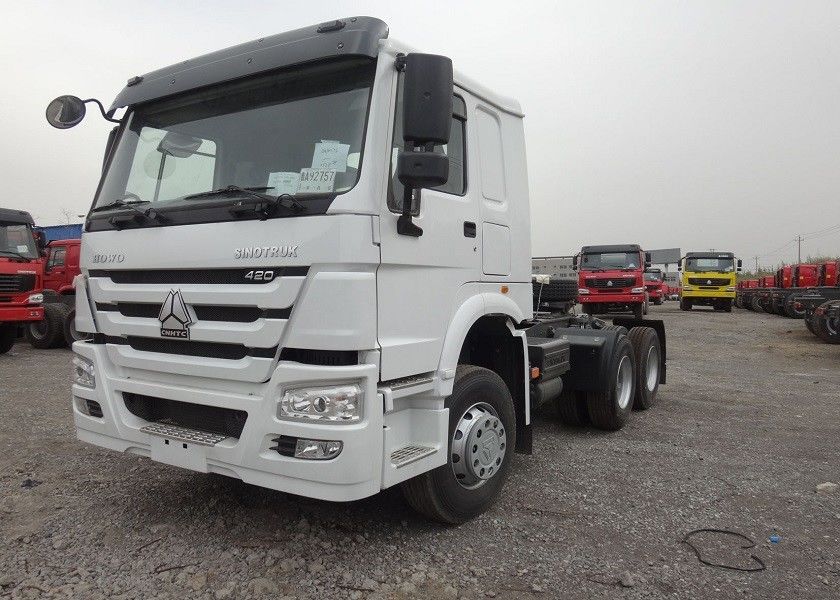

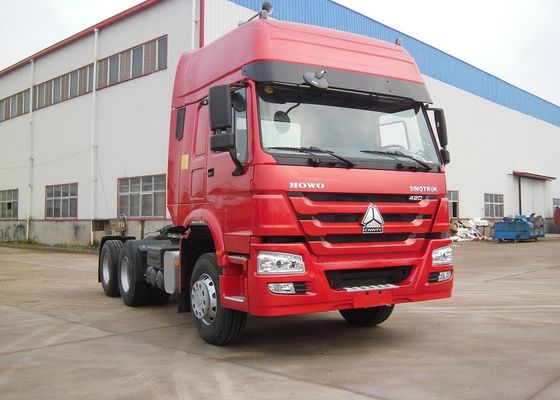

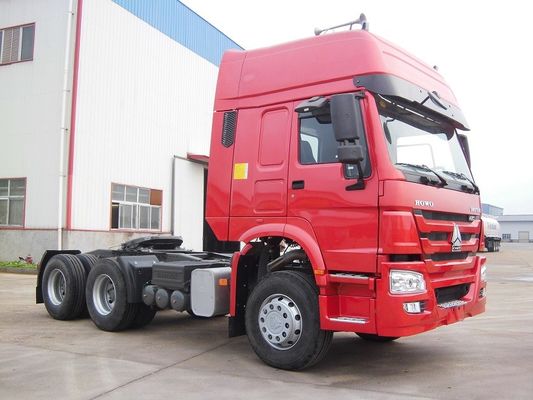

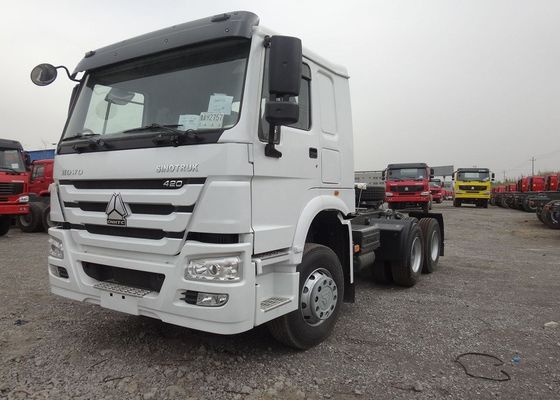

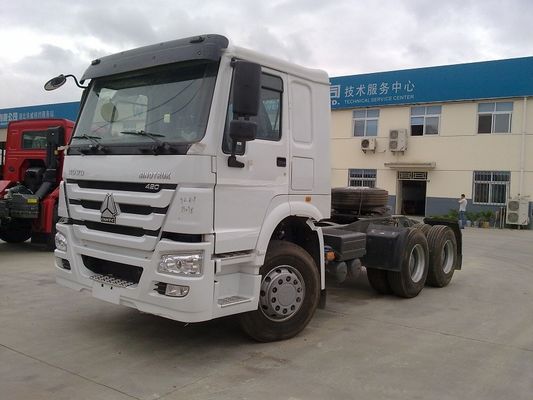

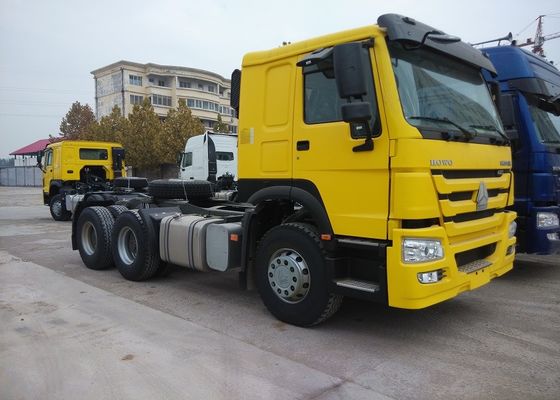

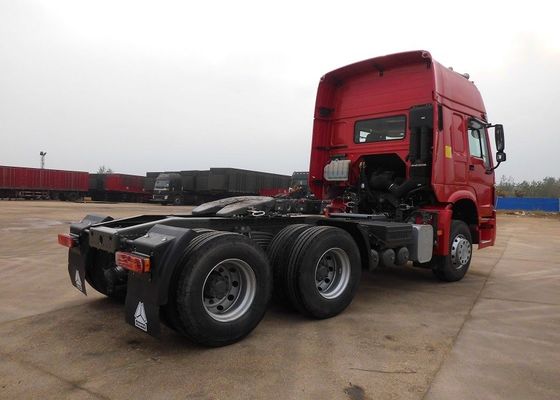

High Performance Prime Mover Truck 6 X 4 10 Wheel SGS Certification 0

High Performance Prime Mover Truck 6 X 4 10 Wheel SGS Certification 1

High Performance Prime Mover Truck 6 X 4 10 Wheel SGS Certification 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of tractor headI can order from your company?

A: There are various sizes and types of ftractor heads,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied tractor heads to any overseas companies?

A: Yes,we offered tractor heads to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
